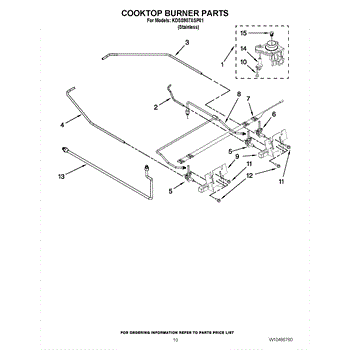

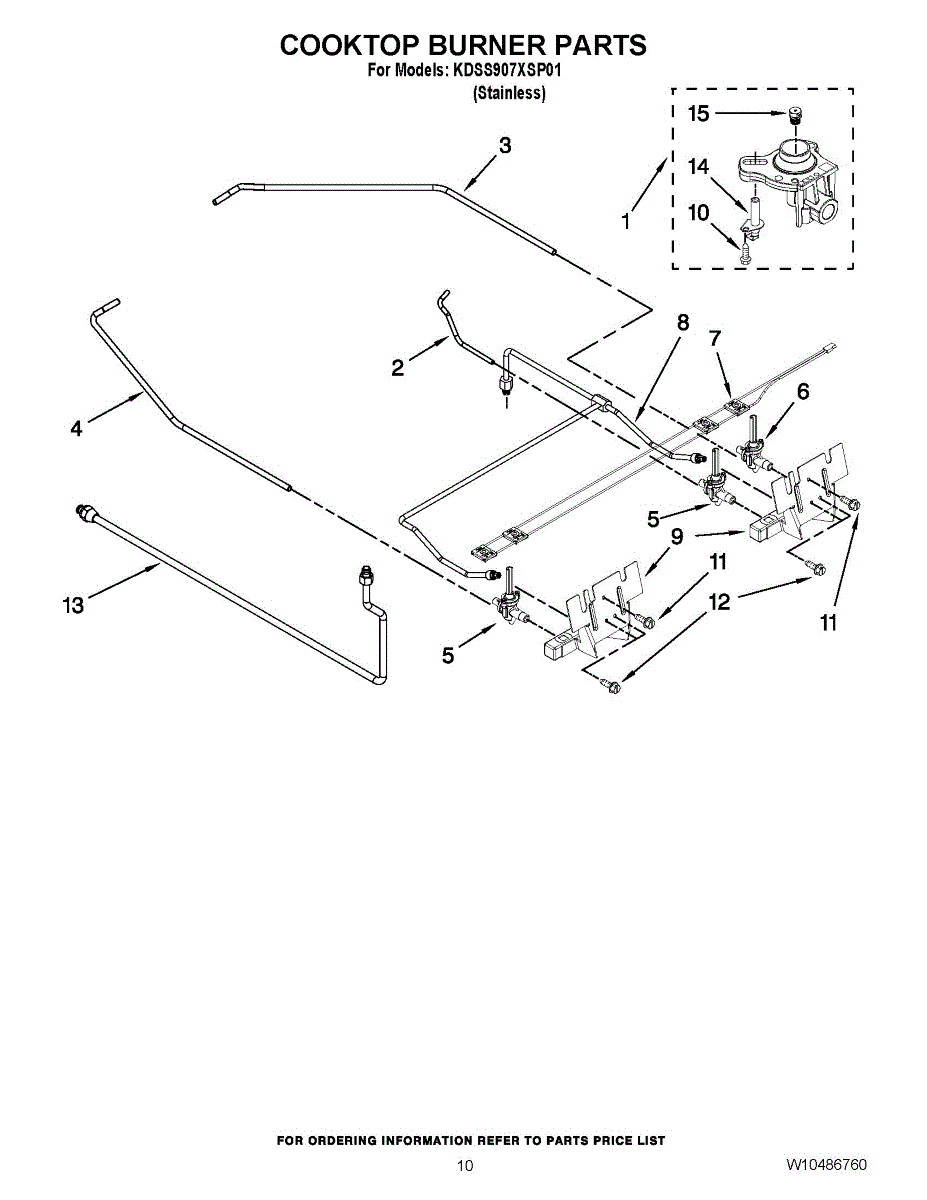

Parts for Kitchenaid KDSS907XSP01: 07 - Cooktop Burner Parts

This orifice holder secures the gas orifice in the G4 burner assembly so fuel flows correctly to the burner. It helps restore reliable ignition and a steady flame for safer, more consistent cooking. What it does:

• Holds the burner orifice in place to maintain correct fuel delivery to the burner.
• Helps correct ignition issues caused by a loose, misaligned, or damaged orifice holder.
• Promotes an even, stable flame and consistent heat across the burner.
• Used when burner flames are weak, uneven, or fail to light reliably.

• Turn off the appliance and shut off gas and electrical power before servicing. If you smell gas, stop.
• Remove burner grates and caps to access the orifice holder; reassemble components in original order.
• Inspect the orifice and threads for damage before installation; hand-tighten and avoid over-torquing.

This orifice holder assembly secures the gas orifice to the burner tube, helping maintain correct gas flow for reliable ignition and consistent, even burner flame performance on compatible gas ranges and cooktops. What it does:

• Positions and secures the burner orifice to ensure correct gas delivery to the burner.
• Helps maintain a steady, even flame and consistent heat output across burners.
• Common symptoms indicating replacement: burners fail to light, flame is weak or uneven, or ignition is delayed.
• Use when the holder is damaged, corroded, stripped, or not seating the orifice properly.

• Turn off the appliance's gas supply and power before servicing; follow local codes.
• Remove burner cap and grate, replace the holder, and hand-tighten securely—do not overtighten or cross-thread.
• Inspect the orifice and any seals or gaskets and replace if worn or damaged.
• After reinstalling, restore gas and power, confirm proper ignition and flame, and if you detect gas odor or unsafe operation, shut off gas.

This small burner valve controls gas flow to a single cooktop burner, restoring reliable ignition and flame control. Use when a burner won't light, has weak or uneven flame, or fails to respond to the control knob. What it does

• Regulates gas flow to the burner for proper ignition and flame adjustment
• Replaces a worn or leaking valve that can cause no flame or low/irregular flame
• Helps restore consistent heat output and safe burner operation
• Works with the range's control knob mechanism to open and close gas flow

• One small burner gas valve

• Disconnect power and shut off the household gas supply before servicing
• Only install on compatible appliances; follow OEM diagram and torque specs when available
• If you smell gas during testing or installation, stop.

This replacement gas burner valve controls gas flow to a large surface burner, restoring proper flame control and reliable heating for gas ranges. Designed to match OEM fit and function for direct replacement. What it does

• Regulates gas flow to a large cooktop burner so the flame lights and holds steady
• Restores normal heat output when a burner won't light or produces a weak/uneven flame
• Works with the cooktop's control knob to adjust flame size safely and predictably
• Helps stop intermittent gas flow that can cause poor cooking performance

• Turn off the appliance's gas supply and electrical power before starting work.
• Replace only with the exact part; follow OEM instructions.
• Check all connections for proper seal after installation; test operation at low flame first.

This wire harness connects the control/switch assembly to the appliance's thermal cutoff and control circuits, restoring reliable electrical connections for proper operation. It's a direct-fit replacement when the original wiring is damaged or corroded. What it does:

• Provides the factory routing and connectors between the control/switch and TCB/thermal cutoff
• Re-establishes lost or intermittent power caused by damaged wiring or broken terminals
• Helps stop failures that cause controls to be unresponsive or cycles to stop unexpectedly
• Uses OEM-style terminals and insulation to match original fit and function

• One wire harness (switch TCB) as shown

• Disconnect power before starting — verify the appliance is completely de-energized
• Take photos of existing wire routing and connector locations to ensure correct reassembly
• Plug connectors fully and secure the harness along original clips or tie points; avoid sharp edges
• If terminals are damaged at mating parts, inspect and replace those components rather than splicing connectors

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This surface burner spark igniter creates the electric arc that lights the gas flame on your cooktop or range. Replacing a worn or cracked electrode restores reliable ignition and helps resolve hard-to-light burners and intermittent sparking.

• Provides a high-voltage spark at the surface burner to ignite gas
• Mounts to the orifice holder beneath the burner head
• Failure symptoms include burner not lighting, needing a match, or intermittent/weak spark
• Common issues: chipped/cracked ceramic insulator or damaged terminal/lead

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove grates, burner caps, and heads to access the orifice holder
• Transfer the ignition lead, install the new electrode, and route the wire away from heat and sharp edges
• Ensure the tip is positioned near the burner as designed; verify spark and ignition before reassembly

Orifice meters gas flow to a cooktop or range burner, helping maintain correct flame size and reliable ignition. Replacing a clogged or damaged orifice restores consistent heat and more stable burner performance. What it does:

• Meters and controls the gas flow to a single burner so the flame burns at the proper height.
• Helps maintain steady ignition and even heating across the burner.
• Common symptoms indicating replacement: weak or uneven flames, difficulty lighting, or burners that won't stay lit.
• Clogged by debris or corroded over time, causing restricted gas flow.

• Turn off the appliance power and shut off the gas supply before attempting any service.
• Verify the correct orifice size and gas type for your appliance using the OEM diagram; use proper seals and avoid overtightening.
• If you smell gas, stop immediately, ventilate the area.
