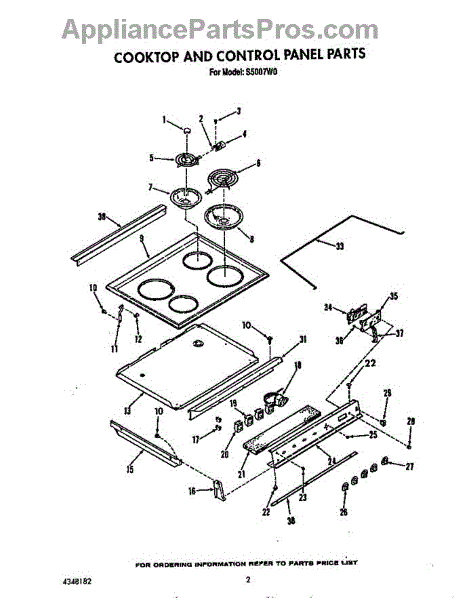

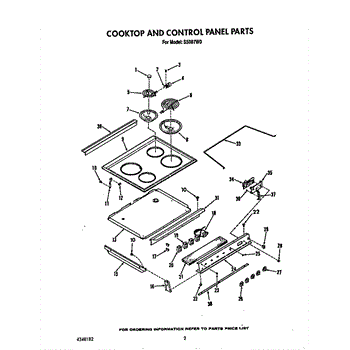

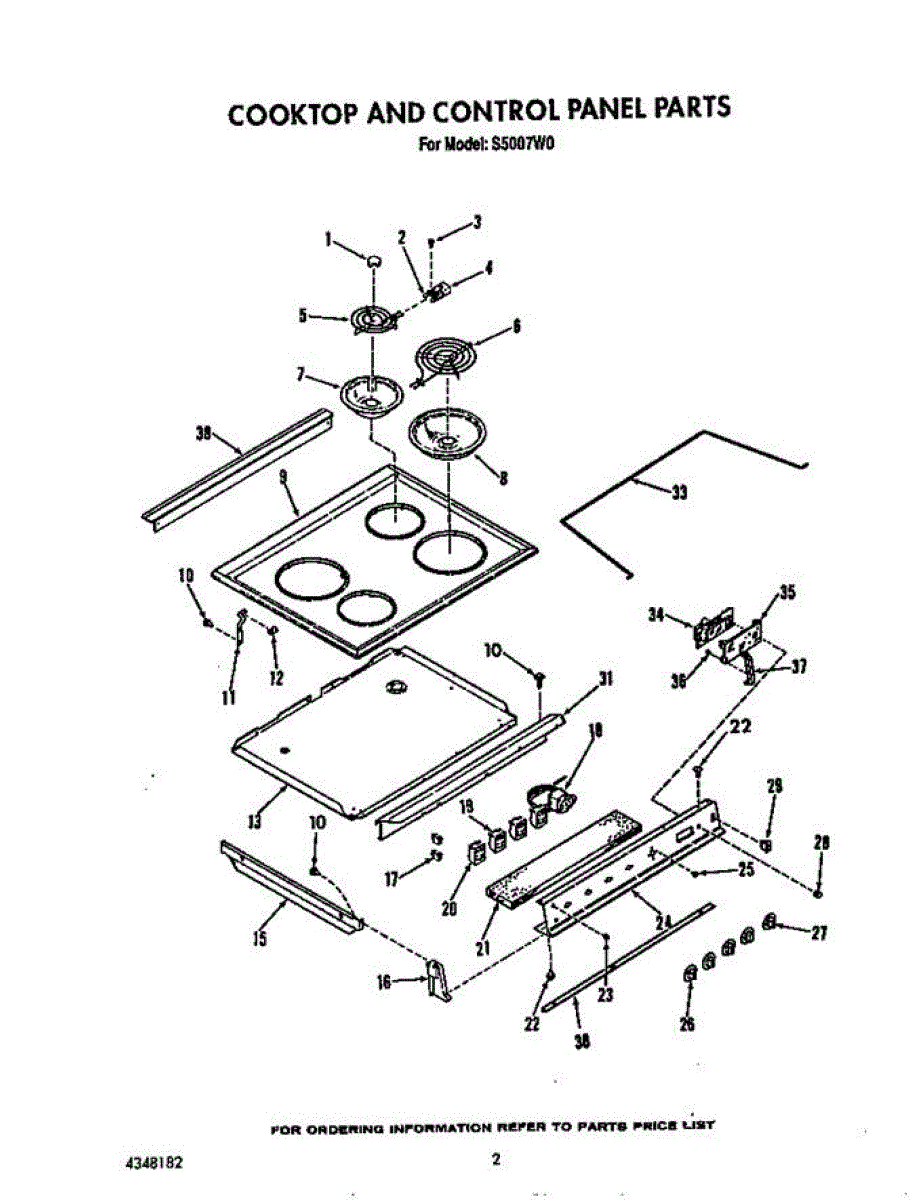

Parts for Roper S5007W0: Cooktop And Control Parts

This mounting bracket secures the surface element terminal block to the cooktop. Replacing a bent or missing bracket helps keep the coil element connection aligned and stable so the burner plugs in firmly during use.

• Provides a fixed mount for the surface element receptacle beneath the burner opening
• Helps prevent the terminal block from shifting, sagging, or rotating when inserting/removing the element
• Common symptoms include a loose or wobbly receptacle, element not seating fully, or visible bracket damage/missing bracket
• Replace if the bracket is bent, broken, or cannot hold the receptacle in position

• Disconnect power at the breaker and allow the cooktop to cool completely
• Remove the surface element and lift/open the cooktop to access the terminal block area
• Transfer the receptacle/terminal block onto the new bracket and secure with existing hardware, ensuring correct alignment
• The element prongs insert smoothly before restoring power

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Surface Element is an OEM part for Whirlpool ranges. This part provides heat to the cooking surface, allowing for the preparation of food.

Common causes of a bad surface element include electrical faults, physical damage from heavy cookware, or degradation from constant heating and cooling cycles.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage such as burns or breaks in the coil
• Sparking or unusual noises when the element is turned on

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The 8-inch large Surface Element is an OEM replacement part for Whirlpool induction ranges. It serves as an integral independent heating zone to boil, sauté or simmer large pots quickly.

Symptoms of a bad surface element include:

• Inability to power on or heat evenly across the surface
• Slow inconsistent heating or hot/cold zones developing
• Parts of the coil visibly cracked or disconnected
• Tripped circuit breakers upon heat-up that don't reset

Causes stem from normal thermal stress fatigue of coiled elements exceeding thousands of temperature cycles daily. Continuous high wattage energy may cause microscopic metal deterioration developing over a decade plus of use.

This genuine Whirlpool replacement part is compatible with Kenmore, Roper and Jenn-Air ranges.

For matching 6-inch element order WP660532.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

The Drip Pan (LG) is an OEM replacement part for Whirlpool ranges and ovens. It is a durable metal tray designed to catch any spills, drips, or boil-overs that may occur during the cooking process, helping to keep the oven cavity clean and preventing potential messes or smoke from burnt-on spills.

Symptoms of needing to replace the drip pan include:

• Warping or discoloration from excessive heat exposure
• Cracks or breaks in the pan material
• Difficulty sliding the pan in and out of its designated position

Causes of a drip pan failure can include general wear and tear from repeated use and high temperatures, physical damage from impact or abrasion, or corrosion or deterioration due to exposure to acidic food spills or cleaning agents.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For 6-inch drip bowl order W10196406RW

ST10-16 X 7/16"

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

The Infinite Switch is an OEM part for Whirlpool cooktops and ranges, designed to control the temperature of the burners. This critical component allows for the precise adjustment of heat levels, providing the flexibility needed for various cooking tasks, from simmering sauces to boiling water.

Causes of these symptoms can vary from electrical issues within the switch, such as faulty contacts or internal components, to physical damage from wear and tear or overheating. It's essential to address these issues promptly to maintain the safety and functionality of your cooktop or range.

Symptoms of a bad Infinite Switch include:

• Burners not heating to the set temperature
• Inability to adjust the heat level of the burner, resulting in it being stuck on high, low, or off
• The burner not turning on at all

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Infinite Switch is an OEM part for Whirlpool cooktops and ranges, designed to control the temperature of the burners. This critical component allows for the precise adjustment of heat levels, providing the flexibility needed for various cooking tasks, from simmering sauces to boiling water.

Causes of these symptoms can vary from electrical issues within the switch, such as faulty contacts or internal components, to physical damage from wear and tear or overheating. It's essential to address these issues promptly to maintain the safety and functionality of your cooktop or range.

Symptoms of a bad Infinite Switch include:

• Burners not heating to the set temperature
• Inability to adjust the heat level of the burner, resulting in it being stuck on high, low, or off
• The burner not turning on at all

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets

Color: Black
