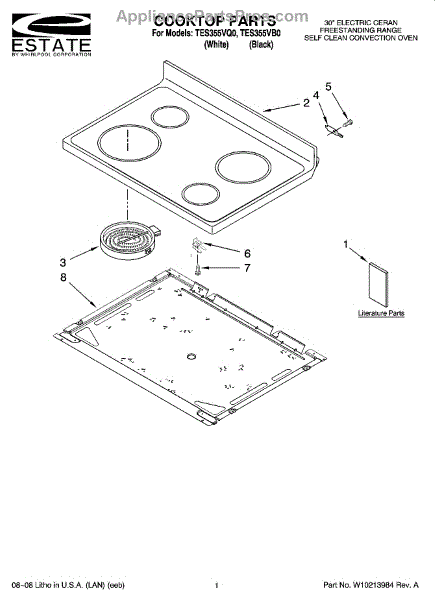

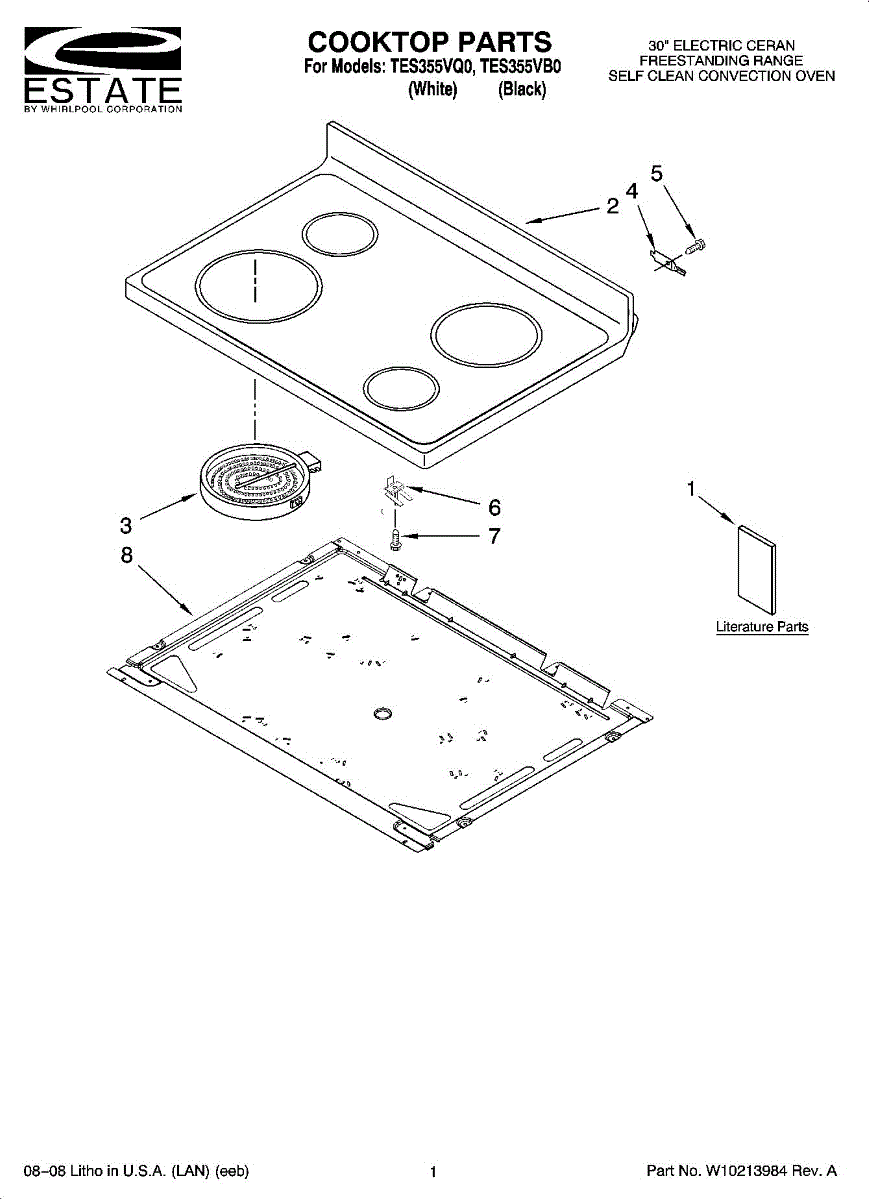

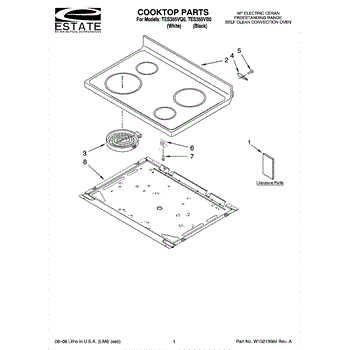

Parts for Estate TES355VB0: 01 - Cooktop Parts

Color: White

Color: Black

This 2000-watt surface heating element restores steady, responsive heat to a cooktop burner. Replace a weak or failed element to bring back quick heat-up and even, consistent cooking performance. What it does:

• Supplies up to 2000 watts of heat to the selected burner zone
• Works with the surface control to achieve and maintain set temperatures
• Common fix for: burner not heating, slow or uneven heating, or intermittent operation
• Replace if the element shows visible damage such as cracks, blistering, or burned spots

• 1 surface heating element (2000W)

• Disconnect power at the breaker and allow the cooktop to cool fully before servicing
• Lift/remove the cooktop to access the element; handle the glass carefully
• Move wires and any mounting clips from the old element to the new one, one connection at a time, matching positions
• Secure connections before reassembly; if issues persist, inspect the surface switch and wiring harness

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This 6-32 machine screw is a direct-fit fastener used to secure appliance panels and components. It provides a reliable replacement for stripped or missing screws to restore proper fit and reduce vibration or looseness. What it does:

• Secures panels, brackets, and internal components to keep parts aligned and stable
• Restores proper fastening when original screws are missing, stripped, or damaged
• Helps eliminate rattling or movement caused by loose fasteners
• Compatible with metal-to-threaded-hole connections that use 6-32 hardware

• Use the correct driver and avoid over-tightening to prevent stripped threads or damaged components
• Disconnect power and follow appliance safety guidelines before servicing
• If threads are damaged, replace both screw and any damaged insert or nut as needed
