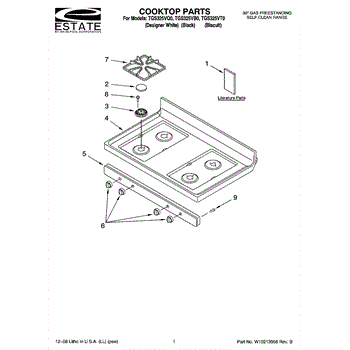

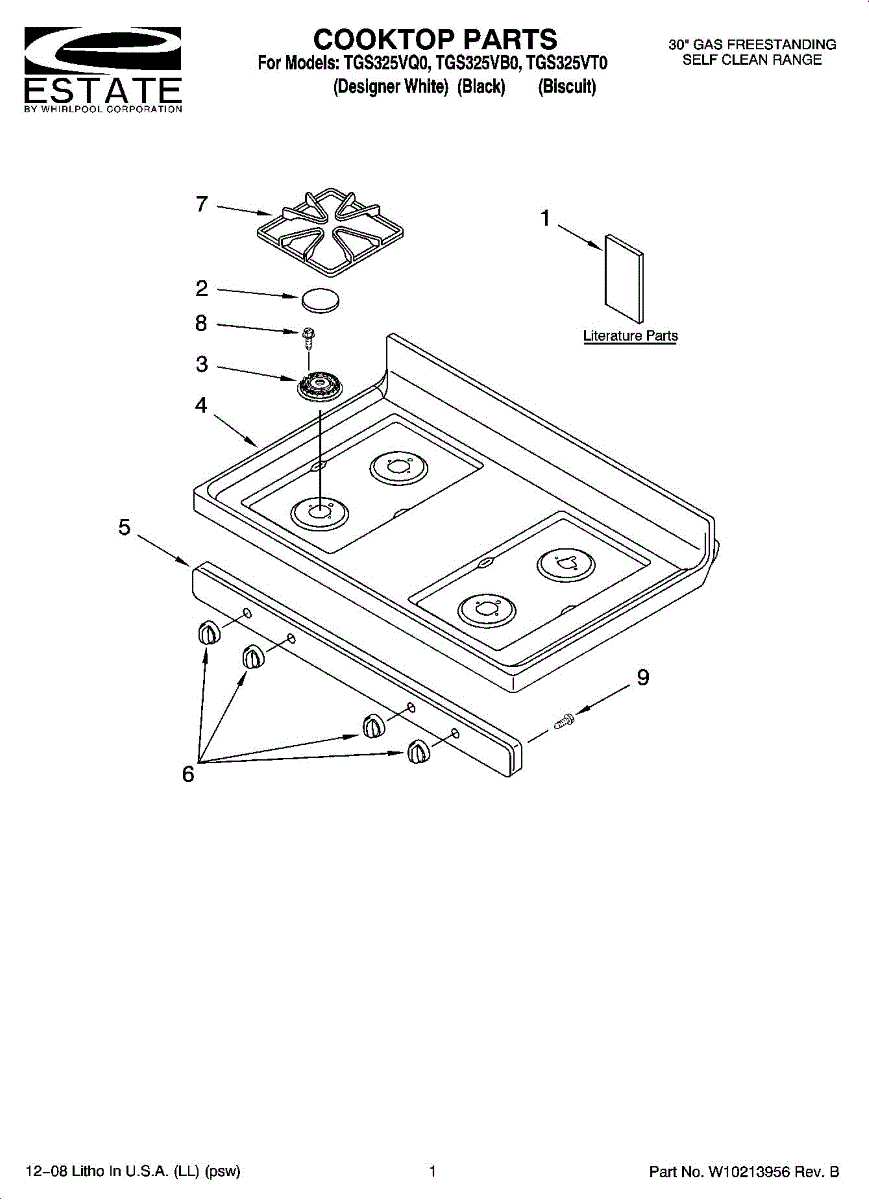

Parts for Estate TGS325VB0: 01 - Cooktop Parts

Color: Grey

Color: Grey

Color: Black

The Surface Burner Cap is an OEM replacement part designed for Whirlpool gas ranges. This component covers and protects the burner head, helping to evenly distribute the flame for consistent cooking heat. It also shields the burner from debris and prevents clogs that could impede performance.

Over time, burner caps can suffer from regular wear and tear, high heat exposure, or damage from accidental impact.

Color: Black

Symptoms of a faulty surface burner cap include:

• Uneven or inconsistent flame pattern
• Difficulty igniting the burner
• Visible cracks, warping, or discoloration
• Poor fitting, leading to debris buildup around the burner head

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

Color: Biscuit.

Color: White

Color: Black

Color: Black.

Color: Biscuit.

Color: White.

The Control Knob is an OEM part for Whirlpool ranges and cooktops. It allows users to adjust the heat levels of the burners, providing precise control over cooking temperatures.

Causes of a bad control knob can include regular wear and tear, accidental impact causing cracks or breaks, or the inner mechanism wearing out, making it difficult to control the burner settings accurately.

Symptoms of a bad control knob include:

• The knob not turning or being difficult to turn
• The knob feeling loose or wobbly
• Inaccurate heat level adjustments
• The knob not staying in place or slipping

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Control Knob is an OEM part for Whirlpool ranges and ovens. It allows the user to control the oven temperature or the heat level of the burners, making it an essential component for cooking precision.

Causes of a bad control knob can include regular wear and tear, physical damage such as cracking or breaking from impact, or the internal mechanism becoming stripped, which prevents it from engaging the control shaft properly.

Symptoms of a bad control knob include:

• Difficulty turning the knob
• The knob not staying in place
• Inconsistent temperature control
• The knob feeling loose or spinning freely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Control Knob is an OEM replacement part for Whirlpool gas ranges. It is the manually operated rotary component that selects cooking features and temperature settings on the stovetop burners. Measures about 2 inches in diameter. For white order WP8273104. For biscuit order WP8273106.

Causes of a bad control knob include normal wear of internal components over extensive cooking cycles. Stripping or deterioration of the knurled gripping surface also reduces functionality.

Symptoms of a failed control knob involve:

• Difficulty in turning or fully engaging desired burners
• Loose, detached, or misaligned positioning on the control panel
• Inaccurate burner selection leading to scorched pans or undercooked meals
• Knob continuously self-adjusting from intended temperature settings

Compatible brands include KitchenAid, Jenn-Air, and some Kenmore gas ranges and cooktops as well.

This cooktop grate kit replaces damaged or worn grates to restore stable, even support for pots and pans on a gas range. It helps maintain proper burner performance and keeps cookware level during cooking. What it does:

• Provides a sturdy surface for cookware so pots and pans sit flat and stable over burners
• Protects the cooktop surface from spills and direct flame contact
• Restores proper cookware alignment if existing grates are warped, chipped, or heavily worn
• Helps reduce wobble and improves cooking consistency when grates are compromised

• Turn burners off and allow the cooktop to cool completely before removing or installing grates
• Lift old grates straight up; install new grate pieces so they sit flush and stable over each burner
• No special tools typically required, but follow your range manual for any model-specific steps

Replace worn or damaged cooktop grates with this grate kit to restore a stable, level platform for your pots and pans. It helps maintain safe, consistent pan support and keeps your range or cooktop looking and performing its best. What it does:

• Supports cookware above the burners at the correct height
• Restores level, stable pan support when grates are cracked, warped, or missing
• Helps reduce rocking or tipping of pots and pans
• Common signs it's needed: chips or cracks, grates won't sit flat, unstable cookware

• One grate kit

• Turn off all burners and allow the appliance to cool completely before handling
• Lift off old grates; clean support ledges and burner surrounds
• Position new grates per the burner layout; ensure they sit level and centered
• Verify pan stability before cooking

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
