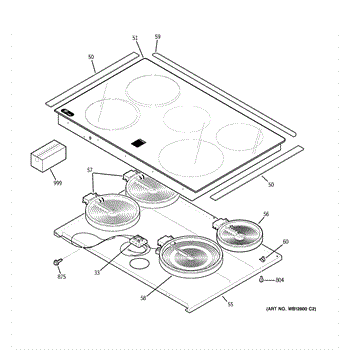

Parts for Ge JD900BK3BB: 02 - Cooktop Parts

This indicator light module controls the status lights on your range or cooktop, providing clear visual alerts during operation. Replace it to restore reliable, easy-to-see indicators for key functions. What it does:

• Illuminates key status indicators on the appliance's control area
• Helps when functions are active and when conditions require attention
• Common symptoms: lights do not illuminate, stay on continuously, flicker intermittently, or show heat-related damage
• Direct replacement restores normal indicator operation

• Includes: 1 indicator light module

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the module from the control area per your model's service information; note screw and wire locations
• Transfer connectors one at a time to the new module, secure it, reassemble, and test

This right-hand main top gasket seals and cushions the cooktop's right edge. It helps keep spills and debris out of the chassis and keeps the main top seated securely without rattles or metal-on-metal contact.

• Creates a seal between the main top and side frame on the right-hand side
• Helps prevent liquids and crumbs from entering the cabinet beneath the top
• Reduces vibration and rubbing for a quieter, more secure fit
• Replace if torn, flattened, missing, or no longer stays in place
• Common signs: visible gap on the right edge, top not sitting flush, rattling, or spills leaking below

• Disconnect power; shut off gas and allow the surface to cool completely
• Raise or remove the main top per your model's service instructions
• Remove the old gasket and residue; clean and dry the mating surface
• Position the new gasket on the right side; avoid stretching, press firmly, then reassemble and verify alignment

This maintop gasket seals the left side of the range cooktop to the chassis, helping contain spills and fumes and ensuring a snug, stable fit. Replace a worn gasket to restore a clean seal and easier cleanup. What it does:

• Seals the left edge of the cooktop/main top to the range body
• Helps contain spills and moisture to prevent leaks below the top
• Maintains proper fit and reduces vibration or rattling
• Replaces torn, flattened, or missing gasket along the left side

• 1 left-hand maintop gasket

• Disconnect power; for gas models, also shut off gas. Allow all surfaces to cool.
• Lift or remove the maintop to access the gasket channel.
• Remove the old gasket and residue. Align the new gasket on the left side without stretching; press fully into place.
• Reassemble and verify an even seal before returning the appliance to service. Use cut-resistant gloves—sheet metal edges can be sharp.

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

The Radiant Stovetop Element is an OEM part for GE electric ranges. It is designed to provide consistent and even heat for cooking. This element sits beneath the glass or ceramic cooktop surface and heats up when electricity flows through it, allowing you to cook food efficiently.

Over time, the radiant stovetop element can wear out or become damaged due to frequent use, power surges, or accidental impact. A faulty element can affect cooking performance and may pose a safety risk.

Symptoms of a bad radiant stovetop element include:

• The element not heating up
• Uneven heating or hot spots
• Visible damage such as cracks or burns
• The element cycling on and off erratically

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This radiant surface element fits a 9-inch dual burner on glass-ceramic cooktops. It restores proper heating and lets you choose inner or full-ring heat, bringing back fast response and even cooking performance when the original element fails.

• Provides radiant heat to the glass cooktop burner area
• Dual design offers two selectable heating zones using inner and outer coils
• Typical failure symptoms: no heat, heats only on one ring, uneven/slow heating, or won't regulate
• Visible breaks or burned areas on the element coil indicate replacement is needed

• Disconnect power at the breaker before servicing; allow the cooktop to cool completely
• Lift/remove the glass top to access the element; handle glass carefully
• Note wire positions; transfer any mounting brackets/clips from the old element to the new one
• Avoid flexing the element or touching the heating surface with bare hands; verify diameter and terminal layout match the original before reassembly

This maintop gasket seals the top maintenance panel on over-the-range units to help keep grease, steam and cooking residue out of internal cavities. Replacing a worn gasket restores a snug seal and helps prevent odors and buildup. What it does:

• Seals the maintop/upper cavity to limit grease, steam and debris from entering internal components
• Helps reduce rattling or gaps caused by a deteriorated or compressed gasket
• Maintains intended airflow paths and helps keep the oven/microwave interior cleaner
• Common symptom: visible wear, cracks or a compressed gasket edge allowing leakage or noise

• One maintop gasket

• Disconnect power to the appliance before starting any work
• Access usually requires removing the maintop/upper cover—keep fasteners organized
• Clean mating surfaces before installing the new gasket and press into place per OEM alignment; avoid stretching the gasket
• If adhesive or clips are used, replace only with the correct part number to ensure a proper fit

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
