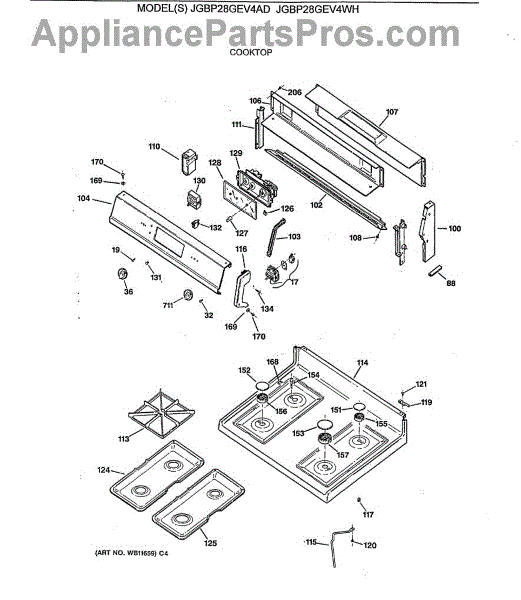

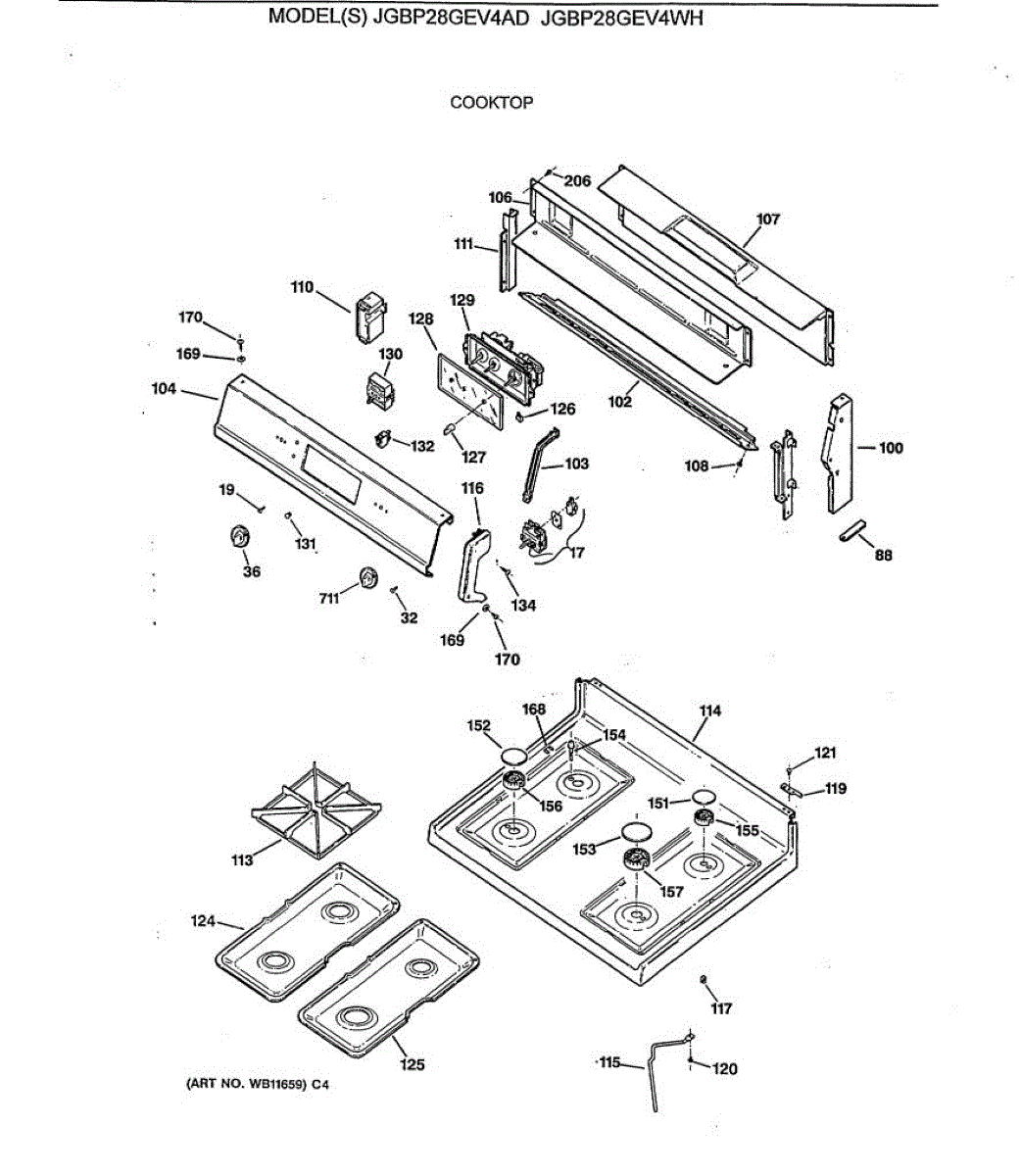

Parts for Ge JGBP28GEV4AD: 02 - Cooktop Parts

Replacement mounting screw that secures the thermostat assembly to your range cabinet. Replace if stripped, missing, or damaged during repair work.

Replacement mounting screw for ranges. Secures panels, brackets, and internal components. Install if original screw is stripped, missing, or damaged.

Replace worn felt pad gasket to prevent heat loss and reduce noise in your range. Cushions components and ensures proper sealing. Confirm fit with model number.

Replace your range's control panel end cap if the original is cracked, broken, or missing. This trim piece installs on the right side of the panel.

Left end cap cover for ranges. Replaces worn, cracked, or missing outer trim piece. Restores finished appearance and protects internal components.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Protective wire cover for range burner igniter wires. Replaces cracked, broken, or missing covers. Shields wiring from damage inside the range cabinet.

Top support plate for gas ranges. Mounts beneath the cooktop surface to provide structural reinforcement. Replace if cracked, bent, or damaged.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

The Clock Knob Kit is an OEM replacement part for GE ranges. It contains the necessary knobs to control clock and timer functions from the control panel. This 3 pack of range clock knobs is all you need to cover one timer control. Color: Black. Each kn

Covers the control panel lamp opening to diffuse light and protect from debris. Replace if broken, cracked, or missing to restore clear indicator visibility.

Fix burners that won't light or click continuously. This igniter electrode sparks to light gas burners. Easy 5-10 minute repair with a screwdriver.

This small metal clip secures the surface burner spark electrode to its bracket or burner base, holding the tip at the proper gap for reliable ignition. Replace a missing, bent, or corroded clip to help restore consistent sparking.

• Holds the surface burner spark electrode firmly in position near the burner head
• Maintains correct alignment and gap so the igniter can spark to the burner
• Can help with delayed ignition, intermittent sparking, or a burner that won't light
• Typical signs include a loose/wobbly electrode, visible damage, or a missing clip

What's included: 1 mounting clip Install notes:

• Disconnect power and shut off gas before servicing
• Lift the cooktop or remove burner components to access the electrode; note clip orientation
• Transfer the electrode into the new clip and seat the clip securely in its bracket or base
• Avoid stressing the electrode's ceramic insulator; verify the tip is aimed at the burner rim and test ignition

Clear washer for range assembly and mounting applications. Replaces worn, cracked, or missing washers in your range. Essential hardware component.

Size: 10-32 GXTT FLP.595 S
