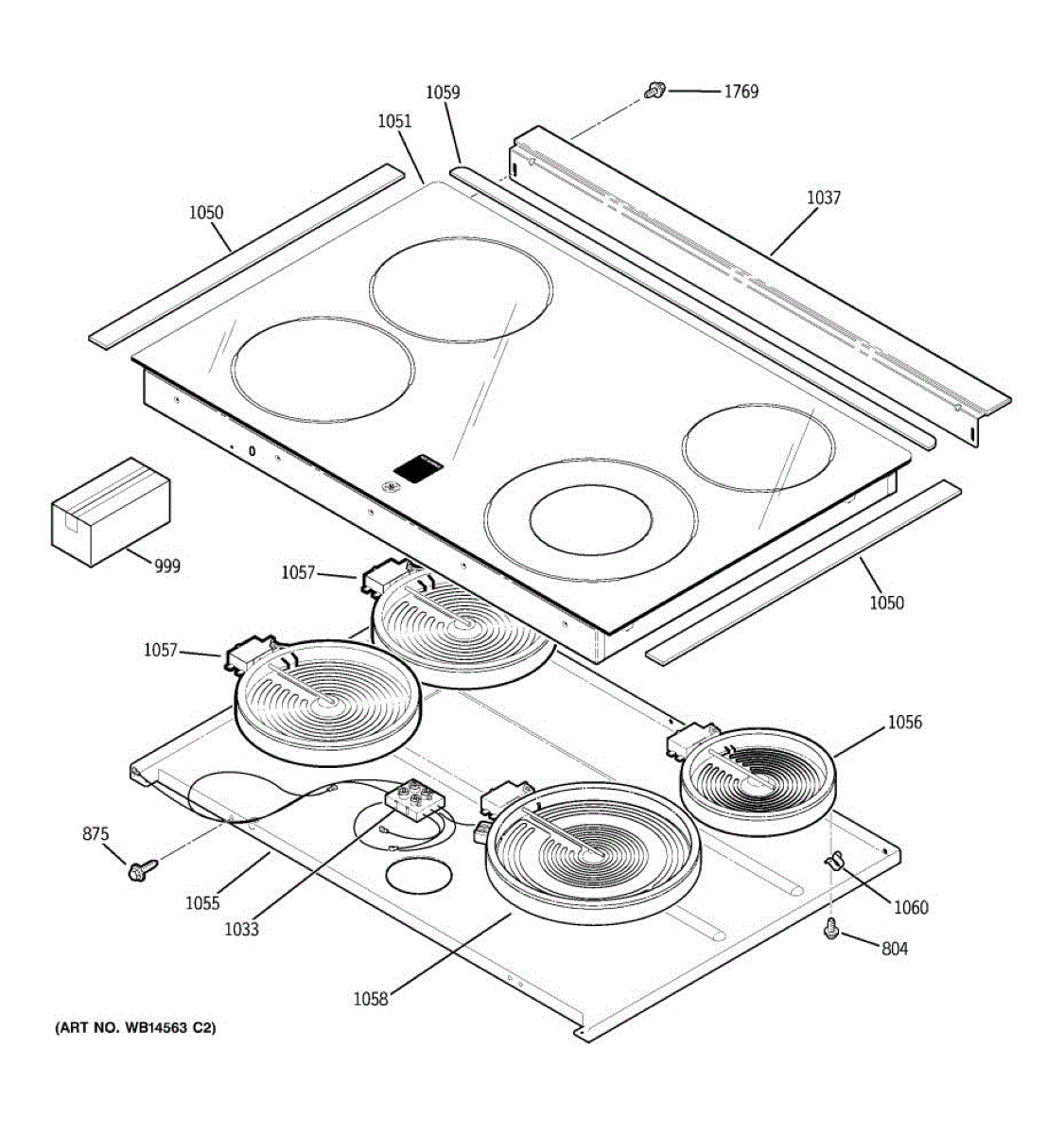

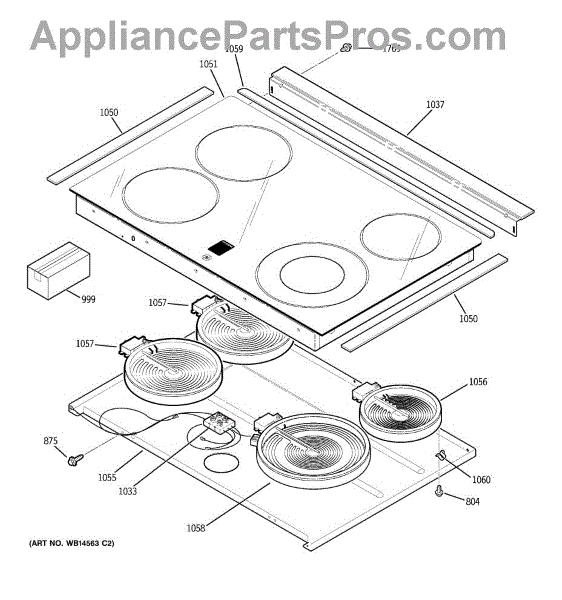

Parts for Ge JSP42DN1BB: 02 - Cooktop Parts

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

This indicator light module controls the status lights on your range or cooktop, providing clear visual alerts during operation. Replace it to restore reliable, easy-to-see indicators for key functions. What it does:

• Illuminates key status indicators on the appliance's control area
• Helps when functions are active and when conditions require attention
• Common symptoms: lights do not illuminate, stay on continuously, flicker intermittently, or show heat-related damage
• Direct replacement restores normal indicator operation

• Includes: 1 indicator light module

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the module from the control area per your model's service information; note screw and wire locations
• Transfer connectors one at a time to the new module, secure it, reassemble, and test

This right-hand main top gasket seals and cushions the cooktop's right edge. It helps keep spills and debris out of the chassis and keeps the main top seated securely without rattles or metal-on-metal contact.

• Creates a seal between the main top and side frame on the right-hand side
• Helps prevent liquids and crumbs from entering the cabinet beneath the top
• Reduces vibration and rubbing for a quieter, more secure fit
• Replace if torn, flattened, missing, or no longer stays in place
• Common signs: visible gap on the right edge, top not sitting flush, rattling, or spills leaking below

• Disconnect power; shut off gas and allow the surface to cool completely
• Raise or remove the main top per your model's service instructions
• Remove the old gasket and residue; clean and dry the mating surface
• Position the new gasket on the right side; avoid stretching, press firmly, then reassemble and verify alignment

This maintop gasket seals the left side of the range cooktop to the chassis, helping contain spills and fumes and ensuring a snug, stable fit. Replace a worn gasket to restore a clean seal and easier cleanup. What it does:

• Seals the left edge of the cooktop/main top to the range body
• Helps contain spills and moisture to prevent leaks below the top
• Maintains proper fit and reduces vibration or rattling
• Replaces torn, flattened, or missing gasket along the left side

• 1 left-hand maintop gasket

• Disconnect power; for gas models, also shut off gas. Allow all surfaces to cool.
• Lift or remove the maintop to access the gasket channel.
• Remove the old gasket and residue. Align the new gasket on the left side without stretching; press fully into place.
• Reassemble and verify an even seal before returning the appliance to service. Use cut-resistant gloves—sheet metal edges can be sharp.

This is a maintop glass assembly for a range. It is square in shape, with a flat top. The coils/eyes rest underneath the glass surface. The main purpose of this component is to provide support for pots and pans during the cooking process and to transfer heat. A cooktop may need to be replaced if the surface is cracked, chipped, or otherwise damaged. Continuing to use a damaged glass cooktop is dangerous. To replace the maintop glass assembly, first unplug the oven from the wall. For this job, a Phillips head screwdriver is needed to remove the old cooktop and secure the new one. In the event that the old cooktop shattered, make sure to vacuum up any glass shards that might be present.The maintop glass assembly replacement is made specifically for General Electric ranges. It is sold as a single unit, and It is an authentic OEM replacement part that is directly sourced from the manufacturer.

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

The Radiant Stovetop Element is an OEM part for GE electric ranges. It is designed to provide consistent and even heat for cooking. This element sits beneath the glass or ceramic cooktop surface and heats up when electricity flows through it, allowing you to cook food efficiently.

Over time, the radiant stovetop element can wear out or become damaged due to frequent use, power surges, or accidental impact. A faulty element can affect cooking performance and may pose a safety risk.

Symptoms of a bad radiant stovetop element include:

• The element not heating up
• Uneven heating or hot spots
• Visible damage such as cracks or burns
• The element cycling on and off erratically

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Radiant 9 Dual is an OEM part for GE cooktops and ranges. It provides the heating surface for cooking and is designed to offer two different heating zones, allowing for versatile temperature control depending on the size of the cookware.

Causes of a bad element radiant can include burnouts from excessive use, damage due to spills or impacts, and electrical issues. A faulty heating element can result in uneven cooking or the element failing to heat up at all.

Symptoms of a bad Element Radiant 9 Dual include:

• The element not heating or only partially heating
• Uneven heating across the surface
• Visible damage or discoloration on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This maintop gasket seals the top maintenance panel on over-the-range units to help keep grease, steam and cooking residue out of internal cavities. Replacing a worn gasket restores a snug seal and helps prevent odors and buildup. What it does:

• Seals the maintop/upper cavity to limit grease, steam and debris from entering internal components
• Helps reduce rattling or gaps caused by a deteriorated or compressed gasket
• Maintains intended airflow paths and helps keep the oven/microwave interior cleaner
• Common symptom: visible wear, cracks or a compressed gasket edge allowing leakage or noise

• One maintop gasket

• Disconnect power to the appliance before starting any work
• Access usually requires removing the maintop/upper cover—keep fasteners organized
• Clean mating surfaces before installing the new gasket and press into place per OEM alignment; avoid stretching the gasket
• If adhesive or clips are used, replace only with the correct part number to ensure a proper fit

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
