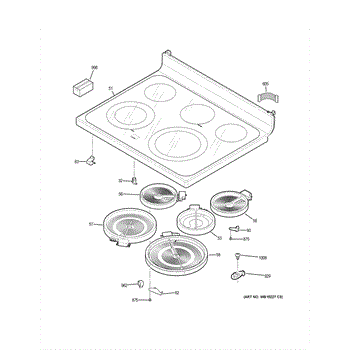

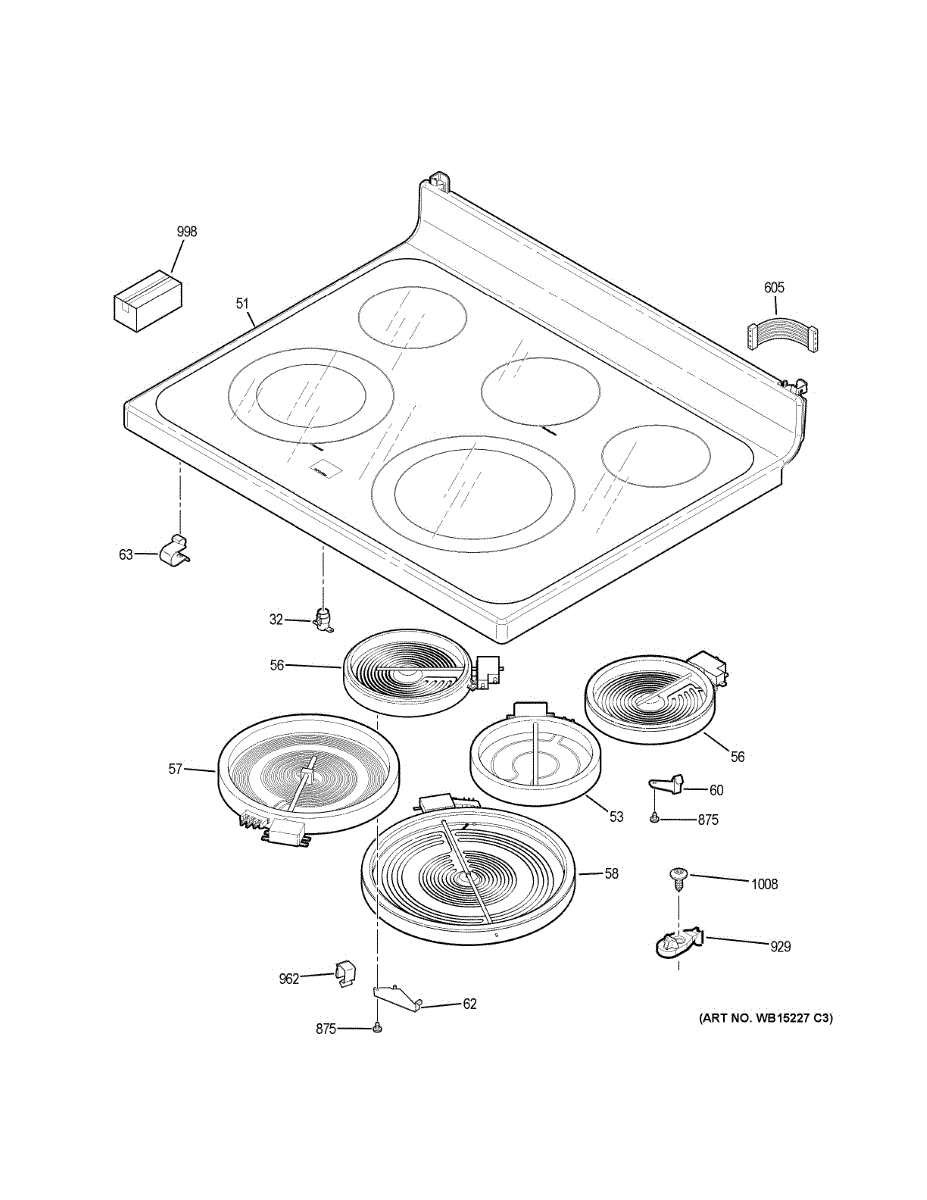

Parts for Ge JB650DF2CC: Cooktop Parts

This indicator light is a small panel-mounted lamp that illuminates to show when a heating circuit is active. Replacing a failed indicator restores a clear visual cue so you know when the appliance is operating. What it does

• Lights when the corresponding function or element is energized
• Provides a visual status cue during operation
• Common symptoms: light won't come on, stays on continuously, flickers or is dim, or shows physical damage

• One indicator light assembly

• Disconnect power at the breaker before servicing
• Access the rear of the console/control area; note wire positions and transfer one at a time
• Secure the new light in the panel opening per design (snap-in or nut-mounted)
• Restore power and test operation before reassembly

The Element Radiant 6 Warmer is an OEM component specifically designed for GE electric ranges. This element plays an important role in warming plates and keeping cooked foods hot until serving.

Symptoms of a bad radiant warmer element include:

• Inability to maintain an elevated temperature on the warmer oven surface
• Fluctuating or uncontrolled warming temperatures
• Burning or scorching of foods left on the warmer for extended periods

Causes of failure can be cracking or breakage of the heating coils over time, insulation damage allowing shorts or arcing, or issues with the electronic temperature controls.

This OEM GE replacement element is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Radiant 9 Dual is an OEM part for GE cooktops and ranges. It provides the heating surface for cooking and is designed to offer two different heating zones, allowing for versatile temperature control depending on the size of the cookware.

Causes of a bad element radiant can include burnouts from excessive use, damage due to spills or impacts, and electrical issues. A faulty heating element can result in uneven cooking or the element failing to heat up at all.

Symptoms of a bad Element Radiant 9 Dual include:

• The element not heating or only partially heating
• Uneven heating across the surface
• Visible damage or discoloration on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Haliant 12 Inch is an OEM part for GE ranges. This radiant heating element is designed to provide even and consistent heat for cooking on your stovetop. It ensures efficient transfer of heat to your cookware, allowing for precise temperature control.

Over time, heating elements can wear out or become damaged due to repeated use, exposure to high temperatures, or accidental impact. If the element becomes faulty, it can result in uneven heating or failure to heat up entirely.

Symptoms of a bad element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burn marks on the element
• Sparking or unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement bracket that secures a cooktop radiant heating element, restoring stable element positioning and safer operation. Use this bracket when the original is bent, cracked, or no longer holds the element firmly in place. What it does:

• Secures the radiant heating element to the cooktop so the element stays aligned and stable.
• Helps prevent element sagging or movement that can cause uneven heating or rattling.
• Keeps element terminals positioned for proper contact with the cooktop assembly.
• Common service part when the original bracket is bent, broken, or corroded.

• Disconnect power at the breaker and ensure the cooktop and element are fully cool before starting.
• Remove damaged bracket and fasten the replacement using the original screws or clips; confirm element alignment before restoring power.
• Use basic hand tools and avoid overtightening fasteners to prevent bracket or element damage.

This bracket secures a stove's radiant heating element to the cooktop so the element stays aligned and stable during use. It helps maintain safe, consistent contact between the element and the cooktop assembly. What it does:

• Holds the radiant heating element in the correct position to prevent movement or sagging
• Keeps the element aligned to ensure even heating and reduce stress on terminals
• Helps stop the burner from wobbling or shifting when cookware is placed on it
• Can be used when a loose or misaligned element causes noise or improper seating

• Disconnect power to the appliance before inspecting or replacing the bracket
• Handle the heating element and terminals carefully to avoid damage or injury
• Basic hand tools are usually required; verify fit before final reassembly

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This maintop strike is the small latch plate the cooktop engages with to stay secured and aligned. Replacing a bent or missing strike restores a snug-fitting main top and proper engagement with the latch mechanism.

• Provides the engagement point for the main top's latch mechanism
• Helps keep the cooktop seated and aligned to reduce movement and rattling
• Can correct issues like the top not staying down or visible gaps at the front edge
• Supports proper actuation of any associated latch/safety switch, when applicable

• Disconnect power (and gas, if applicable) and allow the appliance to cool before servicing
• Open/raise the cooktop per the unit's design and support it safely
• Remove the old strike and align the new strike in the same position; reuse existing mounting hardware if applicable
• Tighten fasteners securely and test latch engagement before restoring power

Size: 8-18 BA POR 3/4 SN
