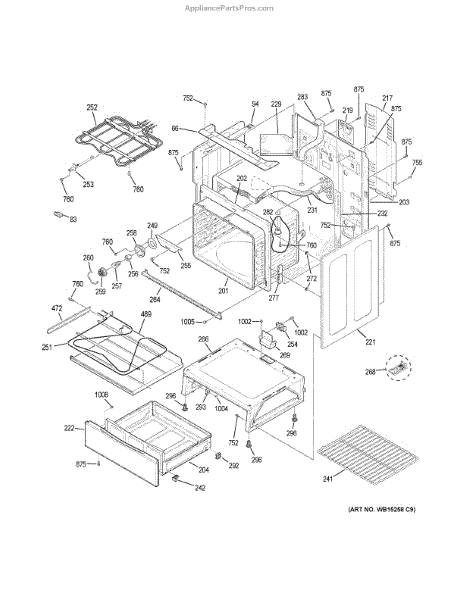

Parts for Ge JB650DF2CC: Body Parts

This replacement storage drawer lining protects the drawer floor and keeps stored items stable—helpful for worn, stained or missing liners. It restores a clean, non-abrasive surface so drawers look and function like new. What it does:

• Provides a protective surface that helps prevent scratches, stains and wear to the drawer floor
• Reduces item shifting and sliding inside the drawer
• Helps contain minor spills and makes cleanup easier
• Restores a finished appearance when the original liner is damaged or missing

• Remove drawer and thoroughly clean and dry the drawer floor before installing
• Align the liner with the drawer edges and press into place; trim only if explicitly required by model
• No special tools usually required; keep fingers clear of edges when fitting
• Dispose of the old liner according to local regulations

This back cover is the rear panel that protects a range or oven's internal components and wiring, helping keep debris and heat away from sensitive parts for safer, more reliable operation. What it does:

• Shields control modules, wiring, and electrical connections from dust, spills, and physical contact
• Helps contain and direct appliance heat and airflow away from external surfaces
• Reduces risk of accidental contact with live components for improved user safety
• Prevents debris buildup that can lead to malfunctions or odor issues

• One back cover

• Disconnect power (unplug or switch off breaker) before removing or installing the cover
• Remove screws or fasteners securing the old panel; keep hardware for reuse only
• Watch for sharp edges; wear gloves to protect your hands
• Reinstall all fasteners securely and restore power; test appliance function after installation

The Oven Rack is an OEM part for GE ovens. This rack provides a stable and durable surface for placing baking dishes, pans, and trays inside the oven. Designed to fit perfectly within the oven cavity, it ensures proper airflow around the food, contributing to even cooking and baking results. The rack measures approximately 24"X17".

Common causes of a bad oven rack include bending or warping from heavy loads, rusting or corrosion due to prolonged exposure to moisture, or accidental damage during cleaning or handling.

Symptoms of a bad oven rack include:

• Warped or bent rack wires
• Difficulty sliding the rack in and out of the oven
• Uneven cooking due to improper rack placement
• Rust or flaking metal on the rack

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer wedge aligns and stabilizes the lower drawer so it opens and closes smoothly and sits flush. Replacing a worn or missing wedge helps eliminate wobble, rubbing, and gaps for better everyday operation.

• Supports and centers the drawer for proper alignment on the slides
• Acts as a spacer/stop to reduce vibration and metal-to-metal contact
• Helps prevent binding and keeps the drawer from popping off the track
• Common symptoms: drawer crooked or sagging, won't close fully, rattles, or feels loose

• Disconnect power and allow the appliance to cool before servicing
• Pull the drawer out to the stops, release the side track tabs, and remove the drawer
• Note the original wedge's position; remove it and install the new wedge in the same orientation (reuse existing hardware if applicable)
• Reinstall the drawer on the rails and verify smooth operation and proper fit

This oven light gasket seals the light lens/cover to the oven cavity. Replacing a worn gasket restores a tight barrier that helps keep heat, steam, and splatter away from the light assembly and lets the lens seat securely.

• Creates a heat-resistant seal between the light lens/cover and oven liner
• Helps keep moisture, grease, and food vapor out of the light assembly
• Supports proper seating of the lens cover to prevent looseness or rattling
• Common signs: cracked/brittle or missing gasket, visible gaps around the lens, condensation or residue behind the lens, lens cover that won't stay tight

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove oven racks for access; open/remove the light lens cover as directed in the manual
• Carefully remove the old gasket and any residue; clean the sealing surface
• Fit the new gasket evenly around the lens/fixture and reinstall the lens cover; restore power and test

Restore even, reliable bottom heat with this hidden bake element assembly. Located beneath the oven floor, it delivers the heat needed for consistent preheating and baking when the original element is burned out or damaged.

• Supplies primary bottom heat during Bake cycles for electric ovens
• Helps achieve normal preheat times and maintain set temperature
• Replaces an element that is open/shorted or visibly blistered/broken
• Symptoms can include no heat in Bake, very long preheat, or uneven baking results

• Disconnect power at the breaker before servicing
• Remove oven racks and oven floor panel to access the hidden element
• Note wire positions; transfer and reconnect leads one at a time to the new element
• Inspect wiring and high-heat insulation; repair/replace any damaged connectors before reassembly

The Broil Element Assembly is an OEM part for GE ranges. It is responsible for broiling food placed on oven racks in the top portion of the range.

Symptoms of a bad broil element include:

• Element failing to heat up or only heating to low temperatures
• Food not browning or cooking properly under the broiler setting
• Hot or cold spots occurring during the broiling process

Causes of a bad broil element can be prolonged and heavy usage resulting in burns or shorts in the heating coils. Signs of failure also include visible damage, corrosion or discoloration of the coils.

This OEM GE replacement part is also compatible with some Kenmore range models.

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven light cup is the interior housing that supports and shields the oven lamp and lens. Replacing a damaged cup keeps the light assembly secure and properly aligned so you can clearly see inside the oven during cooking.

• Mounts inside the oven cavity to support the light assembly
• Shields the lamp area from heat and splatter
• Provides the proper seat/retention for the light lens/cover
• Common symptoms: light cover won't stay in place, light assembly feels loose, visible damage or missing cup

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove oven racks for access
• Remove the lens/cover and bulb to access the cup; transfer and reuse existing fasteners
• Ensure the cup is fully seated and oriented correctly before restoring power

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This front trim frame restores the finished edge and appearance of the appliance door or control opening, providing a clean, factory-look replacement that covers gaps and worn trim on compatible units. What it does:

• Replaces damaged, scratched or missing front trim to improve the appliance's appearance.
• Covers gaps where original trim has warped, peeled, or broken.
• Helps maintain a consistent seal line and edge protection around the door or control opening.
• Matches the original black finish to blend with the surrounding cabinet or door surface.

• One black front trim frame.

• High-level replacement; remove power and open door or panel before starting.
• Handle trim carefully to avoid scratching the finish during installation.
• Retain and reuse any original clips or screws when possible; replace only if supplied or specified.

This anti-tip bracket assembly secures the rear of your range to the floor or wall. It helps prevent the appliance from tipping forward during everyday use and supports compliance with manufacturer safety and installation requirements. What it does:

• Anchors the range so the rear leveling foot engages the bracket to help prevent tipping
• Helps correct a range that rocks, shifts, or tilts when the door is opened or racks are pulled
• Replaces a missing, bent, or corroded anti-tip bracket
• Supports passing the required anti-tip safety check after installation

• One anti-tip bracket assembly

• Disconnect power; for gas models, also shut off the gas supply before starting
• Mount the bracket to the floor or wall as directed in the range's installation instructions
• Slide the range back so the rear leveling foot fully engages the bracket; verify the unit is level
• Perform the anti-tip test specified in the installation manual to confirm proper engagement

This mount terminal block secures and organizes high-voltage wiring where the appliance power harness connects to the oven/range chassis. It provides a stable, insulated connection point to help restore reliable electrical contact. What it does:

• Holds and routes the incoming power wires and attaches them to the appliance wiring harness
• Provides insulated, screw-style terminal connections to maintain secure electrical contact
• Commonly replaces a cracked, melted, or loose terminal block that can cause poor power or intermittent operation
• Can stop visible sparking or burning at the connection point and prevent wire chafing

• Always disconnect all power at the breaker or unplug the appliance before servicing
• Verify wiring locations and take photos before removing the old block to ensure correct reconnection
• Use appropriate insulated tools and replace any damaged screws or wire terminals as needed

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

This hinge receiver secures the refrigerator door hinge to the cabinet frame, keeping the door aligned and closing smoothly. It replaces a worn or damaged receiver to restore proper door fit and operation. What it does:

• Secures the hinge pin to the cabinet frame so the door pivots correctly
• Restores proper door alignment and prevents sagging or uneven gaps
• Helps the door seat and seal fully to maintain internal temperature
• Stops clicking, rubbing or loose-feeling hinges caused by a broken receiver

• Unplug the appliance or disconnect power before starting work to avoid electrical hazards.
• Support the door while removing hinge fasteners to prevent injury or damage.
• Use proper hardware and hand tools; do not overtighten fasteners which can strip mounting holes.

This vent tube directs heated air and moisture from the appliance to its exhaust path, maintaining proper airflow around internal components. Replace a cracked, warped, or missing tube to restore safe ventilation and help prevent heat and condensation buildup. What it does:

• Channels hot air and steam from the cavity to the outlet
• Helps prevent heat accumulation around controls and adjacent surfaces
• Reduces moisture/condensation at the vent outlet
• Common symptoms: excessive warmth near the console, persistent odors/steam, visible damage, or rattling from a loose/broken tube

• 1 vent tube

• Disconnect power; shut off gas. Allow the appliance to cool completely before servicing.
• Access and attachment points vary by model; refer to your service manual or diagram for location.
• Note the tube's orientation and routing; transfer any brackets or seals from the old part if present.
• Reuse existing screws/clamps and ensure the vent path is clear after installation.

This vent tube directs heat and venting from the oven/radiant element to help maintain proper airflow and protect surrounding components. It's a direct-fit replacement designed to restore proper venting performance. What it does:

• Channels heat and vent airflow away from the radiant element and oven cavity
• Helps prevent hot spots and protect adjacent components from excess heat
• Replace when bent, cracked, corroded or blocking airflow
• Can resolve venting-related cooking issues and uneven broiling

• Vent tube

• Disconnect power to the appliance before starting any repair
• Remove oven panels and allow all components to fully cool before handling
• Handle carefully to avoid damaging ends or mounting tabs; use basic hand tools

The Rear Door Support is an OEM replacement part for GE ranges. Located at the base of the range, this bracket provides weight-bearing support for the lower oven drawer. It facilitates smooth extension and retraction of the drawer.

Causes of faulty support can include cracks or fractures developing over extended use, worn joints unable to sustain drawer weight, or misalignment from repeated opening/closing stress.

Symptoms of a bad support include:

• Loose or sagging lower oven drawer
• Grinding or binding noises when operating the drawer
• Difficulty fully extending or retracting the drawer
• The drawer not sitting securely in a closed position

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges.

This leveling leg is an authentic OEM replacement part sourced directly from the manufacturer. Leveling legs are used on the bottom of stoves to correct imbalances on the cooking top caused by floors being unlevel. The leveling leg is threaded so that it can be adjusted up or down as needed. There are four holes for leveling legs on the stove's bottom. Each leg can be adjusted independently. If the legs are missing or lost, these replacements will help level the stove for more even cooking. When the stove is not level, the food inside pans will be unlevel and not cook evenly.Make sure the power is disconnected before installing the leveling leg. Tilt the stove back and place a chock underneath one side so that the leg can be screwed up or down as needed. Remove the chock and check for level. If the stove is still unlevel, repeat the procedure on the side that is not level. Continue to adjust until the stove is level. Restore the power to the stove.This leveling leg is a black part that is sold individually. It is designed for use on ranges manufactured by General Electric, Kenmore, and Hotpoint.

This reflector pan replaces the oven cavity reflector that sits under the bake element to direct heat and protect the oven floor. Restores proper heat distribution and helps prevent direct contact with the element for safer baking. What it does:

• Reflects and redirects heat from the bake element for more even oven temperatures
• Shields the oven floor from drips, spills and debris while baking
• Helps maintain correct bake performance when original pan is bent, corroded or missing
• Reduces risk of direct contact between food/drips and the heating element

• One reflector pan

• Disconnect power to the appliance before any service to avoid shock or injury
• Handle carefully — edges may be sharp; use gloves to prevent cuts
• Typically installs under the bake element; follow your model's service manual for removal and replacement steps
• If corrosion or oven-floor damage is present, inspect surrounding components and replace as needed

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

Black. 8-18 AB HXW 3/8

This replacement screw secures panels, brackets, and trim in your appliance. Using the correct #8-18 fastener helps restore a tight, rattle-free fit when replacing missing or damaged hardware. What it does:

• Fastens sheet-metal panels, brackets, and other components to the chassis
• Replaces missing, stripped, or damaged screws
• Helps eliminate vibration-induced rattles and looseness
• Maintains proper alignment of panels and assemblies

• 1 screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Align parts and start the screw by hand to avoid cross-threading
• Use an appropriate nut driver or screwdriver for the hex-washer head
• Tighten until snug; do not overtighten to prevent stripping

• Thread: #8-18 (type AB)
• Length: 3/8 in
• Head style: indented hex-washer

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

Size: 8-18 BA POR 3/4 SN
