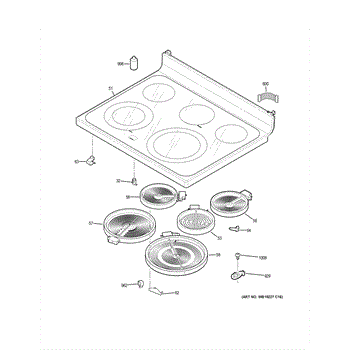

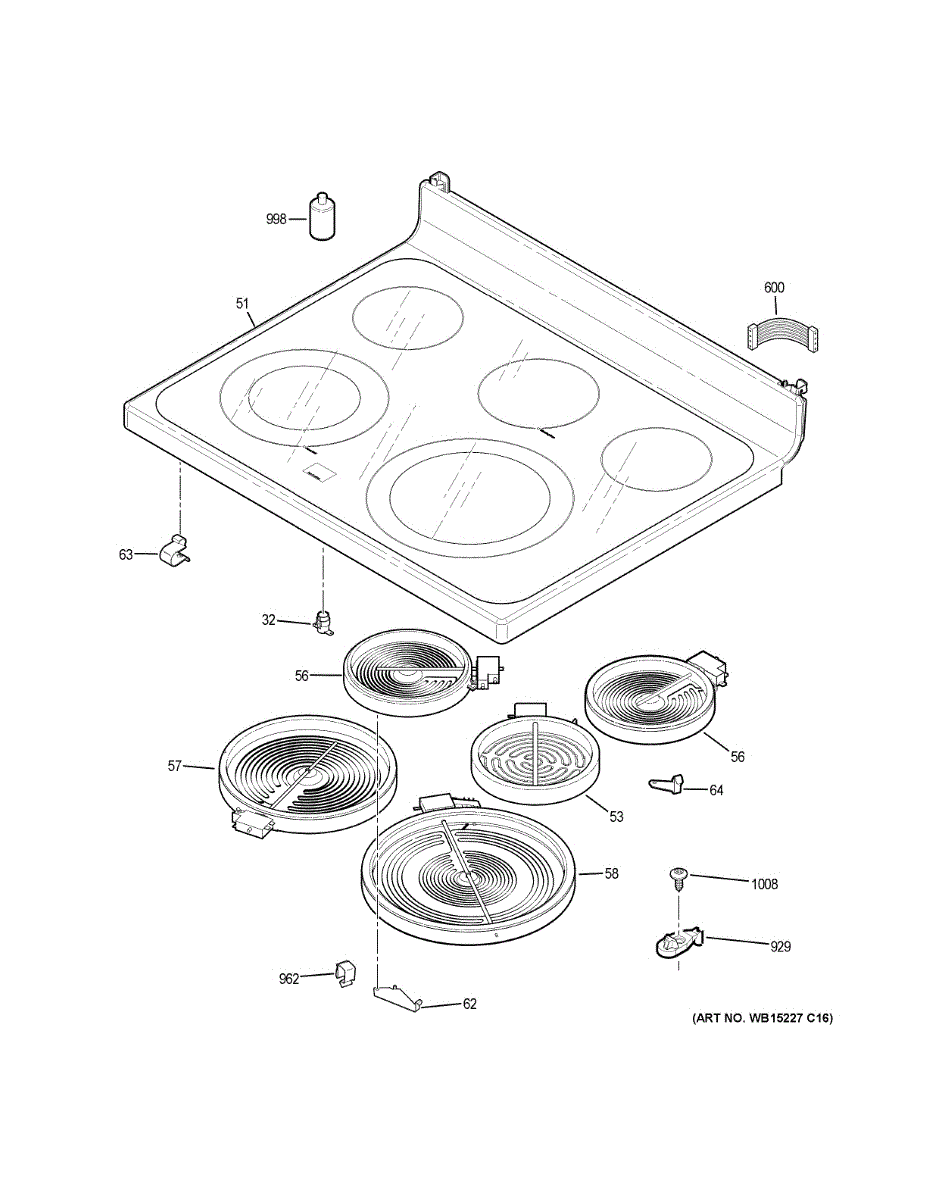

Parts for Ge JCB865SJ7SS: Cooktop Parts

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Rangetop Glass Assembly is an OEM replacement part for GE electric ranges. It is a glass surface that serves as the cooktop for the range. This assembly includes the glass panel itself, which provides the cooking surface for the range, and other elements such as the metal frame or trim that surrounds the glass.

Symptoms of a faulty rangetop glass assembly include:

• Visible cracks or fractures on the glass surface
• Discoloration or staining that cannot be removed
• Difficulty in cleaning or maintaining the surface

A bad rangetop glass assembly can occur due to accidental damage, cracks, or discoloration over time. If you notice any signs of damage or wear, such as visible cracks, discolored spots, or difficulty in cleaning the surface, it may be time to replace the old or damaged rangetop glass assembly with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Element Radiant 6 Warmer is an OEM component specifically designed for GE electric ranges. This element plays an important role in warming plates and keeping cooked foods hot until serving.

Symptoms of a bad radiant warmer element include:

• Inability to maintain an elevated temperature on the warmer oven surface
• Fluctuating or uncontrolled warming temperatures
• Burning or scorching of foods left on the warmer for extended periods

Causes of failure can be cracking or breakage of the heating coils over time, insulation damage allowing shorts or arcing, or issues with the electronic temperature controls.

This OEM GE replacement element is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Radiant 9" Dual is an OEM part for GE ranges and cooktops. This dual-element radiant burner provides versatile cooking options, offering both a small and large heating area within a single burner. It ensures efficient and even heat distribution for a variety of cooking needs, accommodating different pot and pan sizes.

Causes of a bad radiant element can include normal wear and tear, electrical issues, or damage from heavy cookware or impact. Over time, these factors can lead to the element failing to heat properly or not functioning at all.

Symptoms of a bad radiant element include:

• The burner not heating up or heating inconsistently
• Only one of the dual elements functioning
• Visible damage or discoloration on the element
• The burner cycling on and off more frequently than usual

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Haliant 12 Inch is an OEM part for GE ranges. This radiant heating element is designed to provide even and consistent heat for cooking on your stovetop. It ensures efficient transfer of heat to your cookware, allowing for precise temperature control.

Over time, heating elements can wear out or become damaged due to repeated use, exposure to high temperatures, or accidental impact. If the element becomes faulty, it can result in uneven heating or failure to heat up entirely.

Symptoms of a bad element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burn marks on the element
• Sparking or unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket secures a stove's radiant heating element to the cooktop so the element stays aligned and stable during use. It helps maintain safe, consistent contact between the element and the cooktop assembly. What it does:

• Holds the radiant heating element in the correct position to prevent movement or sagging
• Keeps the element aligned to ensure even heating and reduce stress on terminals
• Helps stop the burner from wobbling or shifting when cookware is placed on it
• Can be used when a loose or misaligned element causes noise or improper seating

• Disconnect power to the appliance before inspecting or replacing the bracket
• Handle the heating element and terminals carefully to avoid damage or injury
• Basic hand tools are usually required; verify fit before final reassembly

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement bracket that secures a cooktop radiant heating element, restoring stable element positioning and safer operation. Use this bracket when the original is bent, cracked, or no longer holds the element firmly in place. What it does:

• Secures the radiant heating element to the cooktop so the element stays aligned and stable.
• Helps prevent element sagging or movement that can cause uneven heating or rattling.
• Keeps element terminals positioned for proper contact with the cooktop assembly.
• Common service part when the original bracket is bent, broken, or corroded.

• Disconnect power at the breaker and ensure the cooktop and element are fully cool before starting.
• Remove damaged bracket and fasten the replacement using the original screws or clips; confirm element alignment before restoring power.
• Use basic hand tools and avoid overtightening fasteners to prevent bracket or element damage.

This 14-gauge green lead wire is a direct-replacement electrical connection used on compatible appliances to restore a secure, low-voltage/ground circuit and reliable component operation. It helps replace damaged or worn wiring to prevent intermittent power or arcing. What it does:

• Replaces a damaged or corroded green lead used for grounding or signal return
• Restores a secure electrical connection between controls, switches, or chassis ground
• Helps stop intermittent operation, loss of function, or visible arcing due to bad wiring
• Matches OEM gauge and color for proper fit and safe routing

• One 14-ga green lead wire as pictured

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use proper connectors or crimps and secure the wire to prevent chafing or contact with hot/moving parts
• Test continuity and proper operation after reinstalling and restoring power

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
