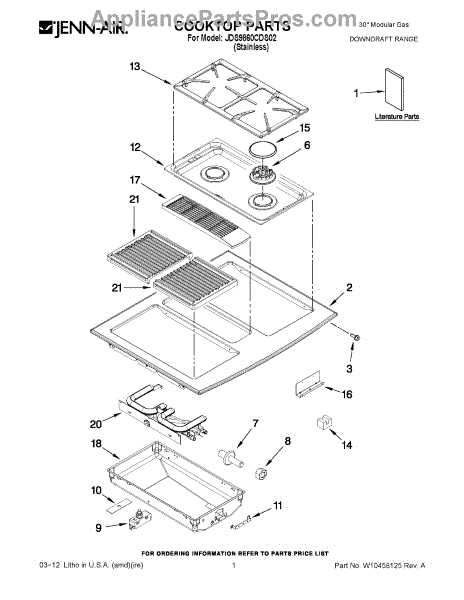

Parts for Jenn-Air JDS9860CDS02: 01 - Cooktop Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

This locknut is a small threaded retaining nut used to secure rotating and stationary appliance components, helping keep assemblies tight and stable during operation. It prevents parts from loosening and reduces vibration-related issues. What it does:

• Secures shafts, pulleys, or fittings to prevent axial movement
• Keeps assemblies fastened under normal vibration and load
• Helps stop wobble, grinding, or part separation caused by a loose connection
• Works with the matching threaded stud, shaft, or fitting for a proper hold

• Disconnect power and follow appliance safety procedures before servicing
• Use the matching thread size and engage threads fully; hand-start before tightening
• Tighten securely without overtightening; use the correct driver or socket for the nut
• Inspect mating threads and replace if damaged

A replacement SN switch that restores the appliance's control function so selections and features respond reliably. Installs in the original switch location to return consistent on/off or selector operation after a switch failure. What it does:

• Opens and closes the electrical circuit to control the associated function or component.
• Replaces a worn or failed switch to stop intermittent operation or loss of control.
• Common symptoms it can fix: appliance not responding to a selector/setting, intermittent power to a component, or a component that won't turn on.
• Functions as the user-facing or internal control switch depending on the model application.

• Disconnect power (unplug appliance or shut off breaker) before starting any repair.
• May require removing an access or control panel; use basic hand tools and note wire locations before disconnecting.

Color: Black. Dual.

Color: Black. Size: Large.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

This is a durable complete top E-burner assembly that is used on ranges and cooktops. This is located in the oven and ensures that food is properly cooked when a user chooses a temperature. If this part is damaged or no longer working, it should be replaced.First, make sure the appliance is unplugged or the circuit breaker is turned off. Open the oven door and remove racks so there is extra room for the replacement process. Next, remove the bottom of the oven. There may be a screw or a nut that needs to be removed. Lift up the bottom and slide it toward the rear before lifting up. Remove the burner baffle and take off the igniter. Remove the screw that holds the top E-burner assembly and lift it out. Replace it with the new part and reassemble the oven.The complete top E-burner assembly is made for cooktops and ranges manufactured by Jenn Air. It is an authentic OEM replacement part that is sold as a single part. It is sourced directly from the manufacturer.

Color: Black.
