Parts for Kenmore 20524: Cooktop Parts

Cooktop
Cooktop

Parts for Kenmore 20524: Cooktop Parts

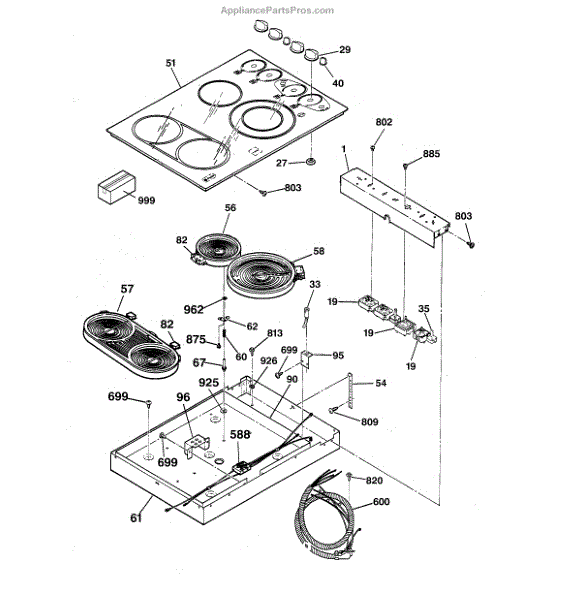

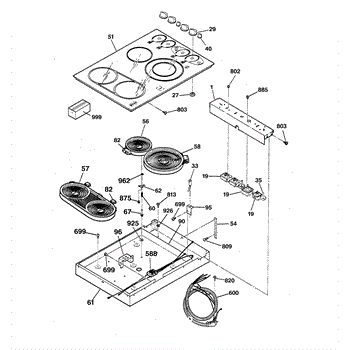

Location on Diagram
Part Description
Price & Availability
19
Product photo
5.0 (8)
By: Ge
Part Number: WB23M9

This infinite switch controls the heat level of your range's surface cooking elements. It regulates power flow to provide different temperature settings from low simmer to high heat. Replace this part if a burner won't heat up, stays on high heat, or cycles on and off irregularly.

More
$113.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
19
Product photo
4.8 (4)
By: Ge
Part Number: WB23M8

1200W Element Control

More
$112.45

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
27
Product photo
5.0 (3)
By: Ge
Part Number: WB2X9504
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29
Product photo
5.0 (3)
By: Ge
Part Number: WB03T10030

This part is a replacement control knob. This is knob is manufactured by General Electric and is a genuine OEM part that has been sourced directly from the manufacturer. This part is intended to replace a defective or misplaced knob on certain makes of ranges, stoves, and ovens. A misplaced control knob or one that is not functioning correctly can prevent accurate temperature control or stop the appliance from turning on or off. This knob features a double flat shaft and requires no tools for replacement. Please follow appropriate safety precautions and always ensure the stove is disconnected from both gas and power hookups before starting the replacement process. For more accurate information on how and where to install this replacement knob, it is recommended that the appropriate manufacturer diagrams or owner's manual are referenced. As an authentic replacement part, this knob can be used on multiple different models of ranges, stoves, and ovens manufactured by General Electric and Hotpoint. Please note that this replacement knob is a genuine part made of high-quality, durable materials and is sold individually.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29
Best Seller
Product photo
4.9 (15)
By: Ge
Part Number: WB03T10025

Replace cracked, broken, or worn control knobs on your cooktop. This dial installs on the front panel to adjust heating element temperature settings.

More
$22.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
35
Product photo
4.8 (12)
By: Ge
Part Number: WB24X449

Oven won't change modes or burner won't heat? The selector switch routes power to cooking functions. Moderate DIY repair with video guidance available.

More
$79.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
40
Product photo
5.0 (4)
By: Ge
Part Number: WB03T10034
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

40
Best Seller
Product photo
4.9 (10)
By: Ge
Part Number: WB03T10035

Replace your cooktop's selector knob if cracked, broken, or missing. This glossy black control knob installs on the control panel to operate settings.

More
$24.62

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
54
Product photo
5.0 (1)
By: Ge
Part Number: WB2K5328

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

  • Anchors the specified part to the appliance frame/cabinet to prevent shifting
  • Reduces vibration and rattling noises during operation
  • Helps maintain correct alignment and spacing for reliable performance
  • Replace if the bracket is bent, cracked, corroded, or missing

What's included:

  • 1 hold-down bracket

Install notes:

  • Disconnect electrical power; for gas appliances, also shut off the gas supply
  • Note the original orientation and screw locations before removal (a quick photo helps)
  • Reuse existing mounting hardware unless your model specifies new fasteners
  • Do not overtighten; verify the secured component is aligned and stable before restoring power

More
$7.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
56
Product photo
By: Ge
Part Number: WB30X10003
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

57
Product photo
By: Ge
Part Number: WB30X43560

Bridge element not heating evenly or failing to connect? This cooktop bridge heating element restores even heat across two burners for large cookware. 1-2 hour install.

More
$359.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
58
Product photo
5.0 (3)
By: Ge
Part Number: WB30X38934

This 9-inch dual radiant surface element kit replaces a failed burner on a smooth-top electric range or cooktop, restoring dependable, even heating and letting you choose a smaller or larger heating area to match your cookware.

  • Provides two selectable heating zones (inner and outer rings) to match pot size
  • Heats cookware evenly across the chosen zone on glass-ceramic cooktops
  • Typical symptoms include no heat, only one ring working, slow or uneven heating, or intermittent operation
  • Restores burner performance after internal failure of the element assembly
What's included: 1 dual radiant surface element assembly (9-inch), kit
  • Disconnect power at the circuit breaker before servicing; 240V shock risk
  • Allow the cooktop to cool completely; protect the glass surface while working
  • Photograph wiring and transfer leads one at a time to matching terminals on the new element
  • Ensure the element seats correctly in its support brackets; test both inner and outer rings before final reassembly

More
$196.28

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
60
Product photo
By: Ge
Part Number: WB9K5014
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

61
By: Ge
Part Number: WB64T10010

Burner box bottom assembly for cooktops. Mounts beneath burners to contain heat and support components. Replace if cracked, warped, or corroded.

More
$83.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
62
Product photo
By: Ge
Part Number: WB2K5318

Mounting bracket that secures the radiant element to your cooktop. Replace if bracket is bent, broken, or missing to properly support the heating element.

More
$78.27

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
67
By: Ge
Part Number: WB2X9502

Replacement mounting stud for cooktops and ranges. Secures the cooktop assembly to the cabinet or countertop. Replace if broken, stripped, or missing.

More
$8.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
96
By: Ge
Part Number: WB2K5345
$7.55

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
600
By: Ge
Part Number: WB18X365
$42.86

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
699
Product photo
5.0 (6)
By: Ge
Part Number: WB1M1

ST10-16 X 7/16"

More
$9.48

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
802
Product photo
By: Ge
Part Number: WB1K5122

Replacement screw for securing panels, trim, and mounting brackets on appliances. Use when original fastener is lost, stripped, or damaged.

More
$10.51

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
803
Product photo
By: Ge
Part Number: WB1X1149

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

More
$9.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
809
Product photo
By: Ge
Part Number: WB1X1137

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

More
$10.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
813
Product photo
By: Ge
Part Number: WB1X1261

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

More
$9.88

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
820
Product photo
5.0 (1)
By: Ge
Part Number: WB1X1424D

Package of 12

More
$8.46

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
875
Product photo
4.5 (6)
By: Ge
Part Number: WH2X930

Black. 8-18 AB HXW 3/8

More
$11.74

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
925
Product photo
By: Ge
Part Number: WB1K5117

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

  • Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
  • Helps distribute clamping force to prevent pull-through or deformation of softer materials
  • Reduces vibration and movement at the joint when installed correctly
  • Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment
What's included: One flat washer (.250 I.D. x .812 O.D.) Install notes:
  • Disconnect power and water before servicing the appliance
  • Replace like-for-like: inner/outer diameters and thickness match the original washer
  • Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
  • Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage

More
$7.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
926
Product photo
By: Ge
Part Number: WB1X1260
$5.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
999
By: Ge
Part Number: 031-10147
$7.81

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
999
Product photo
5.0 (1)
By: Ge
Part Number: WX10X302

Replace your dull, broken, or missing cooktop scraper blade. This cleaning tool blade removes baked-on food and residue from glass cooktop surfaces.

More
$15.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
