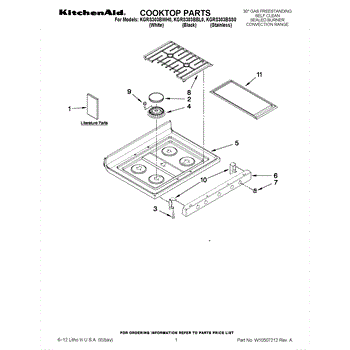

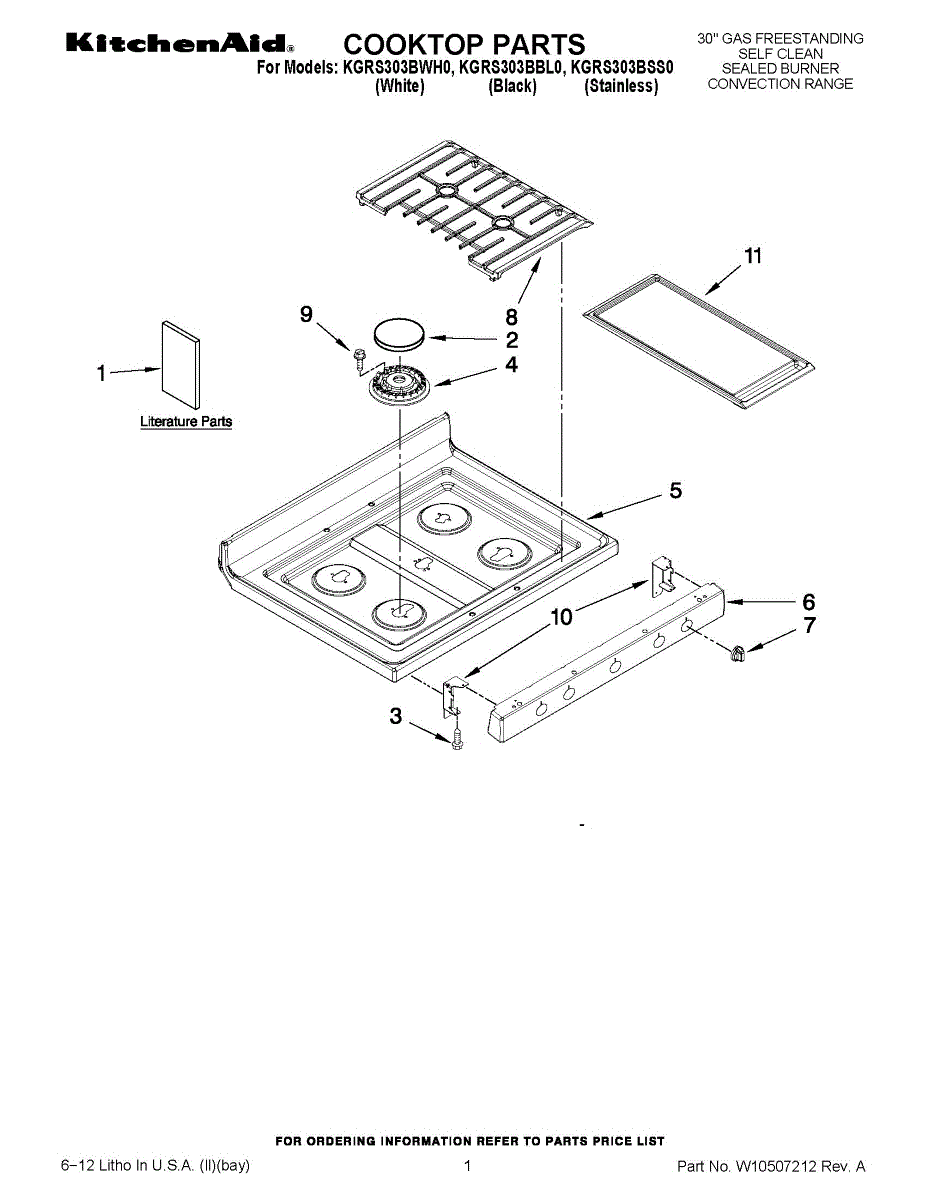

Parts for Kitchenaid KGRS303BBL0: 01 - Cooktop Parts

Color: Black. Kit includes five burner caps. For the burner cap kit in grey use part number WPW10183372.

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

This is a replacement control knob that restores safe, reliable control of your appliance's front panel settings. It gives a secure grip and accurate position feel so you can select cycles, temperatures, or functions with confidence. What it does:

• Replaces a cracked, stripped, or missing control knob so the control shaft can be turned smoothly
• Restores positive detents and readable position alignment for accurate setting selection
• Stops slipping, wobbling, or loose rotation caused by a damaged or worn knob
• Helps prevent damage to the control shaft by providing a properly fitting interface

• Disconnect power (unplug or shut off circuit) before attempting replacement
• Most installations are push-on/snap-fit; firmly pull off the old knob and push the new knob onto the control shaft until seated
• If the knob is secured with a clip or set-screw, retain hardware and reattach exactly as removed
• Do not force the knob; if it does not seat easily, verify shaft type and orientation to avoid damage

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
