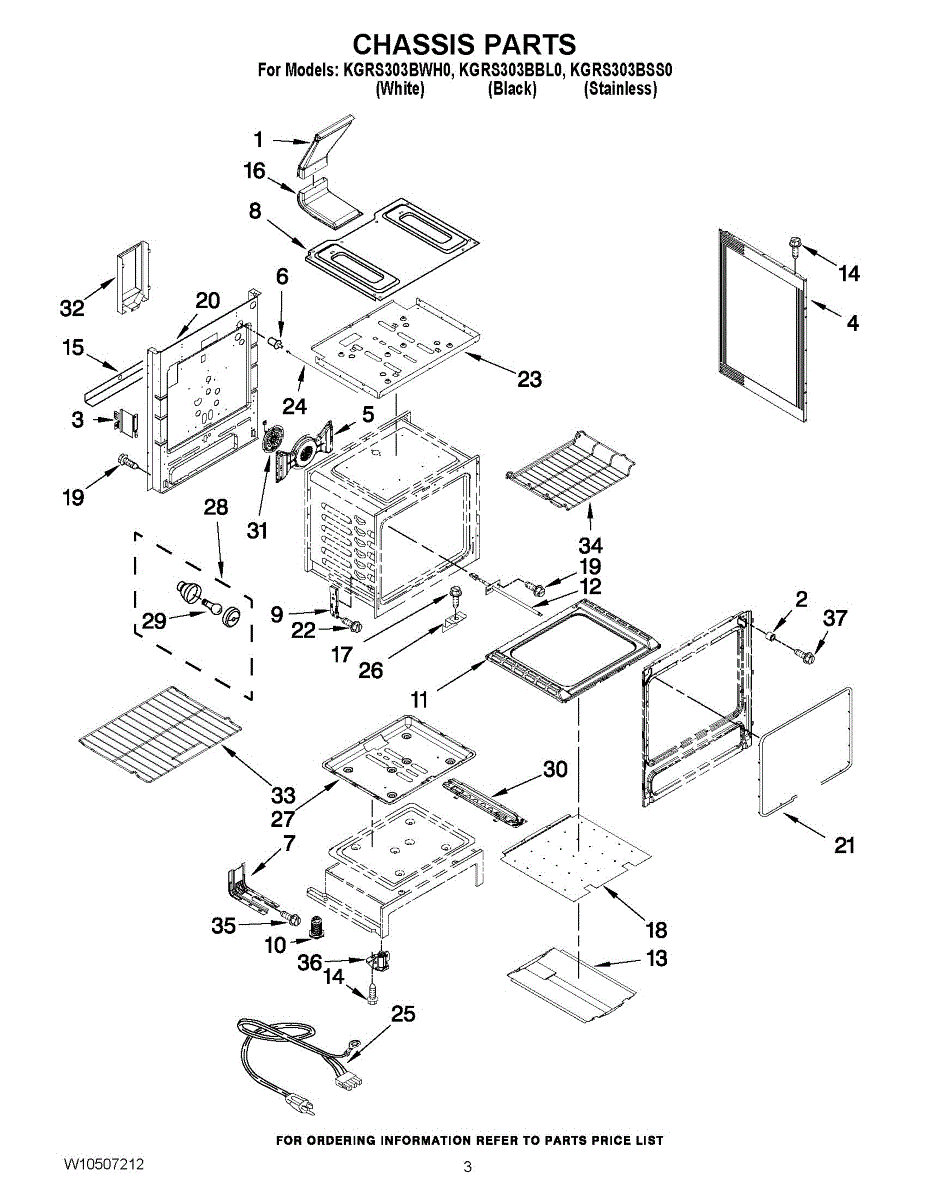

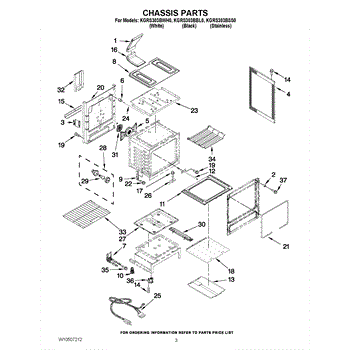

Parts for Kitchenaid KGRS303BBL0: 03 - Chassis Parts

This spacer provides a precise gap for proper alignment and clearance between components, helping maintain correct part positioning for reliable operation. It's a simple replacement that restores intended spacing and reduces wear. What it does:

• Positions and separates adjoining parts to maintain correct clearance
• Helps prevent rubbing, misalignment, or binding of moving components
• Restores factory spacing after maintenance or part replacement
• Fits where the original spacer was used to support assembly alignment

• One spacer as shown

• Inspect surrounding components and mounting surfaces for damage before installing
• Remove power to the appliance and follow manufacturer service instructions
• Install in the same orientation as the original spacer and verify proper clearance
• If fasteners or adjacent parts are worn, replace them to ensure a secure fit

This side panel is a replacement cabinet trim piece that restores the exterior finish and protects the refrigerator side from dings and scratches. It matches original fit and appearance for a clean, factory look. What it does

• Covers and protects the refrigerator cabinet side from damage and wear
• Restores a uniform exterior appearance after dent or cosmetic repair
• Helps maintain proper panel alignment and mounting for adjacent parts
• Matches OEM shape so doors and trim fit correctly

• One side panel

• Intended for cabinet-side replacement; verify side (left/right) using your model diagram before ordering
• Remove power and empty nearby shelves before starting; handle panel edges carefully to avoid cuts
• May require basic tools (screwdriver, trim removal tool) and a second person for proper alignment

This door-activated switch detects when the oven door opens or closes and signals the appliance to control the interior light. Replacing a worn or failed switch restores dependable light operation and accurate door-status feedback.

• Senses oven door position and opens/closes the light circuit
• Controls the oven's interior light based on door position
• Provides door-status input to the control for normal operation
• Typical symptoms: light stays on, won't turn on, or flickers with door movement; door-ajar messages may appear

• Disconnect power at the breaker or unplug the unit before servicing
• Access the switch from behind the front frame or control area, depending on model
• Move wires to the new switch one at a time to maintain correct positions; secure with existing hardware
• Restore power and verify light operation with door open/closed before reassembly

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This replacement burner box routes gas and supports the burner components under a gas range cooktop, restoring proper burner alignment and operation. It helps ensure stable flame delivery and safe fuel flow to the surface burner assembly. What it does:

• Houses and positions the burner, orifice and ignition components for proper combustion
• Channels gas from the manifold to the surface burner for consistent flame
• Helps prevent gas leaks by securing fittings and seals in the burner area
• Addresses symptoms such as uneven flames, burner misalignment, or gas smell near the cooktop

• One burner box assembly

• Turn off gas supply and disconnect power before servicing; work only if qualified
• Inspect gaskets, fittings and orifice for wear and replace as needed
• Verify proper seating and alignment of the burner and igniter during reassembly
• Test for leaks with a soap solution and restore gas/electrical connections before normal use

This hinge receiver mounts to the appliance frame and accepts the door hinge arm/pin. It keeps the door aligned and secure so it opens and closes smoothly. Replacing a worn or cracked receiver restores proper door action.

• Anchors the hinge arm/pin at the cabinet/frame for smooth door movement
• Maintains door alignment and consistent closing action
• Wear or damage can cause a loose or sagging door, misalignment, or binding
• Common signs include clicking/grinding noises and visible cracks or deformation

• Disconnect power; allow the appliance to cool and shut off gas/water if applicable
• Support or remove the door to access the receiver
• Remove mounting fasteners, swap in the new receiver, and align per service instructions
• Reinstall the door and verify smooth movement and full closure

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This Oven Bottom forms the floor of a gas oven cavity. Positioned above the bake burner, it shields the burner/igniter from spills while providing a smooth, removable surface that helps direct heat and is easier to clean.

• Covers and protects the bake burner and igniter assembly
• Helps channel heat and airflow across the oven cavity
• Catches drips and debris; removes for periodic cleaning
• Typical failure signs: warped or rusted panel, flaking finish, burnt-through spots, or persistent smoke from baked-on spills

• Allow the oven to cool completely; wear cut-resistant gloves—edges may be sharp
• Disconnect power and turn off gas supply before servicing
• Remove racks; release rear screws or tabs per your model, lift and slide the old panel out; seat the new panel under the front lip and secure
• Restore power and gas, then verify proper fit and clearance

The Oven Sensor Assembly is an OEM part for Whirlpool ovens, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.

Causes of a bad Oven Sensor Assembly can include exposure to high temperatures for prolonged periods, affecting the sensor's accuracy, electrical malfunctions like short circuits or wiring issues impacting its performance, and physical damage from cleaning or moving the oven compromising the sensor's integrity.

Symptoms of a bad Oven Sensor Assembly include:

• The oven does not heat to the set temperature
• Over or undercooking of food
• Error codes displayed on the oven's control panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This burner baffle is a replacement heat shield that protects the range cooktop and burner assembly from spills and directs heat for more consistent cooking. Durable design helps keep burner components cleaner and working properly. What it does:

• Shields burner components from drips, spills, and food debris that can cause clogging or uneven flame
• Helps channel heat from the burner for more consistent surface heating
• Reduces direct exposure of internal parts to corrosive residues, extending component life
• Can stop rattling or misalignment caused by a damaged or bent baffle

• Disconnect gas supply and electrical power and allow the range to cool fully before servicing
• Handle edges carefully; baffle may have sharp metal edges or be spring-tensioned into place
• Installation typically requires removing grates and lift-off parts to access the burner area; follow OEM instructions

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Door Gasket is an OEM part for Whirlpool ovens. This part creates a tight seal around the oven door, preventing heat from escaping during cooking. This part ensures that the oven maintains a consistent temperature, leading to more efficient cooking and energy use.

A damaged gasket might also allow hot air to escape, potentially causing heat damage to surrounding kitchen cabinetry and increasing energy consumption.

Symptoms of a bad Door Gasket include:

• The oven takes longer to preheat
• You notice heat escaping from the edges of the oven door
• Uneven cooking or baking results
• Increased energy bills due to the oven working harder to maintain temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This heat shield protects nearby components from burner heat on gas ranges, helping prevent heat damage and extending the life of surrounding parts. It fits where the burner assembly channels heat away from sensitive areas. What it does:

• Deflects and disperses burner heat to protect nearby wiring, controls, and cabinet surfaces
• Prevents premature failure of parts exposed to high temperatures
• Helps maintain proper airflow around the burner area
• Useful when heat is causing discoloration or damage near the burner

• One heat shield for gas range burner area

• Disconnect power and shut off gas supply before servicing
• Allow appliance to cool completely; use appropriate tools and follow OEM removal steps
• Install in the original orientation and fasten securely; do not bend or modify the shield

This 18-inch supply power cord delivers a reliable electrical connection to restore appliance power and safe operation. It replaces a damaged or missing cord so the unit can receive power from the wall outlet. What it does:

• Provides the main AC connection between the appliance and household power
• Replaces frayed, melted, or broken cords that cause intermittent power or no power
• Restores secure plug and strain-relief connection to reduce arcing and overheating risks
• Matches factory-style terminal ends for a direct fit when compatible

• One 18-inch supply power cord

• Disconnect power at the breaker or unplug the appliance before starting
• Inspect terminals and cord routing; secure with the factory strain relief
• Tighten terminal connections firmly but do not overtighten; confirm proper insulation

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

This convection fan assembly circulates hot air inside the oven cavity to help maintain even temperatures for more consistent baking and roasting results. It replaces a worn or failed fan to restore proper airflow and heating performance. What it does:

• Spins to move heated air throughout the oven cavity for improved heat distribution
• Supports convection cooking features that rely on steady internal airflow
• Commonly needed when the oven overheats, runs cold, or produces uneven baking
• Helps reduce hot or cold spots that cause unevenly cooked food

• Disconnect power to the appliance before attempting any repair.
• Handle the fan blades carefully to avoid bending or damage.
• Verify mounting orientation and secure all screws; confirm wiring connections match original setup.

This oven rack restores a stable cooking surface inside the oven, letting you slide baking sheets, pans and cookware in and out safely. It replaces bent, rusted or missing racks to help your oven perform as intended. What it does:

• Provides a stable shelf for cookware and bakeware during cooking and baking
• Slides into oven rack guides to allow easy insertion and removal of pans
• Replaces warped, bent or missing racks that cause uneven cooking or instability
• Compatible with models that use part number W11256463

• Allow the oven to cool completely before installing or removing the rack.
• Slide the rack into the oven's existing rack guides until fully seated.
• Wear gloves to protect hands from sharp edges and to avoid pinching.
• Do not modify the rack or force it into incompatible guides.

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This leveling foot adjusts the appliance's height at the front to keep the cabinet stable and level. A properly leveled unit helps reduce vibration and noise and ensures doors, drums, and drawers operate smoothly.

• Supports the appliance and provides front height adjustment
• Helps correct rocking, vibration, and excessive noise from an unlevel appliance
• Can improve door alignment and smooth operation when the cabinet is leveled
• Common wear or damage can cause wobbling or difficulty staying level

• Unplug the appliance and, if applicable, turn off the water supply before servicing
• Tip or lift the unit carefully; use a helper to avoid injury
• Thread the new foot into the base and adjust until the cabinet is level and stable
• Tighten any applicable lock nut and recheck level after repositioning the appliance

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.
