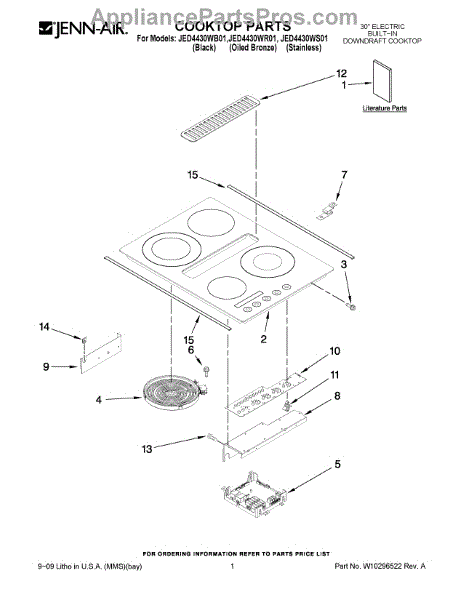

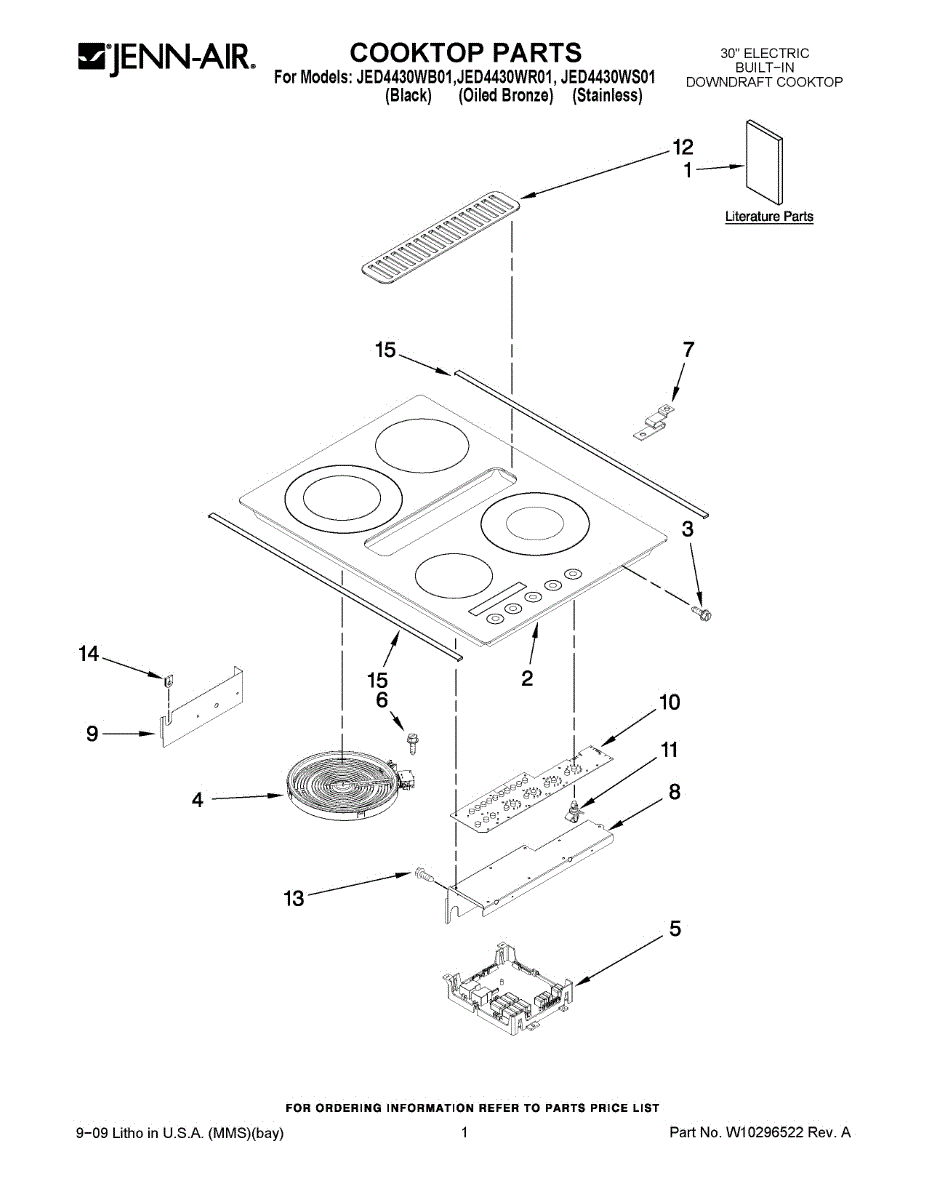

Parts for Maytag JED4430WS01: 01 - Cooktop Parts

This is the cooktop upper glass surface that provides the flat cooking area and houses the heating elements, restoring the look and function of your range. It replaces a cracked, scratched or damaged cooktop surface so cookware sits level and heats properly. What it does:

• Replaces the damaged or cracked cooktop top so burners/heating elements are protected and cookware rests evenly
• Prevents heat loss and reduces risk of food spills contacting internal components
• Helps restore a smooth, easy-to-clean cooking surface and improves appliance appearance
• Compatible with electric range heating elements that mount into the cooktop top

• One cooktop upper glass surface

• Replace only when appliance is disconnected from power; follow OEM disconnection procedures to avoid shock
• Handle carefully to avoid chipping or cracking the glass during installation

This cooktop surface assembly replaces the top cooking surface to restore a smooth, stable area for burners and cookware. It helps maintain a clean look and proper fit for your cooktop components. What it does:

• Replaces a cracked, chipped or otherwise damaged cooktop surface
• Provides a stable mounting surface for burners, grates, and controls
• Restores a flush, sealed cooking area to help contain spills
• Helps eliminate rattling or misalignment caused by warped surfaces

• Disconnect power (and gas if applicable) before beginning any work
• Handle the surface carefully—glass and enamel parts can chip or crack
• Some installs may require removing adjacent trim or control panels; follow OEM instructions

The LF Surface Heating Element is an OEM part for Whirlpool ranges. It is a top burner element responsible for generating heat on the cooktop for cooking. This element ensures consistent and even heating when in use, allowing for efficient cooking performance.

Causes of a bad surface heating element can include normal wear and tear over time, electrical failures, or damage due to overheating or spills. A faulty element may also result from a damaged terminal block or loose connections.

Symptoms of a bad surface heating element include:

• The burner not heating at all
• Uneven heating or hot spots
• The element sparking or producing a burning smell
• Visible damage such as cracks or breaks in the coil

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This radiant surface element uses a ribbon-style heater to provide even heat beneath a glass-ceramic cooktop. Replace a failing burner to restore consistent, reliable heating on the affected cooking zone.

• Provides radiant heat to one surface burner zone beneath the glass top
• Works with the surface control to regulate cooking temperature
• Common fix for a burner that won't heat, heats unevenly, or takes too long to heat
• Replace if the element shows an open circuit when tested for continuity

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the cooktop to cool completely; support the glass top per service instructions to access the element
• Transfer wires from the old element to the new one position-by-position; secure using existing brackets
• Avoid touching the element surface; test operation before reassembly

1800 watt

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This control board relay replaces the relay on the appliance's electronic control to restore reliable switching of high-current components. It helps the control safely turn motors, heaters and compressors on and off as commanded. What it does

• Acts as the high-current switching relay mounted to the electronic control board
• Enables the control board to power motors, heaters or compressors when needed
• Can resolve intermittent or no-operation symptoms caused by a failed relay
• Stop clicking, non-start, or loss of specific functions when replaced

• Disconnect power to the appliance before starting any repair.
• Handle the relay and control board by the edges; avoid touching circuitry.
• Verify harness connectors seat fully and wires are undamaged before reassembly.
• After installation, restore power and run a short test cycle to ensure proper operation.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A replacement support bracket that secures the oven heating element in the cavity so the element stays properly positioned for safe, even heating and reliable operation. Restores stable mounting after breakage or wear. What it does:

• Holds the bake/oven heating element in place so it doesn't sag or contact the oven cavity
• Helps maintain consistent heating and prevents element movement or rattling during use
• Commonly used when the existing support is cracked, bent, or missing
• Works with the oven's internal mounting points to align the element correctly

• Always disconnect power to the appliance before starting any repair
• Handle the heating element carefully; support may attach directly to the element terminals or mounting studs
• Basic hand tools are typically required; refer to your model's service instructions for exact steps

This touch control board replaces the oven's user-interface electronics to restore touch pad functionality and control of cooking functions. It provides a direct-fit replacement for the appliance's front control cluster and restores reliable input response. What it does

• Receives touch inputs and sends commands to the oven's control system so settings like temperature and timers respond correctly.
• Can resolve unresponsive or intermittent touchpad behavior and missing or incorrect control responses.
• Works with the range/oven's control system; does not include display wiring beyond the factory-connected assembly.

• Disconnect power to the appliance at the breaker before starting any service to avoid shock risk.
• Replace the board from the back of the control panel; some models require removing the oven top or control console—refer to the OEM service guide.
• Handle the board carefully to avoid damage from electrostatic discharge; use proper grounding.

This air grille is the top front vent cover for an over-the-range microwave. It channels airflow through the intake/exhaust opening and restores a secure, finished appearance when the original grille is cracked, loose, or missing.

• Covers and protects the microwave's upper vent opening
• Helps direct intake/exhaust airflow as designed
• Restores proper fit when tabs or mounting points are damaged
• Common signs include visible cracks, rattling, or a missing vent cover

• Disconnect power to the microwave before servicing
• Open the door; remove the screws securing the top grille
• Slide the grille to release the side tabs, then pull forward to remove
• Position the new grille and reuse the original screws; hand-tighten to avoid cracking

This rear trim is a factory-style replacement piece that restores the finished back edge of your 30-inch range or cooktop for a clean, factory look and to help protect internal components from debris. What it does:

• Covers and finishes the rear edge of the cooktop or range for a factory appearance
• Helps block dust, grease and debris from entering the control or rear cavity area
• Replaces damaged, bent or missing trim that can catch food and interfering particles
• Fits the standard 30-inch width for compatible Whirlpool-style ranges

• One rear trim piece (30-inch)

• Disconnect power to the appliance before attempting any service
• Usually secures with screws or clips at the rear; inspect mounting points before installation
• Handle carefully to avoid scratching the finish; use appropriate tools and protective gloves
