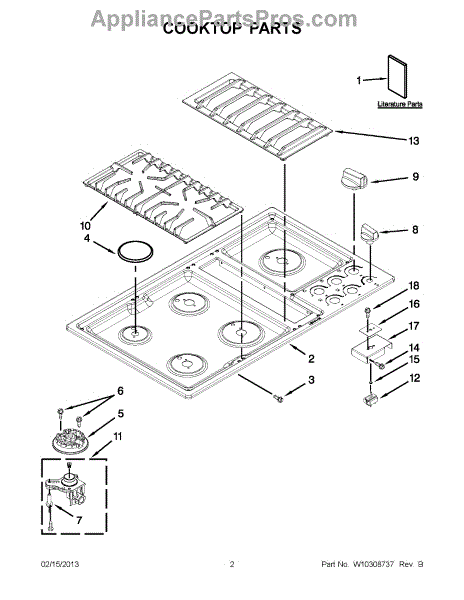

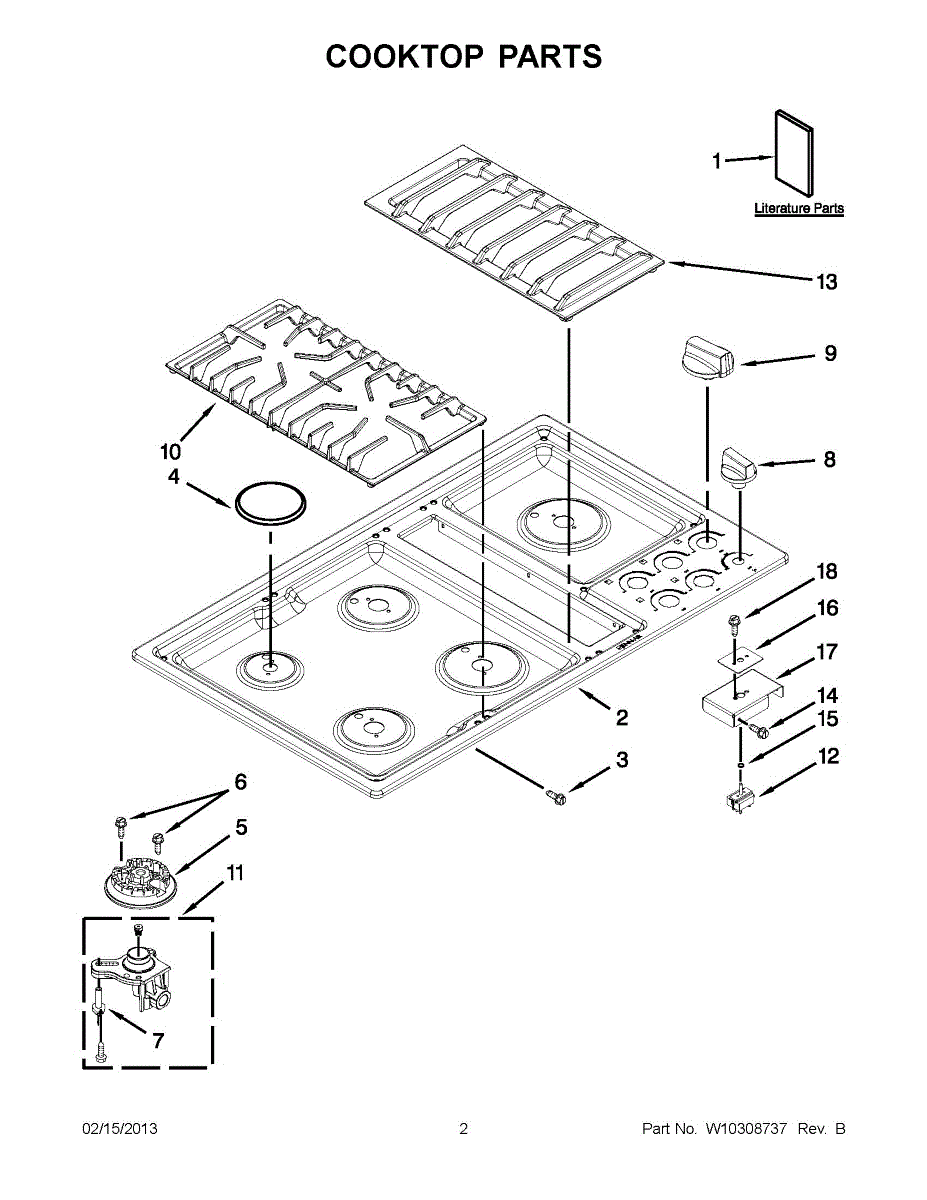

Parts for Maytag JGD3536WS01: 01 - Cooktop Parts

Color: Black

Color: White

Color: Stainless

Color: Wetstone

Color: Wetstone

Color: Wetstone

Color: Black

Color: Black

Color: Black

The Large Burner Head is an OEM part for Whirlpool gas ranges and cooktops. It is designed to fit over the burner base and distribute the gas evenly for efficient and consistent heating.

Causes of a bad burner head can include blockages from food debris or residue buildup, warping or damage from high heat exposure, or general wear and tear over time.

Symptoms of a bad Large Burner Head include:

• Uneven heating or hot spots on the burner
• Yellow or irregular flame patterns
• Difficulty igniting the burner or keeping it lit
• Loud popping or hissing noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Top Burner Igniter is an OEM part for Whirlpool gas cooktops and ranges. This thin metal coil provides the spark to light the burner flames during startup. It is a spark electrode with a male spade connection.

Causes involve cracking of fragile ceramic insulator casings allowing moisture ingress, compromised electrical connections cutting off sparking ability, or general wear reducing spark output strength.

Symptoms of failure consist of:

• Inability to light one or more front gas burners
• Click sounds but no flame present when turning burner knob
• Safety issues arising from unlit gas accumulating

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This replacement control knob restores a secure grip and clear pointer for selecting heat and function settings on compatible Whirlpool appliances. It provides a precise, easy-to-read control surface so you can operate your appliance confidently. What it does:

• Replaces a worn, cracked, or missing control knob to restore manual control
• Fits on standard splined control shafts to select temperature or function positions
• Helps resolve symptoms like loose knob movement, slipping on the shaft, or illegible setting indication
• Matches OEM shape for correct fit and tactile feedback

• Pull off the old knob by hand; align the splines and push the new knob fully onto the shaft until it seats
• If knob is tight or hard to remove, power off the appliance and before using tools
• Do not overtighten or force onto the shaft; avoid using excessive heat or solvents
• If electrical access behind the panel is required, disconnect power first and follow all safety guidelines

This replacement control knob restores a worn or broken stove/oven control interface so you can set temperatures and heat levels accurately. It fits onto the appliance's control shaft for reliable operation. What it does

• Replaces a damaged, cracked, or missing control knob so settings can be changed easily.
• Engages the control shaft spline to select oven/range heat or function positions.
• Helps eliminate slipping or loose-feel when turning the control.
• Appropriate when the original knob is stripped, hard to grip, or will not stay in place.

• Disconnect power to the appliance (and shut off gas if applicable) before servicing.
• Align the knob with the splined control shaft and push straight on until fully seated; do not force.
• If the shaft spline is damaged or the new knob does not fit securely, the control/switch may need replacement.
• Use basic hand tools only; for any electrical or gas-related repairs.

This replacement control knob restores a worn, broken, or missing appliance control for reliable selection of settings. It offers a direct-fit replacement to make dials easy to turn and read again. What it does:

• Replaces a damaged or missing control knob used to select cycle, temperature, or setting
• Provides a secure grip so the selector shaft turns smoothly
• Helps eliminate slipping, cracking, or a knob that spins without engaging
• Restores user control and improves safe, accurate setting selection

• Remove power to the appliance before servicing to avoid electrical shock
• Pull off the old knob; push new knob onto the selector shaft until it seats
• If knob does not fit, do not force onto a mismatched shaft

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

This orifice holder secures the gas orifice at the burner tube, maintaining correct gas flow for reliable ignition and steady flames. It's used on compatible gas cooktop/range burners to restore proper burner performance. What it does

• Holds the burner orifice in the correct position so gas flows evenly to the burner ports
• Helps restore steady, even flame size and consistent ignition
• Commonly replaced when the orifice or holder is damaged, corroded, or misaligned
• Works with 12.5k orifices designed for specified burner output

• One orifice holder (12.5k)

• Turn off the gas supply and unplug the appliance before starting work
• Remove burner grates and caps to access the holder; handle parts carefully to avoid damage
• Reinstall securely so the orifice seats correctly; check for proper ignition and flame pattern after reassembly

This gas surface-burner orifice holder serves the 15K burner position on many cooktops/ranges. It routes gas from the valve to the burner orifice and keeps the burner properly aligned for consistent ignition and flame.

• Channels gas from the surface valve to the orifice for the 15K burner
• Rigidly locates the burner base and orifice for correct flame pattern and ignition
• Common symptoms of a failed holder include: burner clicking but not lighting, weak/small or uneven flame, or intermittent ignition on that burner
• Replacement restores proper alignment and gas flow at the affected burner

• Shut off gas supply and disconnect power; allow the appliance to cool
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Note orientation, disconnect tubing, remove mounting screws, and install the new holder in the same position; transfer any fittings as needed
• After reassembly, perform a soap-and-water leak check at all serviced connections before use

This blower speed switch lets you select the blower/fan speed to restore proper airflow control in your appliance. It replaces a worn or faulty speed selector so the blower will respond correctly when you change settings. What it does:

• Controls the blower/fan speed so the appliance can run at selectable airflow levels
• Replaces a switch that is stuck, unresponsive, or only running at one speed
• Restores reliable electrical connection between the control circuit and blower motor
• Helps eliminate intermittent fan operation or loss of speed selection

• Disconnect power to the appliance before starting any repair.
• Verify wiring placement and retain original fasteners; wiring diagram for correct connections.
• Handle terminals carefully to avoid bending or damaging contacts.

This switch mounting bracket secures a control or door switch in place so the appliance's switch stays aligned and operates reliably. Simple, durable replacement to restore proper switch positioning and prevent intermittent contact. What it does:

• Holds a momentary or microswitch in the correct position for reliable actuation
• Keeps switch contacts aligned to prevent sticking or intermittent operation
• Restores proper function if a broken or bent bracket prevents the switch from engaging
• Prevents vibration-related switch misalignment that can cause erratic behavior

• One switch mounting bracket

• Disconnect power to the appliance before starting any repair
• Inspect surrounding plastic or metal mounting points for damage and replace if needed
• Use appropriate fasteners and do not overtighten to avoid cracking the bracket

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points
