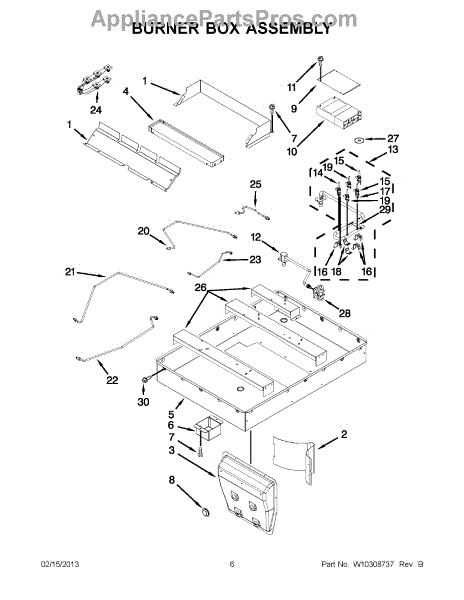

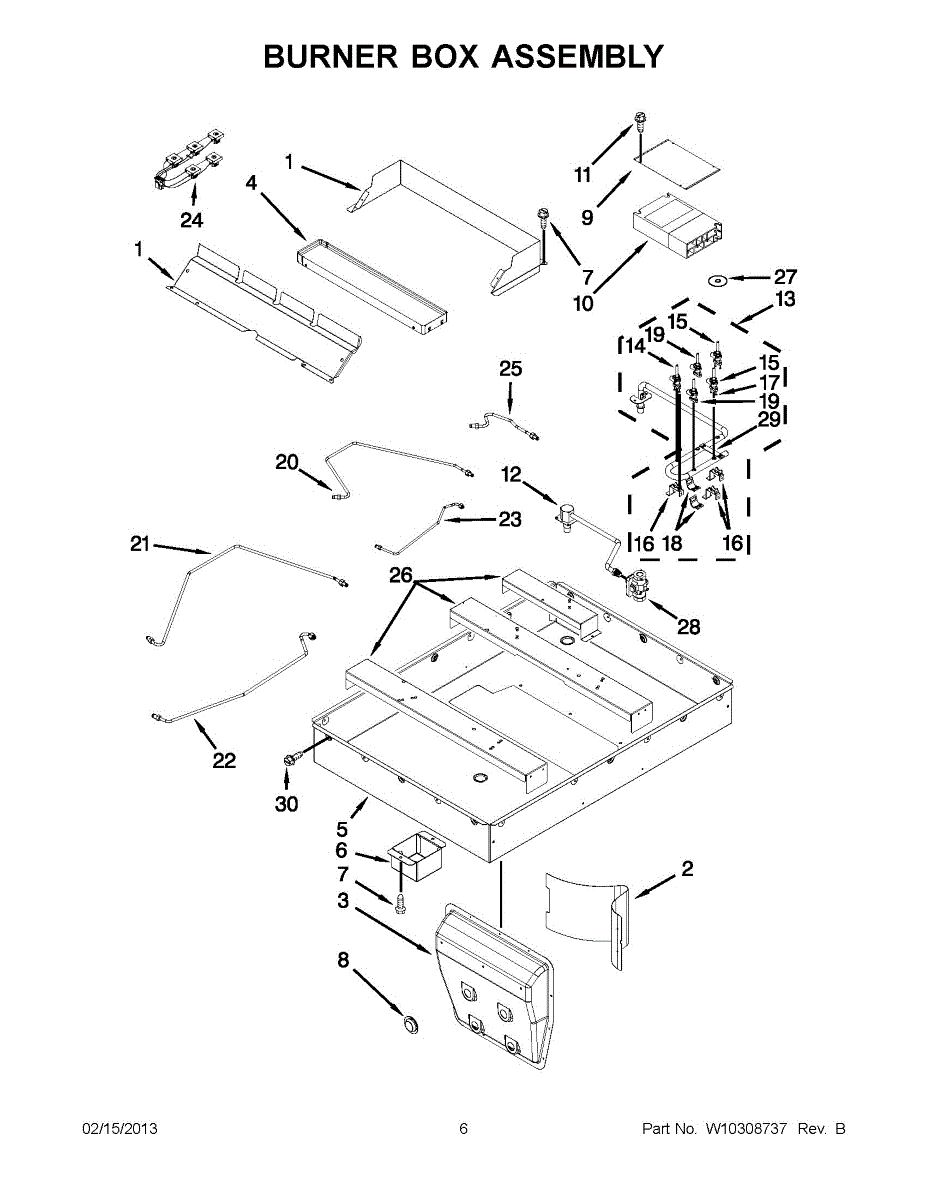

Parts for Maytag JGD3536WS01: 03 - Burner Box Assembly Parts

This replacement drip tray catches and channels excess water beneath the appliance to help prevent puddles and floor damage. It restores the original drain path so condensate and minor leaks drain safely away. What it does:

• Collects and directs water away from the appliance base to prevent pooling on the floor
• Helps contain leaks from defrost or drain systems to limit damage to surrounding areas
• Can reduce musty odors and water stains caused by trapped moisture
• Fits into the appliance base to restore original water collection and drainage

• One drip tray

• Disconnect power to the appliance before servicing
• Remove lower access panels or kickplate as needed to access the tray
• Align the tray with the chassis rails or mounting tabs and slide or snap into place
• Inspect surrounding seals and drain paths; if you find corrosion or other damage, replace those parts as needed.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is the spark ignition module for gas cooktops and ranges. It generates the high-voltage pulses that light the surface burners, restoring consistent ignition when multiple burners won't spark or there's no clicking when a knob is turned. What it does:

• Sends high-voltage pulses to the surface igniters when a burner switch is turned on
• Distributes spark to ignite gas at the burners
• Failure may cause no spark at any burners, weak or intermittent sparking on several burners, or burners that only light with a match

• One spark module

• Disconnect power and shut off gas supply before servicing
• Access location varies by model
• Move wires over one at a time to maintain correct connections
• Secure the module and test all burners for proper spark before reassembly

• If only one burner won't spark while others work, check that burner's igniter electrode and the switch harness before replacing the module.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement burner valve that controls gas flow to a surface cooktop burner, restoring reliable flame control for safer, consistent cooking. Use this valve when a burner has low or no flame, uneven flame, or won't respond to knob adjustments. What it does:

• Regulates gas flow to a single surface burner so you can adjust flame size and cooking heat.
• Replaces valves that cause burners to fail to light, produce weak or sputtering flames, or not change flame level.
• Restores normal burner operation when the original valve is worn, leaking, or damaged.
• Compatible with gas cooktops and ranges.

• Turn off the gas supply and unplug the appliance before starting any repairs.
• Use appropriate hand tools; avoid overtightening fittings or damaging gas lines.
• After installation, check all connections for leaks (soap-and-water test) and verify proper burner ignition and flame.

The Screw is an OEM part for Whirlpool cooktop. It is a small yet vital component that joins together other parts of the range to create a cohesive appliance. The screw is responsible for tightly securing internal components like the oven cavity walls, heating elements, and outer door during operation.

Causes of a bad screw can include wear and tear over time due to repetitive heating and cooling cycles, or damage from handling that results in bending or stripping of the threads.

Symptoms of a bad screw include:

• Detached or damaged internal range components
• Issues with the door like misalignment or inability to latch securely
• Improper heat circulation and hot or cold spots in the oven
• Component malfunctions if mounting positions are compromised

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This burner valve controls gas flow to a single cooktop burner, restoring consistent ignition and flame control. Replacing a worn or leaking valve helps return reliable heat and proper burner performance. What it does:

• Regulates gas to one surface burner so the flame lights reliably and responds to control adjustments.
• Commonly fixes symptoms like a burner that won't light, weak or uneven flame, or erratic heat.
• A faulty valve can cause gas leaks or persistent ignition issues; replacing the valve reduces those risks.
• Works with the range/cooktop valve assembly to maintain safe, steady burner operation.

• Turn off gas supply and electrical power before attempting any service; if you smell gas, leave the area.
• Gas valve replacement is a high-risk repair.
• Inspect fittings, gaskets, and connections for damage and test for leaks after installation with an approved method.
• Do not force fittings; use correct replacement hardware and follow appliance manufacturer instructions.

This switch-ignitor assembly controls the spark/ignition signal that lights the burner or gas valve, restoring reliable ignition so the appliance lights when the cook control is activated. Designed to replace a worn or failed ignitor switch. What it does:

• Sends the ignition/spark signal to the burner when the control calls for heat
• Helps stop ignition attempts when the control is off or safety interlocks are engaged
• Commonly replaced when burners fail to light or clicking/sparking is intermittent
• Matches OEM function to maintain original ignition behavior

• One switch-ignitor assembly

• Disconnect power and gas supply before beginning any repair
• Only access internal components after panels are removed per service instructions
• Verify proper wiring orientation and secure connectors; replace any damaged clips or terminals

Gas valve shaft seal.

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
