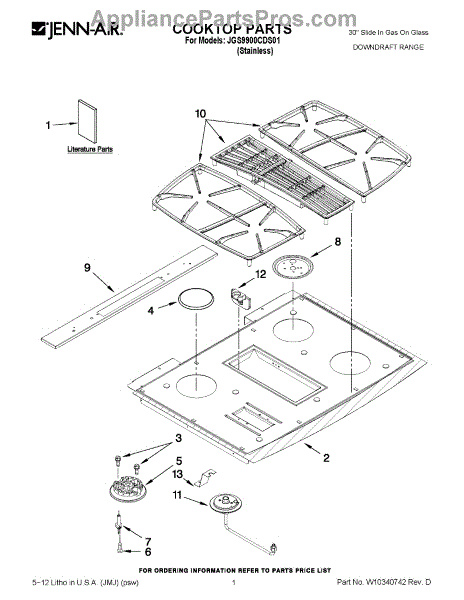

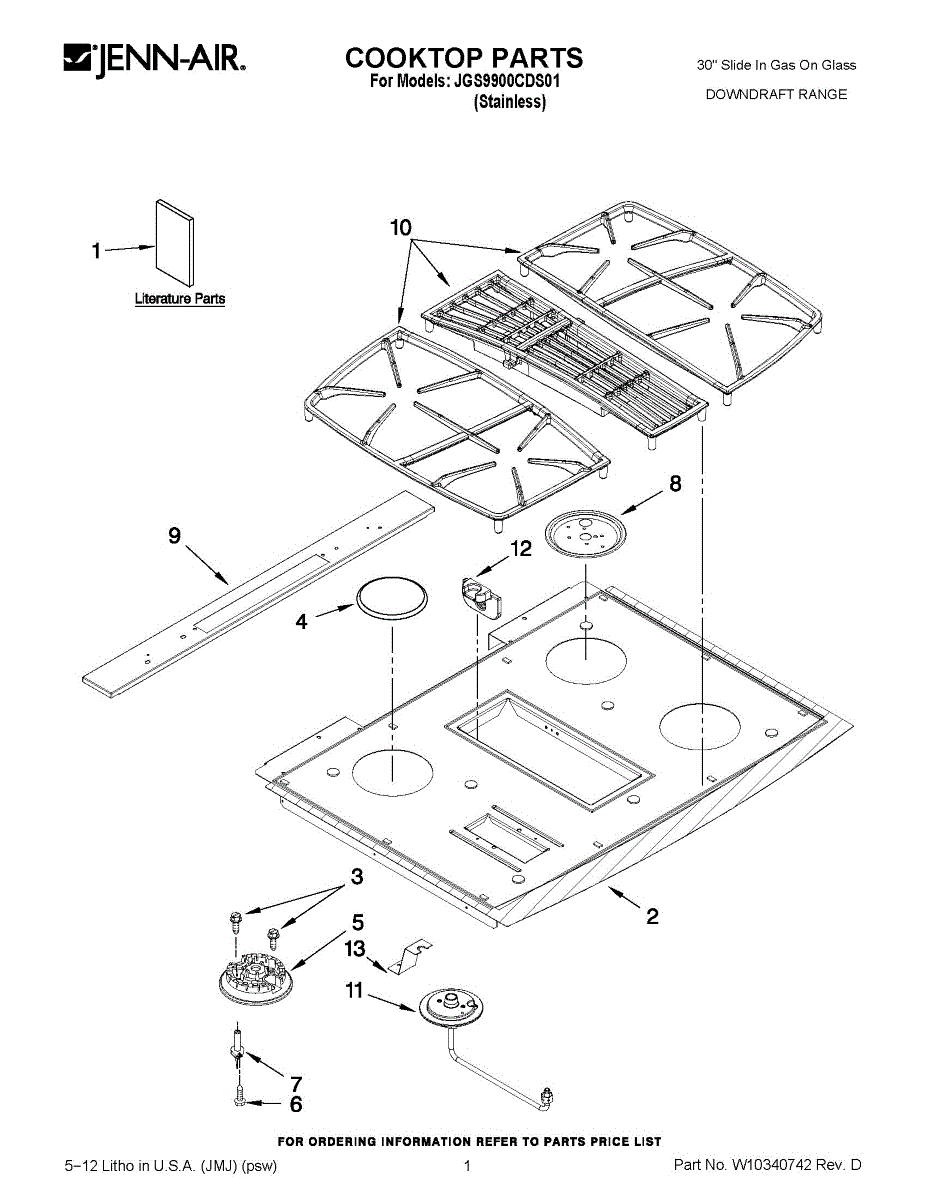

Parts for Maytag JGS9900CDS01: 01 - Cooktop Parts

Color: Black

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Note: This is a kit with all burner caps. Color: Black

This surface burner cap sits atop the burner head to shape the flame and protect the burner from spills. Replacing a chipped, warped, or missing cap restores proper ignition and even, efficient heating.

• Directs and evens the flame for consistent cooking
• Shields the burner head and igniter from spills and debris
• Common symptoms of a bad cap include uneven or yellow flames, delayed ignition or repeated clicking, weak heat, or flames that lift/sputter
• Replace if the cap is cracked, chipped, warped, or heavily coated with residue

• Allow the cooktop to cool; remove the grate and lift off the old cap
• Clean the burner head ports and seating surface; ensure the igniter is clean and intact
• Center the new cap on the burner head so it sits level and fully seated
• Restore power/gas and test burner; reseat the cap if the flame is uneven

The Large Burner Head is an OEM part for Whirlpool gas ranges and cooktops. It is designed to fit over the burner base and distribute the gas evenly for efficient and consistent heating.

Causes of a bad burner head can include blockages from food debris or residue buildup, warping or damage from high heat exposure, or general wear and tear over time.

Symptoms of a bad Large Burner Head include:

• Uneven heating or hot spots on the burner
• Yellow or irregular flame patterns
• Difficulty igniting the burner or keeping it lit
• Loud popping or hissing noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Top Burner Igniter is an OEM part for Whirlpool gas cooktops and ranges. This thin metal coil provides the spark to light the burner flames during startup. It is a spark electrode with a male spade connection.

Causes involve cracking of fragile ceramic insulator casings allowing moisture ingress, compromised electrical connections cutting off sparking ability, or general wear reducing spark output strength.

Symptoms of failure consist of:

• Inability to light one or more front gas burners
• Click sounds but no flame present when turning burner knob
• Safety issues arising from unlit gas accumulating

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This replacement burner grate provides a stable cooking surface for gas cooktops and ranges, helping cookware sit level for safer, more consistent cooking. Designed to match OEM fit and function for compatible Whirlpool gas units. What it does:

• Supports pots and pans directly over the burner for stable cooking
• Maintains proper clearance for flame and even heat distribution
• Worn, cracked, or misshapen grates can cause cookware wobble or uneven cooking
• Replacing a damaged grate restores proper cookware support and cooktop safety

• One burner grate

• Allow cooktop to fully cool and shut off gas before removing or installing the grate
• Lift the grate straight up; no tools are typically required
• Verify the grate seats flat and does not rock before using the burner
• Clean grate and surrounding cooktop area as recommended by the manufacturer

This small holder secures a local assembly inside compatible Whirlpool appliances to keep components aligned and stable during operation. Replacing a damaged holder restores proper fit and reduces noise or loose parts. What it does:

• Clips or seats a nearby component so it stays in the correct position during use
• Prevents rubbing, vibration, or misalignment that can cause noise or premature wear
• A cracked or missing holder can allow parts to shift, rattle, or come loose
• Simple, low-profile part used where a secure fit is required

• One holder ORF retainer

• Turn power off and unplug the appliance before servicing
• Access may require removing panels or trim—keep fasteners organized
• Inspect surrounding clips and mounts; replace any damaged hardware for a secure fit

This orifice holder secures the 5K gas orifice in place on compatible gas burners, keeping the orifice aligned for consistent flame performance and safe operation. It's a small but essential mounting component. What it does:

• Holds the 5K orifice firmly at the burner connection to maintain correct alignment
• Helps ensure consistent gas flow to the burner for steady, even flames
• A damaged or loose holder can cause a weak, uneven, or intermittent flame
• Works with the burner assembly to support reliable ignition and heat output

• One orifice holder (5K) as shown

• Turn off gas supply and power to the appliance before servicing
• Access may require removing the burner cap and grates or front panels
• Handle small components carefully; keep track of fasteners and orientation

This ORF holder is a small retainer that secures an ORF assembly in place, helping maintain proper alignment and reliable operation. Replaces a worn or broken holder to restore secure mounting and reduce rattling. What it does:

• Secures the ORF assembly or related component to prevent movement or misalignment
• Prevents rattling, vibration noise, and intermittent contact caused by a loose or damaged retainer
• Helps maintain proper fit so the related part can operate as designed
• Commonly replaced when the original holder is cracked, broken, or missing

• One ORF holder

• Disconnect power before servicing to avoid shock or injury
• Remove surrounding trim or panels carefully to access the holder without damaging adjacent parts
• Inspect mating surfaces and hardware; replace any damaged clips or screws as needed

This dual orifice holder secures two burner orifices in gas ranges, keeping the burner orifices aligned for proper gas flow and stable flames. It helps restore consistent ignition and even heat across affected burners. What it does:

• Holds and positions two burner orifices in the manifold or burner assembly
• Keeps orifices aligned to ensure proper gas flow to each burner
• Can resolve symptoms like weak, uneven, or inconsistent burner flames and ignition problems
• Works as a replacement for damaged, corroded, or bent orifice mounting hardware

• One dual orifice holder

• Turn off gas supply and electrical power before servicing; follow local codes
• Remove burner caps and access the orifice area per your model's service instructions
• Retain correct orientation when installing; avoid bending or stressing the orifice
