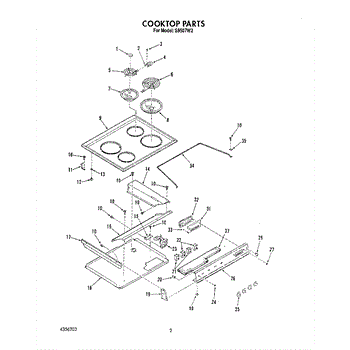

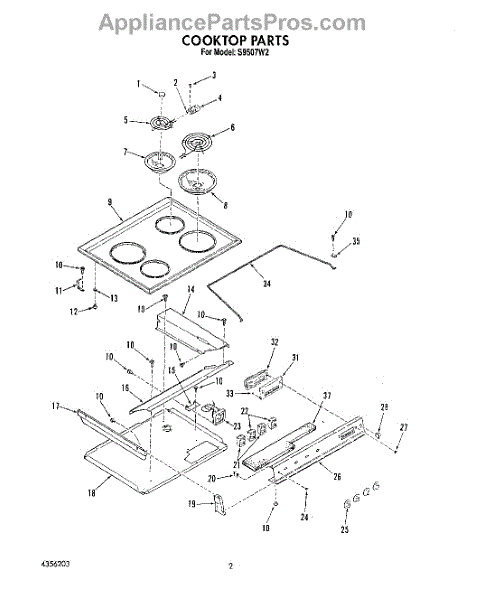

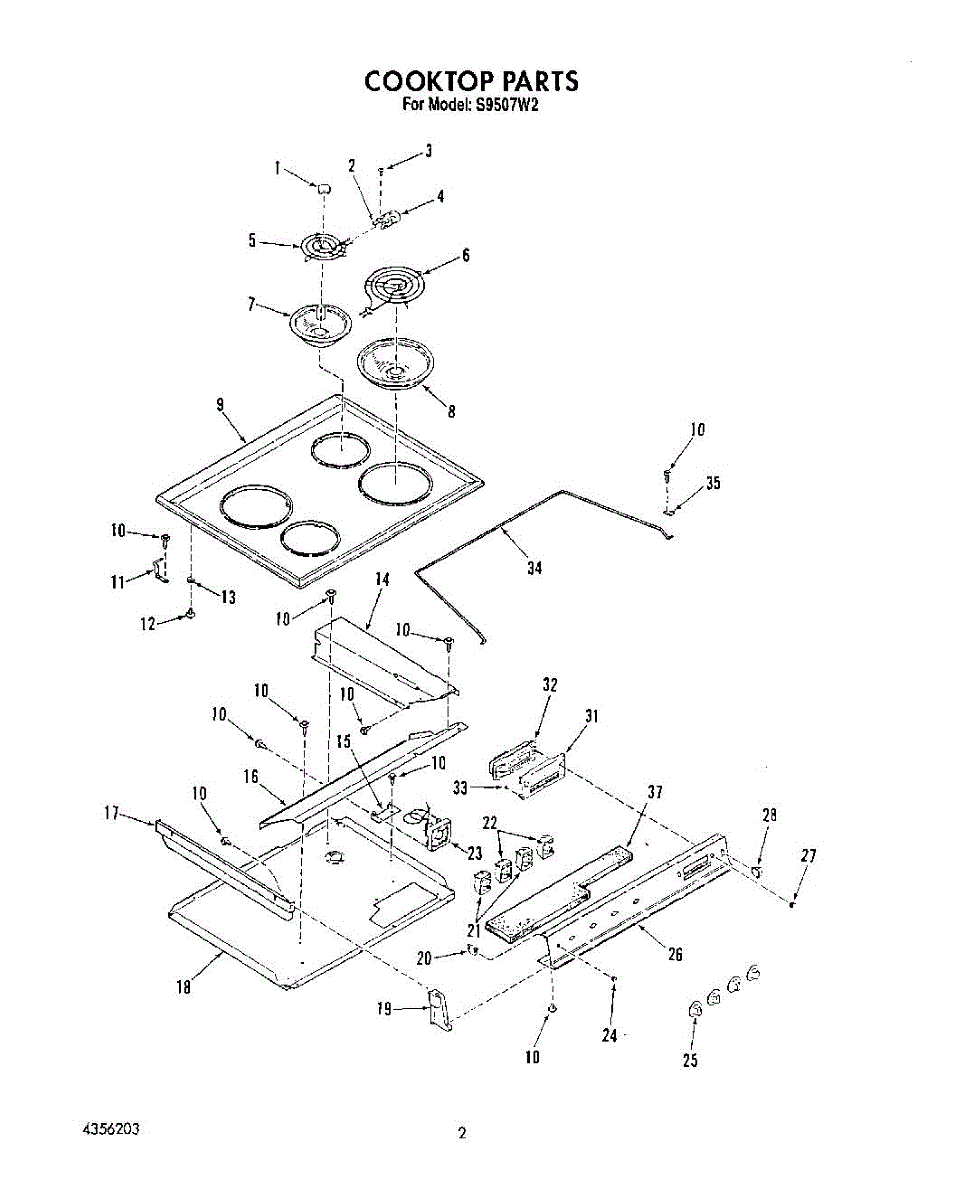

Parts for Roper S9507W2: 02 - Cooktop, Lit / Optional Parts

This is a metal bracket only, for receptacle kit, which includes this bracket, order 330031.

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Surface Element is an OEM part for Whirlpool ranges. This part provides heat to the cooking surface, allowing for the preparation of food.

Common causes of a bad surface element include electrical faults, physical damage from heavy cookware, or degradation from constant heating and cooling cycles.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage such as burns or breaks in the coil
• Sparking or unusual noises when the element is turned on

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replacement 8-inch surface heating element that restores reliable top-of-range heating for electric cooktops. Designed to match OEM fit and restore proper burner operation when the original element fails or heats unevenly. What it does:

• Produces heat for an 8-inch cooktop burner so cookware can reach cooking temperatures.
• Replaces a failed or damaged surface element that won't heat, heats intermittently, or heats unevenly.
• Fits ranges that use coil-style terminal surface elements; installs into the cooktop terminal block for direct replacement.
• Restores consistent heat output for normal stovetop cooking tasks.

• Disconnect power at the breaker before servicing the range to avoid shock.
• Allow the cooktop and element to cool completely and wear protective gloves to avoid cuts.
• Inspect the element terminals and terminal block for damage; seat the element fully into the terminal connections for a secure fit.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

The Drip Pan (LG) is an OEM replacement part for Whirlpool ranges and ovens. It is a durable metal tray designed to catch any spills, drips, or boil-overs that may occur during the cooking process, helping to keep the oven cavity clean and preventing potential messes or smoke from burnt-on spills.

Symptoms of needing to replace the drip pan include:

• Warping or discoloration from excessive heat exposure
• Cracks or breaks in the pan material
• Difficulty sliding the pan in and out of its designated position

Causes of a drip pan failure can include general wear and tear from repeated use and high temperatures, physical damage from impact or abrasion, or corrosion or deterioration due to exposure to acidic food spills or cleaning agents.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For 6-inch drip bowl order W10196406RW

Specs: 10-16 x 1/2 inch.

This fan bracket is the mounting support that secures a range/vent/evaporator blower assembly so the fan stays aligned and operates quietly. It restores proper fan placement to reduce wobble and intermittent contact. What it does

• Holds the fan or blower motor assembly in the correct position to maintain stable rotation.
• Prevents the fan from rubbing or vibrating against the housing, which can cause noise.
• Helps restore airflow path when a damaged bracket allows the fan to shift.
• Addresses symptoms such as noisy or rubbing fan operation, intermittent fan contact, or reduced airflow due to misalignment.

• One fan bracket as shown.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing panels or the blower housing—keep fasteners organized.
• Inspect surrounding mounting points and replace any damaged screws or clips for a secure fit.

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

The Infinite Switch is an OEM part for Whirlpool cooktops and ranges, designed to control the temperature of the burners. This critical component allows for the precise adjustment of heat levels, providing the flexibility needed for various cooking tasks, from simmering sauces to boiling water.

Causes of these symptoms can vary from electrical issues within the switch, such as faulty contacts or internal components, to physical damage from wear and tear or overheating. It's essential to address these issues promptly to maintain the safety and functionality of your cooktop or range.

Symptoms of a bad Infinite Switch include:

• Burners not heating to the set temperature
• Inability to adjust the heat level of the burner, resulting in it being stuck on high, low, or off
• The burner not turning on at all

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Infinite Switch is an OEM part for Whirlpool cooktops and ranges, designed to control the temperature of the burners. This critical component allows for the precise adjustment of heat levels, providing the flexibility needed for various cooking tasks, from simmering sauces to boiling water.

Causes of these symptoms can vary from electrical issues within the switch, such as faulty contacts or internal components, to physical damage from wear and tear or overheating. It's essential to address these issues promptly to maintain the safety and functionality of your cooktop or range.

Symptoms of a bad Infinite Switch include:

• Burners not heating to the set temperature
• Inability to adjust the heat level of the burner, resulting in it being stuck on high, low, or off
• The burner not turning on at all

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Red indicator lens that snaps over a control-panel indicator light to restore visibility and color. Replaces cracked, faded, or missing indicator covers so status lights are easier to see during use. What it does:

• Covers and protects the control-panel indicator light from dirt and damage.
• Restores the red color and improves visibility when the original lens is faded or discolored.
• Keeps light directed through the panel for a clear status signal.
• Common symptoms: cracked or missing lens, washed-out/red light appears dim or uneven.

• Disconnect power to the appliance before attempting replacement to avoid shock or accidental activation.
• Typically snaps into the control-panel opening; some models may use small retainers or screws—retain any fasteners from the original part.
• Replace only with the correct lens to ensure proper fit and color.
• If the indicator still appears dim after replacing the lens, inspect the bulb/LED and wiring (replace only after verifying power is off).

Color: Black. Instruction sheet included.
