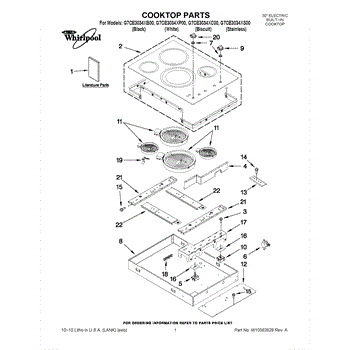

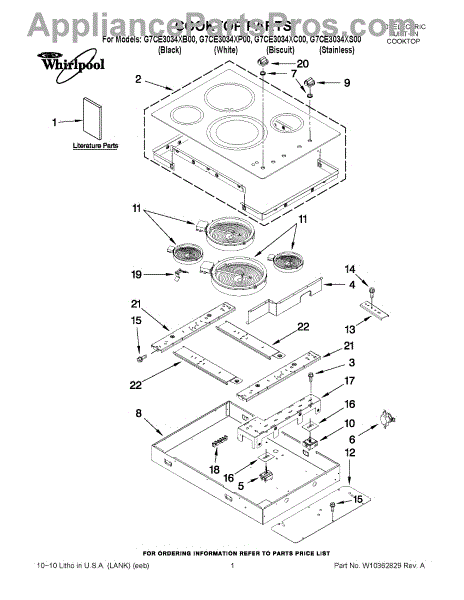

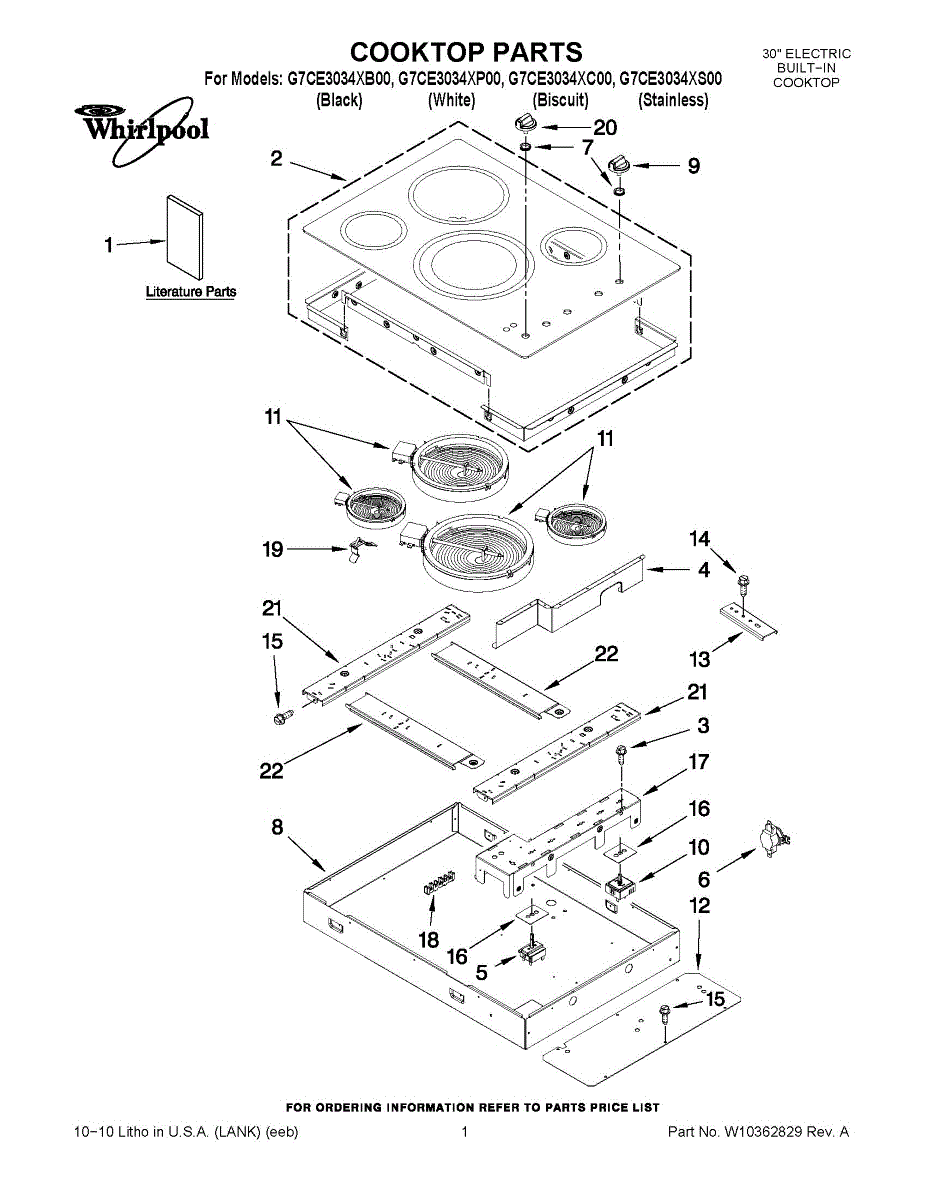

Parts for Whirlpool G7CE3034XP00: 01 - Cooktop Parts

Color: Bisque

Color: White

Color: Black w/Stainless trim

Color: Black

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

This heat shield protects nearby cabinet and internal components from excess heat by directing and containing heat away from sensitive parts. It helps prevent heat damage and keeps the appliance operating safely. What it does:

• Shields surrounding panels and components from direct contact with heat sources
• Reduces risk of scorched or discolored cabinet surfaces near the heater or burner
• Helps keep insulation and wiring from overheating
• Can stop heat-related noises from expanding metal near the heating area

• One heat shield

• Turn off and unplug the appliance (or shut off gas supply) and allow all components to fully cool before starting
• Use appropriate hand protection; shield edges may be sharp
• Reinstall fasteners snugly but avoid overtightening; follow OEM diagram for correct placement

Fix burners stuck on high or won't adjust temperature with this selector switch. Restores reliable control of cooktop functions. Moderate DIY repair.

This high-limit thermostat is a temperature safety switch that helps prevent overheating by opening the circuit when temperatures exceed safe limits. It restores normal operation once the temperature cools, protecting the appliance and reducing fire risk. What it does:

• Monitors internal temperature and opens the circuit if heat gets too high
• Prevents overheating that can cause damage or burn odors
• Commonly replaces a failed or intermittently tripping thermal safety switch
• Works as part of the appliance's temperature-safety system, not a primary temperature control

• Disconnect power to the appliance before attempting replacement
• Observe proper wiring orientation and secure terminal connections
• Replace only with the exact part specified for your appliance

Black rubber grommet that fits around cooktop control knobs. Prevents debris from entering the control panel. Replace if cracked, missing, or worn.

Bisque control knob for cooktop. Replaces broken, cracked, or missing knobs on burner controls. Direct-fit part restores appearance and function.

White control knob for cooktop burner adjustment. Replaces cracked, broken, or missing knobs. Installs on front control panel for temperature control.

Black control knob for cooktop burner heat adjustment. Replaces broken, cracked, or missing knobs. Installs on the control panel for precise cooking.

This stainless steel control knob fits over the stem of a surface burner or element switch on your range or cooktop. It allows you to select the desired heat level for cooking. Replace this knob if it is cracked, the markings have worn off, or it no longer grips the control stem properly and spins without adjusting the heat.

Fixes burner that won't heat or stays on one temperature. This infinite switch restores variable heat control to your cooktop surface element.

Burner stuck on high or power light won't turn off? This infinite switch regulates cooktop element heat. DIY-friendly repair restores smooth temperature control.

Burner stuck on high heat or won't regulate temperature? This infinite switch restores precise control. Straightforward DIY repair with a screwdriver.

Burner stuck on high or won't heat? This infinite switch controls cooktop element temperature. Common DIY repair taking 30-60 minutes with basic tools.

This 300mm, 3000W radiant surface element restores the large cooking zone on a smooth-top range or cooktop. Replace it to bring back consistent, even heating when the large burner stops working or only heats partially. What it does:

• Supplies radiant heat to the large surface burner beneath the glass cooktop
• Common fix for a burner that won't heat, only part of the ring glows/heats, or shows a visible burned spot/break
• Helps restore even heating and proper cycling when the original element has failed

• 1 radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool fully before servicing
• Lift/remove the glass top per service instructions to access the elements; support the glass and keep insulation in place
• Transfer mounting hardware and wires one at a time to matching terminals; handle the ceramic element carefully—it is fragile
• Reassemble and test the burner for proper operation before returning to use

This is a 1200-watt, 6-inch radiant heating element designed for a glass-top electric range. It sits beneath the cooktop glass and radiates heat upward to the cooking surface when activated. Replace this element if the burner does not heat, heats unevenly, or fails to reach the correct temperature despite the control being set properly.

Burner not heating? This radiant surface element restores heat to your glass cooktop. DIY-friendly repair, typically done in 15 minutes with our video.

Hardware kit with screws and brackets to secure cooktop components. Replaces worn, missing, or damaged mounting fasteners for proper fit and stability.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fix a loose or wobbly burner element with this push spring. Restores proper tension to keep your heating element securely seated and maintains stable contact.

White control knob for cooktop burner adjustment. Replaces cracked, broken, or missing knobs. Installs on the control panel for precise heat setting.

Color: Bisque

Color: Stainless

Black control knob for cooktop burner adjustment. Replaces worn, cracked, or missing knobs. Installs on the control panel for precise heat settings.
