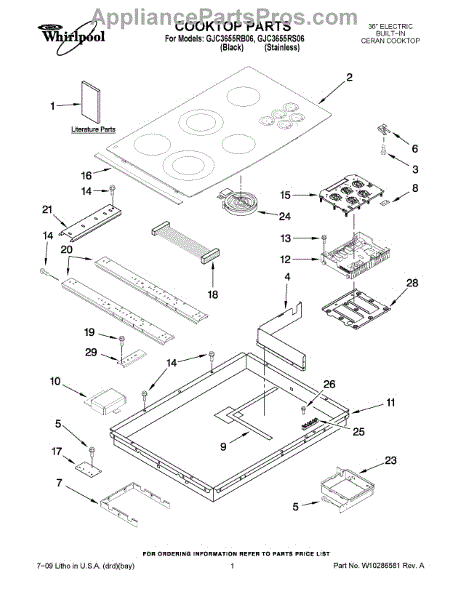

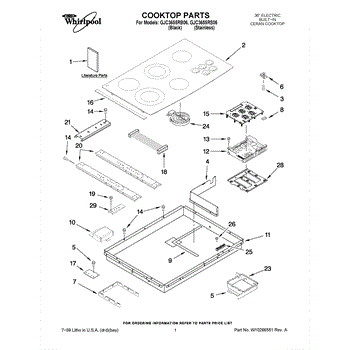

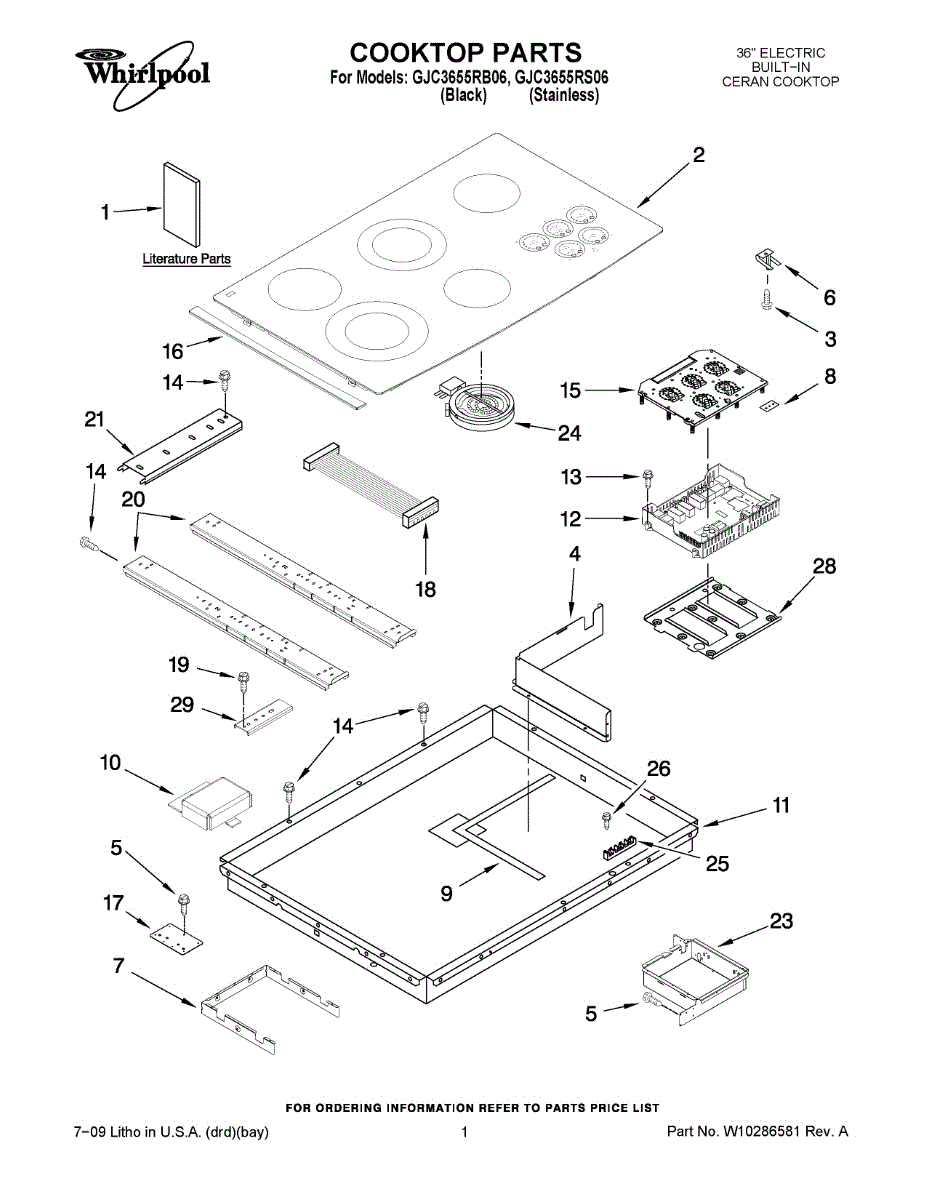

Parts for Whirlpool GJC3655RS06: 01 - Cooktop Parts

Size: 6-32 x 3/8 inch.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement tension spring restores proper tension and movement for the linked assembly, helping components return to position and operate smoothly. Designed to match the original spring's shape and function for reliable performance. What it does:

• Provides return tension for moving parts so doors, levers, or linkages operate correctly
• Helps maintain correct alignment and prevents sagging or binding
• Replaces worn or stretched springs that cause sluggish or uneven operation
• Common symptom: assembly won't return to its resting position or feels loose

• One tension spring

• Disconnect power (and water if applicable) before beginning any repair
• Use care handling springs under tension; wear eye protection
• Remove any retaining clips or brackets in the order shown in the service diagram

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

This wire cover is a protective sleeve that helps route and shield appliance wiring to reduce wear and prevent accidental contact. It restores a neater harness run and helps maintain safe electrical routing inside the appliance. What it does:

• Protects wires from abrasion and chafing against sharp edges or moving parts
• Helps prevent exposed conductors that can cause shorts, arcing, or burning smells
• Keeps wiring bundled and routed to reduce pinching and stress on connectors
• Reduces risk of intermittent electrical issues caused by damaged insulation

• Disconnect power before beginning any service to avoid shock or injury
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Slide cover over the wiring harness or route harness through sleeve as needed; secure with existing clips or approved fasteners

Screw for control panel.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This right-side cooktop trim wing restores the finished edge on a Ceran-style glass cooktop, improving appearance and protecting the cooktop edge from spills and chips. Fits the right-hand side of the cooktop trim assembly. What it does:

• Replaces a damaged or worn right-side trim wing to restore a tight, finished cooktop edge
• Helps prevent debris and liquids from getting under the cooktop glass
• Improves the overall look of the cooktop by matching the factory trim
• Works as part of the cooktop trim assembly for a proper fit and seal

• One right-side cooktop trim wing

• Recommended for technicians or experienced DIYers; verify part fits your exact cooktop before installing
• Remove power to the appliance before beginning work to avoid shock or injury
• Handle glass cooktop components carefully to avoid chipping or cracking
• Use factory fasteners and follow the manufacturer's disassembly/reassembly sequence for proper fit

This surface heating element replaces a damaged or non-working top burner on compatible electric ranges, restoring even heat for everyday cooking. It installs into the cooktop receptacle and connects to the range's terminal block. What it does:

• Heats cookware when the burner control is turned on, providing cooking power for pots and pans
• Replaces cracked, visibly damaged, or non-heating burners to restore normal operation
• Can resolve symptoms such as no heat, weak or uneven heating, or a burner that won't energize
• Works with the cooktop's receptacle and terminal connections—matches OEM size and wattage for intended models

• Disconnect power to the range at the breaker or unplug before servicing
• Lift the cooktop or remove the drip pan as needed so the element can be pulled straight out of its receptacle
• Ensure the element is fully seated in the terminal block and the cooktop surface is secured before use

This 1500W surface heating element replaces a damaged or worn top burner to restore proper cooktop heating. It's designed for direct-fit replacement to get one burner heating reliably again. What it does:

• Heats cookware on the cooktop for stovetop cooking tasks.
• Replaces an element that no longer heats or only heats intermittently.
• Restores even heating when a burner is cooler than expected.
• Replaces elements with visible damage, breaks, or burnt spots.

• One surface heating element (1500W top burner).

• Disconnect power at the house breaker before starting; element will be hot and can cause burns.
• Allow the cooktop to cool completely and handle the element by its terminals or edges.
• Ensure correct terminal alignment and secure connections; avoid forcing the element into place.

This 1200W ribbon surface heating element replaces a faulty cooktop burner to restore even, consistent heat for stovetop cooking. It fits into the range's burner receptacle and reconnects to the existing terminal block. What it does:

• Heats cookware for stovetop cooking; provides the heating surface for a single top burner.
• Replaces a worn or burned-out element that no longer reaches temperature.
• Fixes burners that heat unevenly, have cold spots, or fail to come on.
• Works with the stove's existing receptacle and wiring—matches OEM element design.

• One surface heating element (1200W ribbon top burner).

• Disconnect power to the appliance at the breaker before servicing to avoid shock.
• Allow the cooktop and old element to cool fully before handling.
• Handle terminals carefully; confirm proper alignment with the receptacle before securing.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Range Door Handle Screw is an OEM part compatible with Whirlpool ranges. Over time, the door handle screw may become loose due to frequent use or other external factors. If the screw is damaged or missing, it can lead to a loose or wobbly handle, making it difficult to open and close the range door securely.

Size: 10-16” x 7/8”

Symptoms of a faulty or missing screw may include:

• Loose or wobbly handle
• Difficulty in opening or closing the range door
• Handle coming off from the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model
