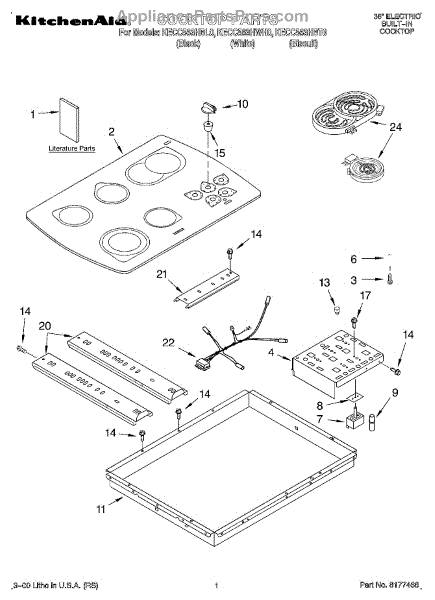

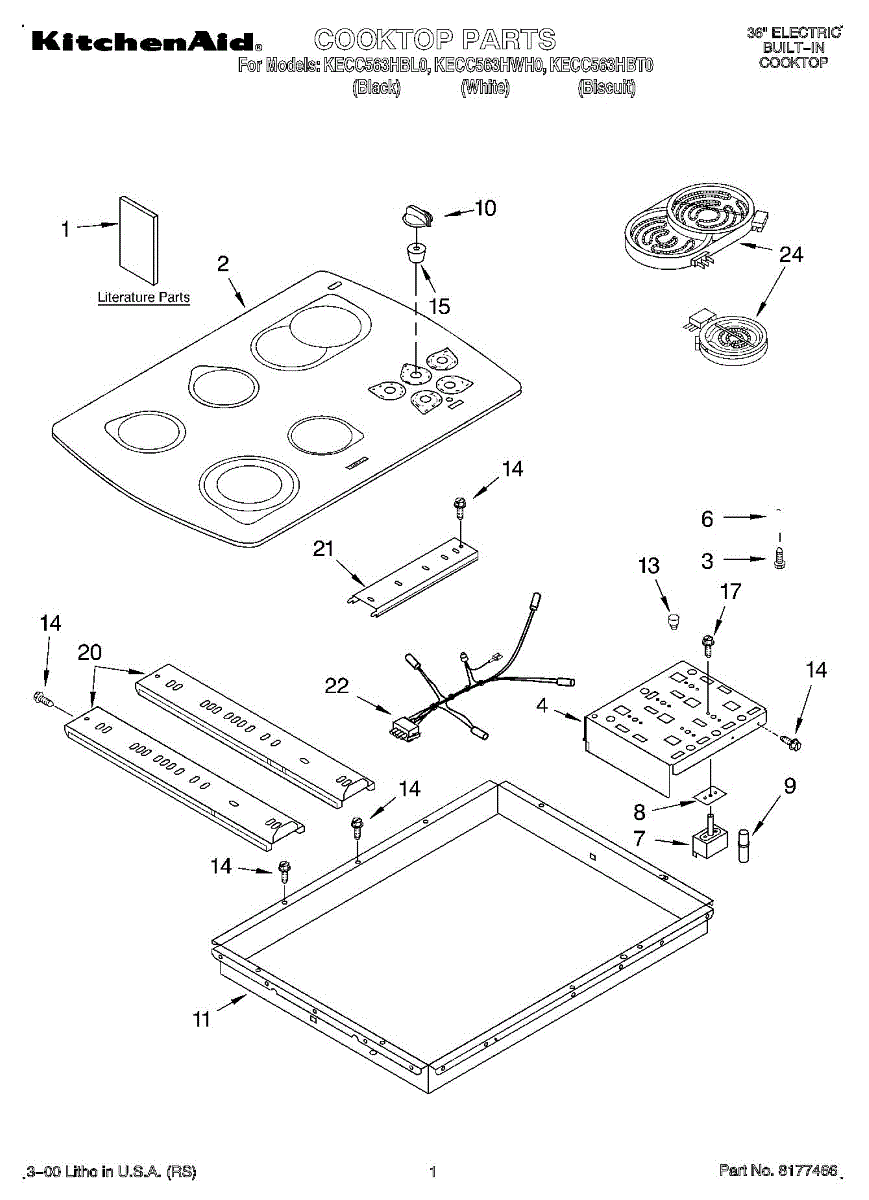

Parts for Kitchenaid KECC563HBL0: 01 - Section Parts

Size: 6-32 x 3/8 inch.

Size: 6-32 x 3/8 inch.

This infinite switch controls power to a 6-inch surface element on an electric range or cooktop, allowing smooth heat adjustment from low to high. Replace a worn switch to restore consistent burner control and cooking performance.

• Regulates power to a 6-inch surface burner as you turn the knob
• Provides variable heat by cycling power on and off at the selected setting
• Typical failure symptoms: burner won't heat, only heats on high, won't adjust temperature, or won't shut off

• Disconnect power at the breaker before servicing
• Pull off the control knob and access the switch from the control panel; note/take a photo of wire locations
• Transfer wires to the new switch one at a time to match terminals; mount the switch and reinstall knob/panel
• Restore power and test the 6-inch burner through all settings

This surface burner infinite switch regulates power to a cooktop element, letting you set and maintain the heat you choose. Replace a worn control to restore accurate temperature adjustment and reliable on/off operation.

• Regulates on/off cycling of power to the surface element to achieve the selected heat level
• Helps address issues like a burner that won't heat, is stuck on high, heats inconsistently, or won't turn off
• Restores smooth temperature changes as you turn the control knob
• Typical failure signs include dead burner, runaway heat, or erratic temperature control

• Disconnect power to the range or cooktop at the breaker before servicing
• Remove the control knob and open the control/back panel to access the switch
• Tag and transfer wires one at a time to the matching terminals on the new switch
• Reassemble and test the burner from low to high to confirm proper cycling

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

This indicator light assembly is a direct-fit replacement that restores the illuminated status signals on your appliance's control panel, helping you see cycle progress and active functions at a glance. What it does:

• Replaces a worn, cracked, or non-illuminating control panel indicator so status lights are visible again
• Illuminates to show active cycles, selected functions, or alerts depending on your model's control logic
• Common symptoms it addresses: no light, dim or flickering indicator, or broken lens/assembly
• Fits into the control/display area and mates with existing wiring and mounting points

• Always disconnect power to the appliance before starting any repair to avoid shock
• Typically accessed from the appliance control or console; may require removing the console or control panel
• Handle lens/assembly carefully to avoid scratching or damaging the light surface
• Test functionality before fully reassembling the unit

Color: Almond.

Color: Biscuit. Other colors: For black use WP9750372FF, for white use WP9750372FW.

Color: White. Other colors: For black use WP9750372FF, for biscuit use WP9750372FC.

Color: Black. Measures about 2 inches in diameter. Other colors: For white use WP9750372FW, for biscuit use WP9750372FC.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

Gasket is 3 inches long with 2 metel clips. Does not seal entire cooktop. For foam tape seal order WP3191239.

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Specs: 25ft,14 Ga., 200 c Brown

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.
