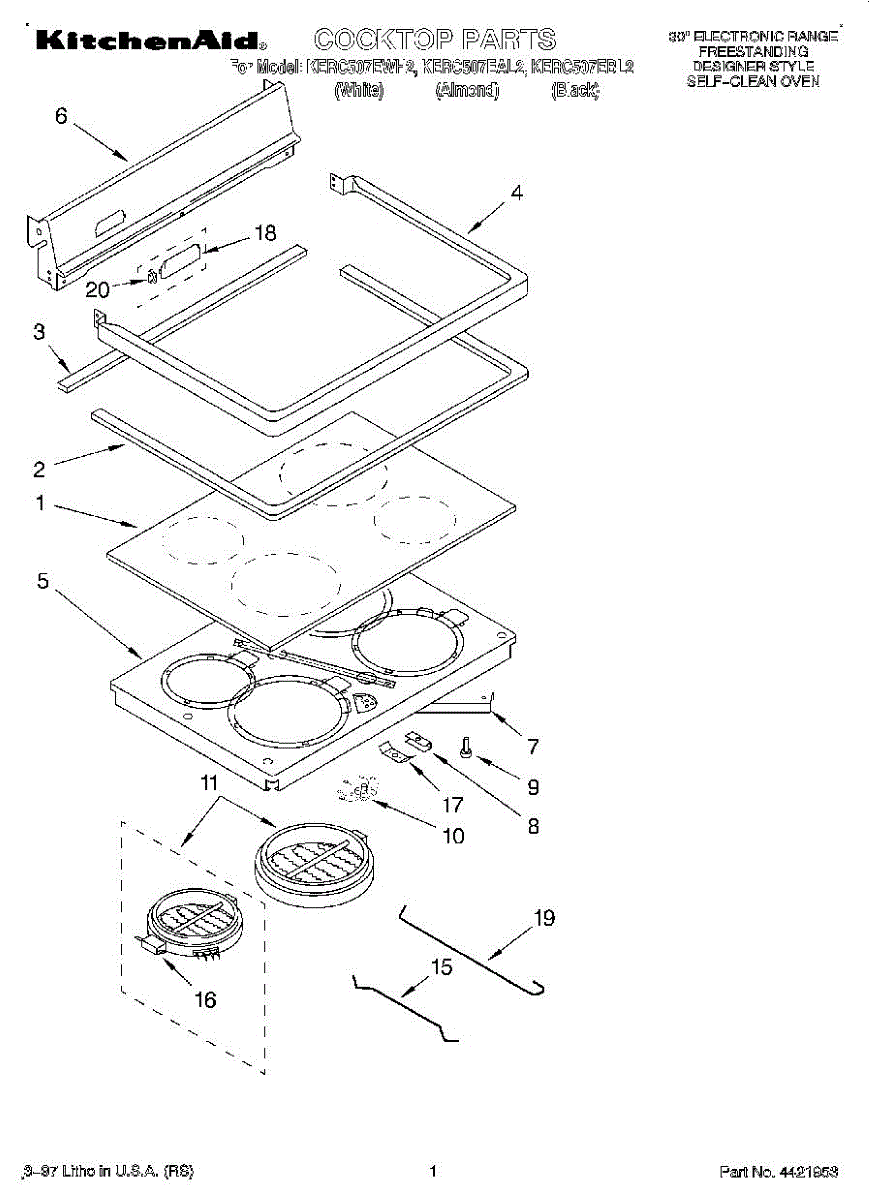

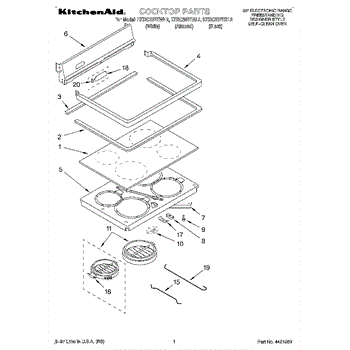

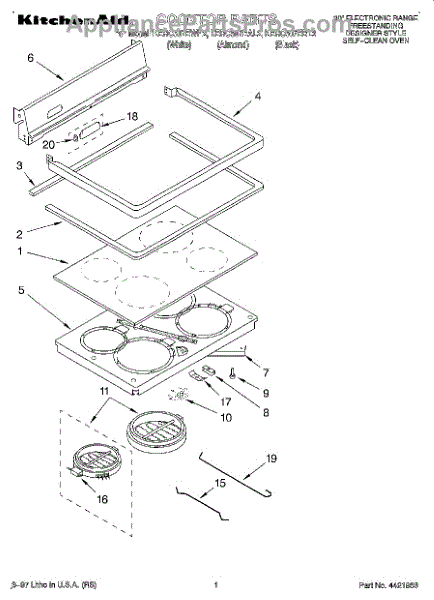

Parts for Kitchenaid KERC507EBL2: 01 - Cooktop Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This cooktop gasket seals the gap between the cooktop and countertop to help prevent spills and moisture from entering the cabinet while restoring a secure fit and finished appearance. Ideal when the original edge seal is worn or missing. What it does:

• Seals the cooktop edge to keep liquids and crumbs from getting under the appliance — symptoms: visible gaps, pooling liquids, or debris under the cooktop.
• Cushions and stabilizes the cooktop to reduce vibration and rattling during use — symptoms: shifting or noisy cooktop.
• Protects countertop and cabinetry from heat, spills, and food buildup that can cause staining or damage — symptoms: discolored or damaged counter edges.
• Restores fit and finish for a clean, professional appearance — symptoms: loose or uneven cooktop edges.

• Disconnect power (and gas, if applicable) and allow the cooktop to cool before starting work.
• Remove the old gasket and thoroughly clean and dry the mating surfaces before installing the new gasket.
• Press the new gasket into place along the cooktop edge; trim excess material as needed without overstretching.

Size: 10-16 x 1/2 inch.

Rubber bumper. Color: Grey.

Comes with limiter

This surface heating element restores reliable heat to an electric cooktop burner so pots and pans warm evenly and predictably. Replace a failed element to bring consistent performance back to your range or smooth-top cooktop.

• Supplies heat to a single cooking zone on an electric range or glass-top cooktop
• Replaces an element that is open, shorted, or intermittently heating
• Common symptoms: burner won't heat, heats unevenly, or only part of the zone glows
• Helpful when there is visible damage or hot spots on the element

• Disconnect power at the breaker; allow the cooktop to cool completely
• Access the element by lifting/removing the cooktop or from below
• Move wires one at a time to matching terminals; reuse any mounting clips/brackets as required
• Support the glass top during service and avoid stressing or scratching the surface

Small, ceran element rod.

Large, ceran element rod.
