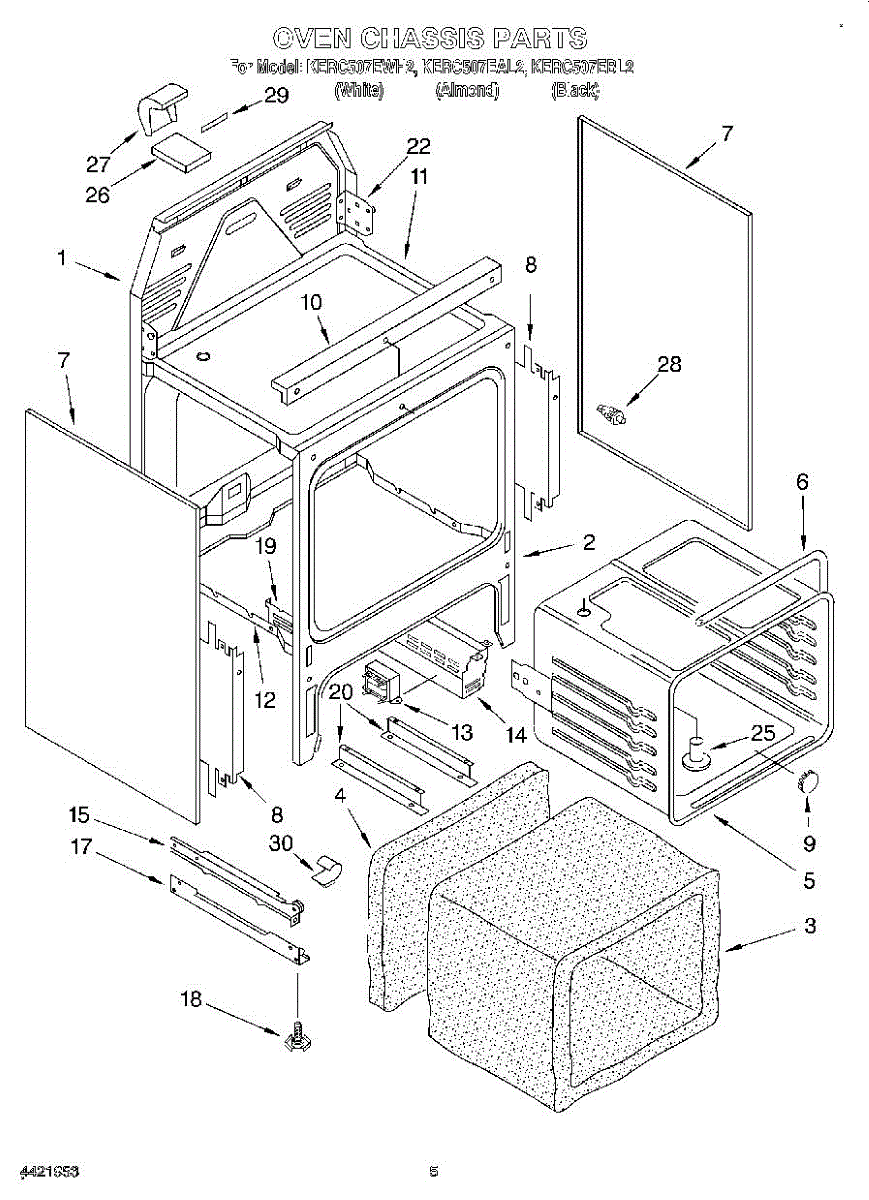

Parts for Kitchenaid KERC507EBL2: 04 - Oven Chassis Parts

This part has been discontinued by the manufacturer and is no longer available.

Size: 10-16 x 3/8 inch.

Size: 10-16 x 3/8 inch.

13.0 mm.

Size: 10-16 x 3/8 inch.

Size: 8 x 3/8 inch.

Size: 10-16 x 3/8 inch.

Size: 10-16 x 3/8 inch.

This light transformer (20VA) steps down incoming voltage for the appliance's light circuit. Replace a failing transformer to restore dependable illumination so you can monitor cooking progress and see clearly when cleaning.

• Steps down line voltage to the lower voltage used by the light circuit
• Supports consistent, reliable interior lighting
• A failed transformer can leave the light inoperative even with a good bulb
• Intermittent operation or flickering can indicate a weakening transformer

• Disconnect power at the breaker or unplug the unit before servicing
• Access and mounting location vary by model; note wiring and orientation before removal
• Move wires one at a time to the matching terminals/leads on the new transformer
• Secure the transformer and route wiring away from hot or moving parts; test light operation before reassembly

This is the left side drawer rail. For right side use 9750224.

Size: 10-16 x 3/8 inch.

This is the right side drawer rail. For left side use 9750223.

Size: 10-16 x 3/8 inch.

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 10-16 x 3/8 inch.

Size: 10-16 x 3/8 inch.

Size: 10-16 x 3/8 inch.

Door light switch.
