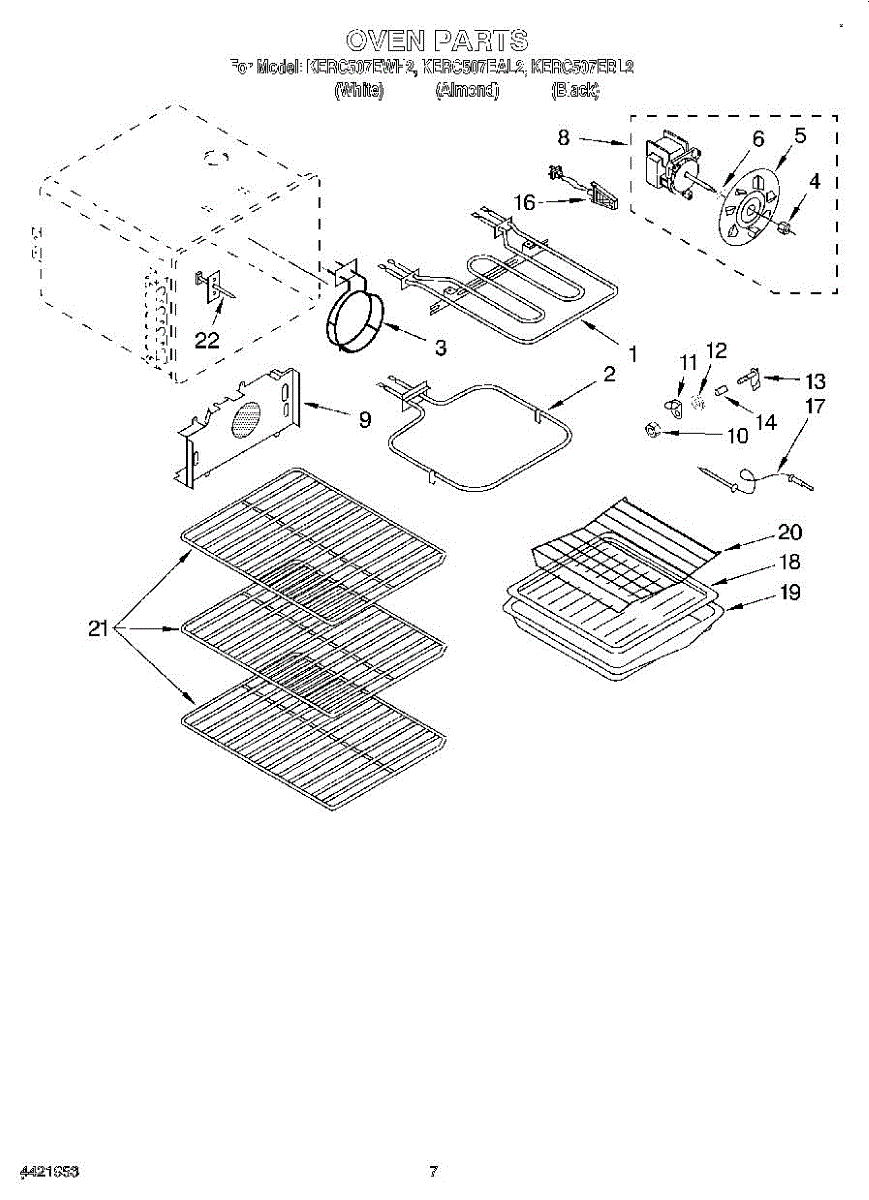

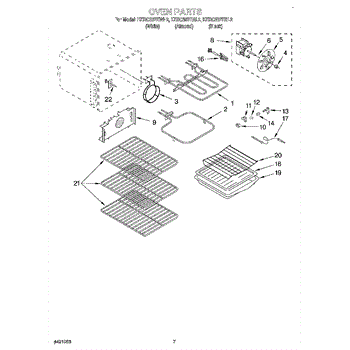

Parts for Kitchenaid KERC507EBL2: 05 - Oven Parts

The Bake Heating Element is an OEM Replacement Part for Whirlpool ovens, designed with push-on terminals. It measures 14-5/8" from the front to the mounting bracket, 19" in width, and 2-1/2" from the mounting bracket to the terminal end. The mounting holes on the bracket are spaced 1-7/8" apart, center to center. The terminals are designed as 1/4" male spades and the unit is rated for 2500 Watts at 240 Volts.

Causes of a bad bake element may include repeated heating and cooling cycles over time, electrical malfunctions, or physical damage from impact or exposure to spills.

Symptoms of a faulty bake element include:

• Oven not heating up properly or taking an excessive amount of time to preheat
• Hot or cold spots within the oven cavity, leading to uneven baking
• Visible damage or discoloration to the bake element itself
• Popping or sparking noises coming from the element area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 3/8 inch.

Size: 10-16 x 1 1/2 inch.

This bake element replaces the lower heating element in electric ovens to restore even baking and broiling performance. It heats the oven interior so food cooks through and reaches set temperatures reliably. What it does:

• Heats the oven cavity for baking and roasting
• Replaces a burned-out or visibly damaged lower oven element
• Commonly used when oven won't reach or hold set temperature or heating is uneven
• Designed to match OEM fit and electrical connections for straightforward replacement

• One bake (lower) oven element

• Disconnect power to the range at the breaker before attempting any service
• Handle the element carefully to avoid bending or damaging terminals
• Basic hand tools required; access usually through the oven interior or rear panel

Convection fan motor.

Includes light bulb.

Meat temperature probe.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This broiler pan restores a sturdy broiling surface in your oven. It holds food for high-heat broiling while the lower tray catches drippings to help reduce smoke and keep the oven cavity cleaner.

• Provides a durable surface for broiling under the broil element or flame
• Collects grease and juices beneath the food during high-heat cooking
• Replaces pans that are missing, warped, chipped, or heavily rusted
• Helps cut down on smoke and mess from burnt-on residue on a damaged pan

• Allow the oven to cool completely before handling
• Slide the pan onto the appropriate rack position per your model's instructions; no tools required
• Use oven mitts—surfaces and edges can be hot after broiling
• If your model uses a separate broiler grid or rack, position it on top of the pan before cooking

Size: 8 x 3/8 inch.

Size: 6 inches long. Includes ceramic wire connectors.
