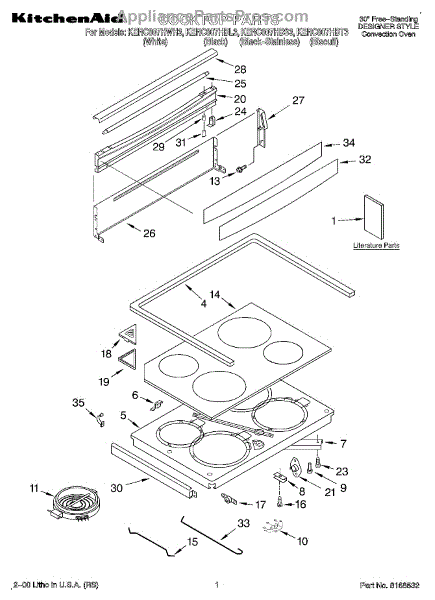

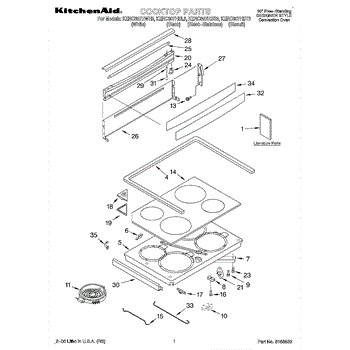

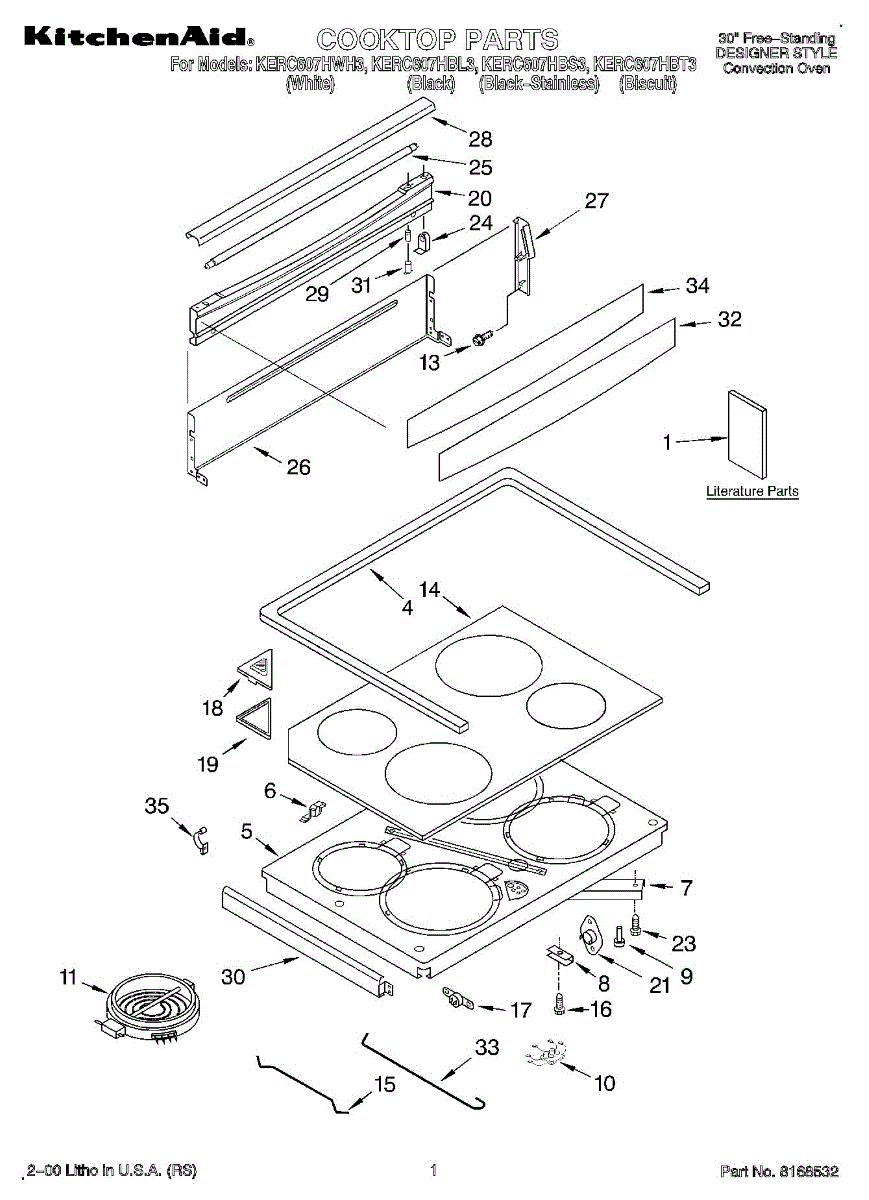

Parts for Kitchenaid KERC607HWH3: 01 - Cooktop, Literature Parts

Seals the gap between your range cooktop and countertop to prevent spills from entering the cabinet. Replace when worn or missing for a secure fit.

Rubber bumper. Color: Grey.

Burner won't heat or stuck on high? This surface element restores proper heating control to your electric range stovetop. Common DIY repair.

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Burner won't heat or stays cold? This surface heating element restores consistent heat distribution. Most DIYers complete this repair in under 30 minutes.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

Mounting screw for securing components in compactors, cooktops, dishwashers, and ranges. Replace if screw is stripped, missing, or damaged.

Color: Black glass with gray speckles.

Color: Black glass with white speckles.

Color: Black glass with biscuit speckles.

Large, ceran element rod.

Mounting screw for securing components in compactors, cooktops, dishwashers, and ranges. Replace if screw is stripped, missing, or damaged.

Color: Black.

Color: White.

Color: Biscuit.

Color: Black.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

Size: 10-16 x 1/2 inch.

This part has been discontinued by the manufacturer and is no longer available.

Size: 26 inches long. F18t8/cw/k26.

Color: Black. This is the right side endcap. For left side use 9781884FB.

Color: White. This is the right side endcap. For left side use 9781884FW.

Color: Biscuit. This is the right side endcap. For left side use 9781884FC.

Color: White. This is the left side endcap. For right side use 9781885FW.

Color: Black. This is the left side endcap. For right side use 9781885FB.

Color: Biscuit. This is the left side endcap. For right side use 9781885FC.

Color: Black. Other colors: For biscuit use 9753320, for white use 9751327.

Color: Biscuit. Other colors: For black use 9751632, for white use 9751327.

Color: White. Other colors: For biscuit use 9753320, for black use 9751632.

Fluorescent light bulb starter. 22W. FS-25.

Color: White.

Color: Black.

Color: Biscuit.

Color: White.

Color: Black.

Color: Biscuit.

Fluorescent light bulb starter holder.

Color: White.

Clear glass backsplash panel for ranges. Replaces cracked, broken, or missing glass on control panel area. Designed for stainless steel models.

Small, ceran element rod.

Bottle with brush. Color: Coffee. Size: 0.6 fl.oz.

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Size: 25ft, 12 Ga. 150 c Black

Spray paint. Color: Coffee. Size: 13 oz. can.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Anti-tip bracket kit that mounts to the floor behind your range to prevent tipping when weight is applied to the open door. Replace if bracket is missing, bent, or broken during appliance removal.

Touch-up paint for appliances in new avocado color. Covers chips, scratches, and worn spots on exterior surfaces. Includes brush applicator.

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Specs: 25ft,14 Ga., 200 c Brown

Touch up paint for appliances with chips, scratches, or worn spots. Includes brush applicator. Restores finish on damaged surfaces. 0.6 fl oz.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: White. Size: 13 oz. Spray paint primer. can.

13 oz. enamel spray paint in biscuit color for appliances. Restores scratched, chipped, or discolored surfaces on refrigerators, dishwashers, and more.

White touch-up paint for covering minor scratches, chips, and blemishes on oven liners. Restores appearance of damaged oven interior surfaces.

White porcelain touch-up paint for repairing chipped, scratched, or worn surfaces on ranges, ovens, and refrigerators. Restores appearance on exterior panels and trim. 2 oz. can.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Used from harness to top.

Touch-up paint for appliances. Covers chips, scratches, and worn areas on range tops, refrigerators, and other appliances. Includes brush applicator.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.

Specs: 10-16 x 1/2 inch.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
