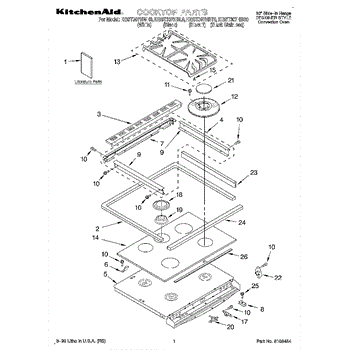

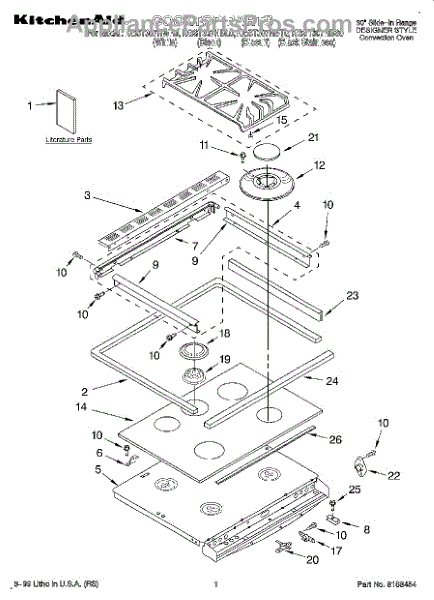

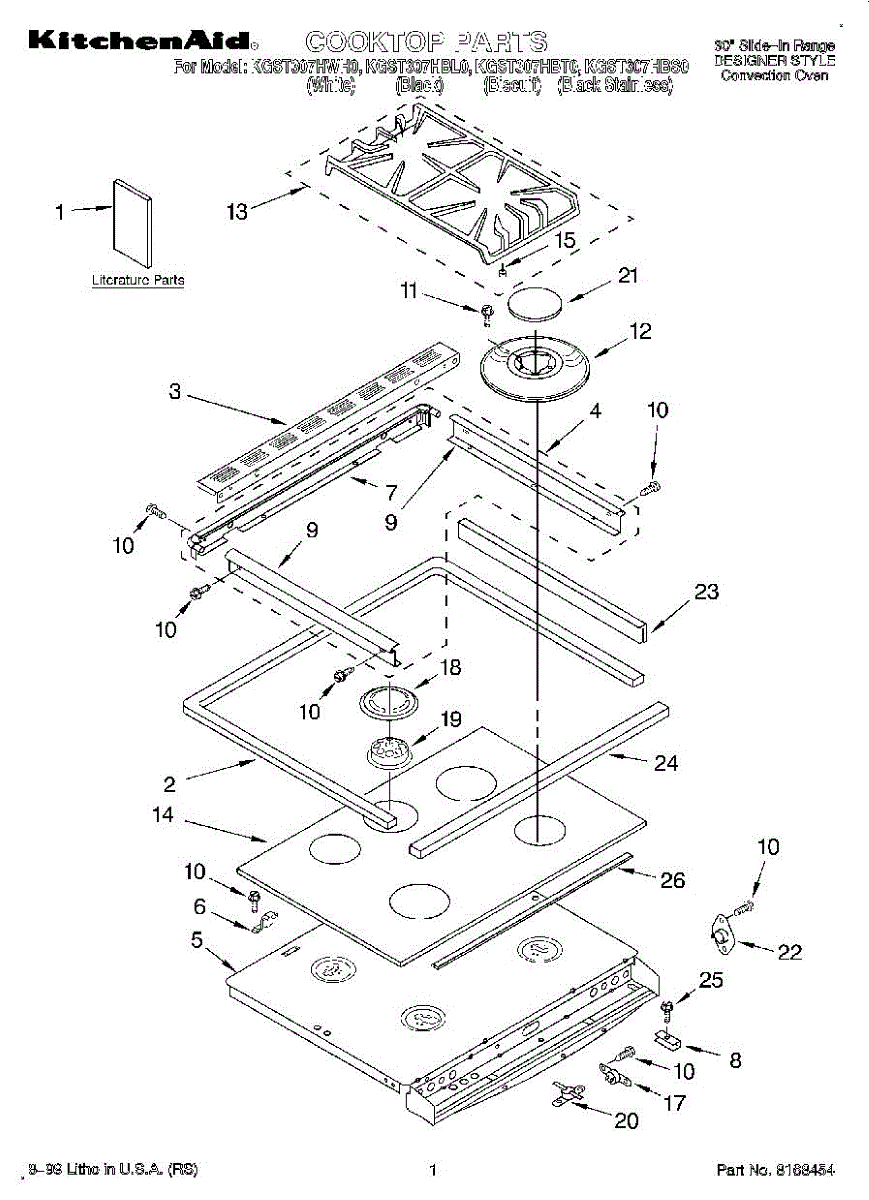

Parts for Kitchenaid KGST307HBS0: 01 - Cooktop, Literature Parts

This cooktop gasket seals the gap between the cooktop and countertop to help prevent spills and moisture from entering the cabinet while restoring a secure fit and finished appearance. Ideal when the original edge seal is worn or missing. What it does:

• Seals the cooktop edge to keep liquids and crumbs from getting under the appliance — symptoms: visible gaps, pooling liquids, or debris under the cooktop.
• Cushions and stabilizes the cooktop to reduce vibration and rattling during use — symptoms: shifting or noisy cooktop.
• Protects countertop and cabinetry from heat, spills, and food buildup that can cause staining or damage — symptoms: discolored or damaged counter edges.
• Restores fit and finish for a clean, professional appearance — symptoms: loose or uneven cooktop edges.

• Disconnect power (and gas, if applicable) and allow the cooktop to cool before starting work.
• Remove the old gasket and thoroughly clean and dry the mating surfaces before installing the new gasket.
• Press the new gasket into place along the cooktop edge; trim excess material as needed without overstretching.

Size: 10-16 x 3/8 inch.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Mouse grey. Location: Right front, left rear.

Color: Mouse grey. Location: Right rear, center.

Color: Mouse grey. Location: Left front. 14K.

Color: Black. Location: Right rear. 12K.

Color: Black. Location: Left front. 14K.

Color: Black.

Color: Mouse grey. Dual.

Color: Biscuit. Other colors: For opaque white use 9753606CO, for black use 9753606CB.

Color: Opaque white. Other colors: For biscuit use 9753606CT, for black use 9753606CB.

Color: Black. Other colors: For opaque white use [AP300846], for biscuit use 9753606CT.

The Foot Pad Kit for Whirlpool ranges is an OEM part specifically designed to fit underneath the grates. These small but critical components provide cushioning and stability for the grates, preventing them from scratching the cooktop surface and reducing noise and movement during cooking.

Symptoms of worn or missing Foot Pads include:

• Grates that wobble or shift during use
• Increased noise, such as rattling or scraping, when moving pots and pans
• Scratches or other damage to the cooktop surface beneath the grates
• Uneven cooking surfaces which can affect the stability of cookware

Causes of degradation in foot pads can include high heat exposure, frequent cleaning that wears down the material, or the natural breakdown of rubber or silicone over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White.

Color: Black.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

Color: Gray. Size: Small. For black order WP3191898. For the large cap order WP3191905.

Color: Black. Size: Large. 14,000 BTU.

Color: Mouse grey. Size: Large. 14,000 BTU.

Color: Gray. Size: Large. Matching small cap: WP3191899. Color options: Black WP3191904.

Color: Black. This large cap measures about 3 inches in diameter. For gray order WP3191905. For the small cap order WP3191898.

Color: black. Small size. Measures about 2-1/2 inches in diameter.
