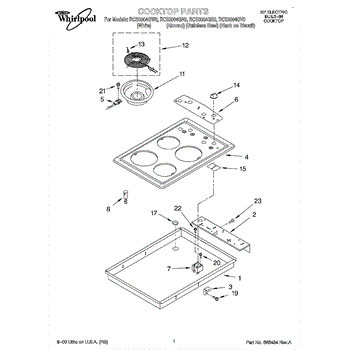

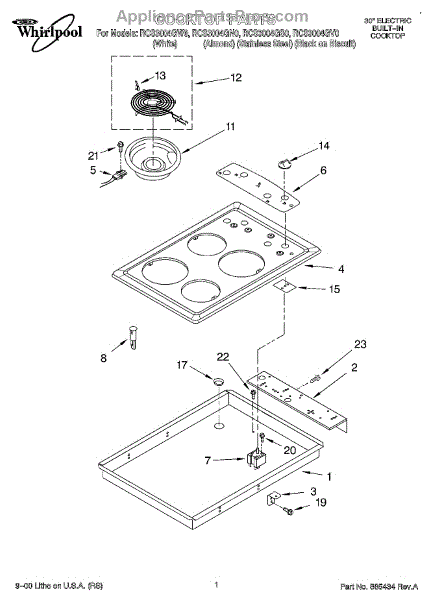

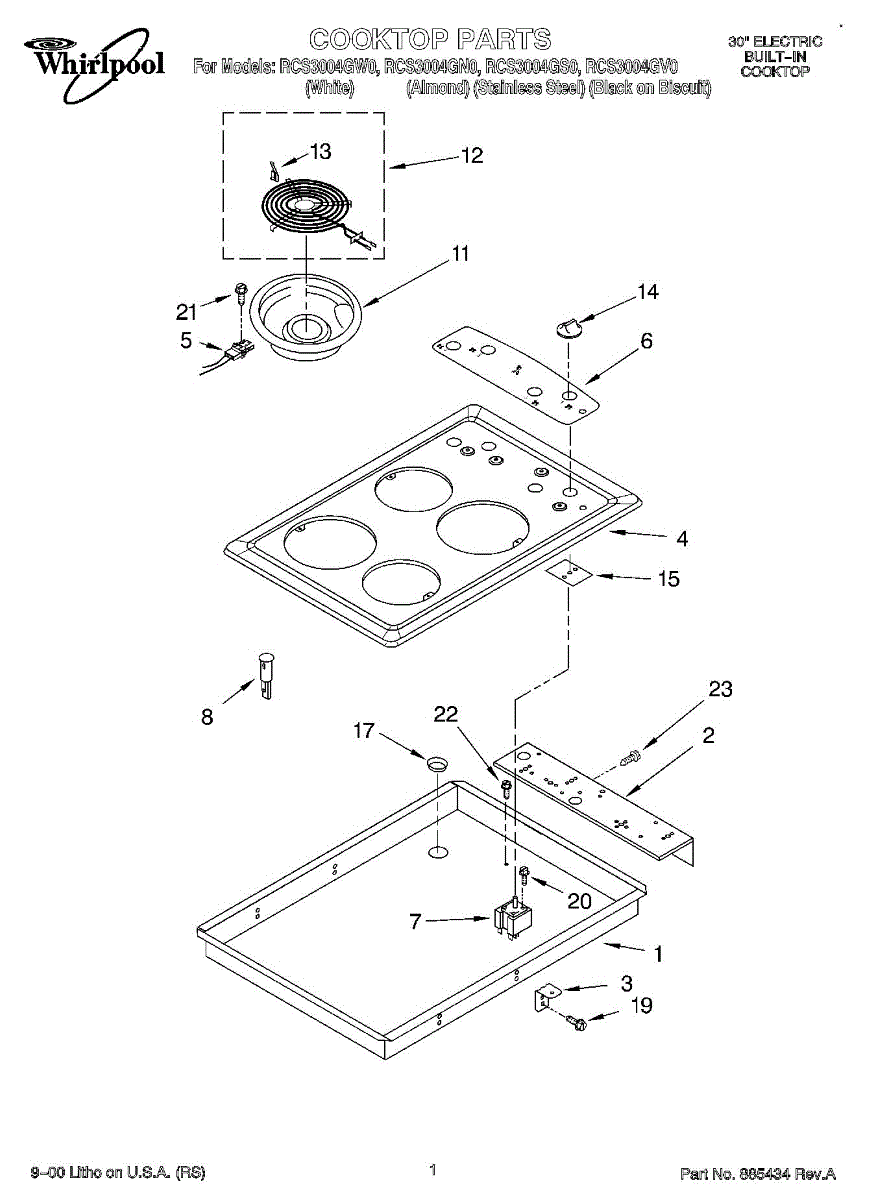

Parts for Whirlpool RCS3004GN0: 01 - Section Parts

Color: Biscuit.

White model main top.

Almond model main top.

Stainless steel model main top.

The Surface Burner Receptacle is an OEM part for Whirlpool ranges. It is designed to hold the surface burner element in place and provide the electrical connection needed for the burner to heat up. This component ensures a secure and efficient transfer of electricity to the burner element, allowing for proper cooking performance.

Causes of a bad surface burner receptacle can include regular wear and tear from frequent use, exposure to high temperatures, or damage due to corrosion or accidental impact. These factors can lead to poor electrical connections or the burner element not staying securely in place.

Symptoms of a bad surface burner receptacle include:

• Burner element not heating or heating inconsistently
• Burner element not fitting securely or wobbly in its socket
• Visible signs of damage, such as burns or melted plastic around the receptacle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black.

Color: Almond.

Color: White.

Blue stem. Surface element switch for 6 inch element.

This infinite switch controls power to a cooktop surface element, allowing precise low-to-high heat settings. Replace it if a burner won't heat, stays on high, or won't shut off when the knob is turned to OFF. What it does:

• Regulates voltage to the surface element by cycling power to match the knob setting
• Restores proper temperature control for the designated burner position
• Can address symptoms such as no heat, only high heat, erratic heating, or a burner that won't shut off
• Needed if the control shaft is stripped, broken, or difficult to turn

• One infinite switch

• Disconnect power at the breaker or unplug the appliance before service
• Remove the knob and access the control panel to reach the switch
• Transfer wires to the new switch one at a time, matching terminal markings
• Test burner operation at low and high settings before reassembly

• Many ranges use different switches for small vs. large elements or specific burner locations. Order by your full model number and burner position. A failed surface element or receptacle can mimic switch issues—test those if symptoms persist.

A 240V indicator light that signals when a high-voltage heating circuit is active, helping you confirm element or oven status at a glance. Fits the original control assemblies that use a panel-mounted signal lamp. What it does

• Illuminates to show the related 240V heating circuit or element is powered.
• Helps diagnose heating issues by indicating whether power is reaching the control or element.
• Visible on the front control panel for quick status checks during operation.
• Designed for direct replacement of the panel-mounted indicator lamp.

• Disconnect power at the breaker before accessing the control panel or wiring.
• Handle the lamp and lens carefully to avoid damage; use proper replacement tools.
• Verify correct function after installation by restoring power and observing the indicator during a heat cycle.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool gas and electric ranges. It is located underneath the stove burners and grates to catch and contain grease drippings and spills. Over time, grease and cooking residue buildup can cause drip pans to crack, warp or corrode.

Symptoms of a bad stove top drip pan include:

• Grease spillovers outside of the drip pan area
• Flames or heating elements obstructed by built-up debris
• Warping or cracking of the pan surface
• Difficulty removing or cleaning the drip pan

Causes can be normal wear from heat and long-term grease exposure. Accidental damage during cleaning is also possible.

 This OEM part is also compatible with Maytag, Jenn-Air, Amana and some Kenmore models.

The Drip Pan (LG) is an OEM replacement part for Whirlpool ranges and ovens. It is a durable metal tray designed to catch any spills, drips, or boil-overs that may occur during the cooking process, helping to keep the oven cavity clean and preventing potential messes or smoke from burnt-on spills.

Symptoms of needing to replace the drip pan include:

• Warping or discoloration from excessive heat exposure
• Cracks or breaks in the pan material
• Difficulty sliding the pan in and out of its designated position

Causes of a drip pan failure can include general wear and tear from repeated use and high temperatures, physical damage from impact or abrasion, or corrosion or deterioration due to exposure to acidic food spills or cleaning agents.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For 6-inch drip bowl order W10196406RW

Restore steady cooking performance with this surface element coil. The 6-inch, 1250-watt burner replaces a worn or open coil so your range heats properly for everyday simmering, sautéing, and boiling.

• Generates heat on a 6-inch cooking zone for boiling, sautéing, and simmering
• Fixes a burner that won't heat or only heats intermittently
• Addresses uneven heating or unusually slow warm-up
• Helps when the coil shows visible breaks, blistering, or burned spots

• Disconnect power at the breaker and let the cooktop cool completely
• Remove the old coil and inspect the receptacle/terminal block; replace if burnt or loose
• Align prongs and press the new coil fully into the receptacle; ensure the support bracket seats in the drip pan notch
• After installation, test the burner with a pan to ensure even heating

This Surface Element is an OEM part for Whirlpool cooktops and ranges. It is responsible for generating heat, which is essential for various cooking tasks. This is the 8-inch element with 4 turns. For the 6-inch element, you will need part number WPW10345407.

Causes of a faulty surface element can include wear and tear over time, electrical component failure, or damage due to overheating or impact. These factors can result in the element not heating up properly, uneven heat distribution, or the element not working at all.

Symptoms of a bad surface element may include:

• No heat or inadequate heat generated
• Uneven cooking or hotspots on the cookware
• The element not turning on or functioning intermittently

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Note: For the Receptacle Kit, order part number 330031.

This small spring clip secures a heating element to its mounting bracket in a range or wall oven, keeping the element properly positioned for safe, consistent heating. Replaces a worn or missing retainer to stop the element from shifting or sagging. What it does:

• Retains the heating element against its mounting point or bracket
• Helps prevent element sagging, shifting, or rattling during use
• Maintains proper alignment and spacing for reliable performance

• 1 metal spring clip

• Disconnect power at the breaker and allow the appliance to cool completely
• Support the element while removing/installing the clip to avoid stressing terminals
• Match the original clip's orientation and location before reassembly
• Do not bend or overtension the heating element; replace any damaged hardware or wiring as needed

Color: Almond. Size: 2 inches in diameter. Range surface unit knob. For white order WP3196232. For black order WP3196231.

Range surface unit knob. Color: Black. Size: 2 inches in diameter. It measures about 2 inches in diameter. For white order WP3196232. For bisque order WP3196233.

The Control Knob is an OEM replacement part for Whirlpool ranges. This knob allows users to select cooktop burners and oven functions through rotation.

Symptoms of a bad control knob include:

• Burners or oven failing to activate as selected
• Inaccurate temperature or function delivery
• Loose, wobbly, or difficult to turn knob

Causes may be general wear to the assembly over years of repeated adjustments. Knobs can also crack or buttons stick from food/liquid intrusion.

Surface burner control knob with black indicator stripe. Color: White. Measures 2 inches in diameter. For black knob with white indicator stripe use AP3030723. For almond knob use AP3030736.

This OEM Whirlpool part is also compatible with some KitchenAid, Jenn-Air, and select Kenmore stoves and ranges as well.

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Size: 8-32 x 1/4 inch.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
