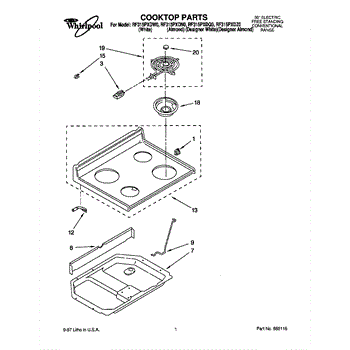

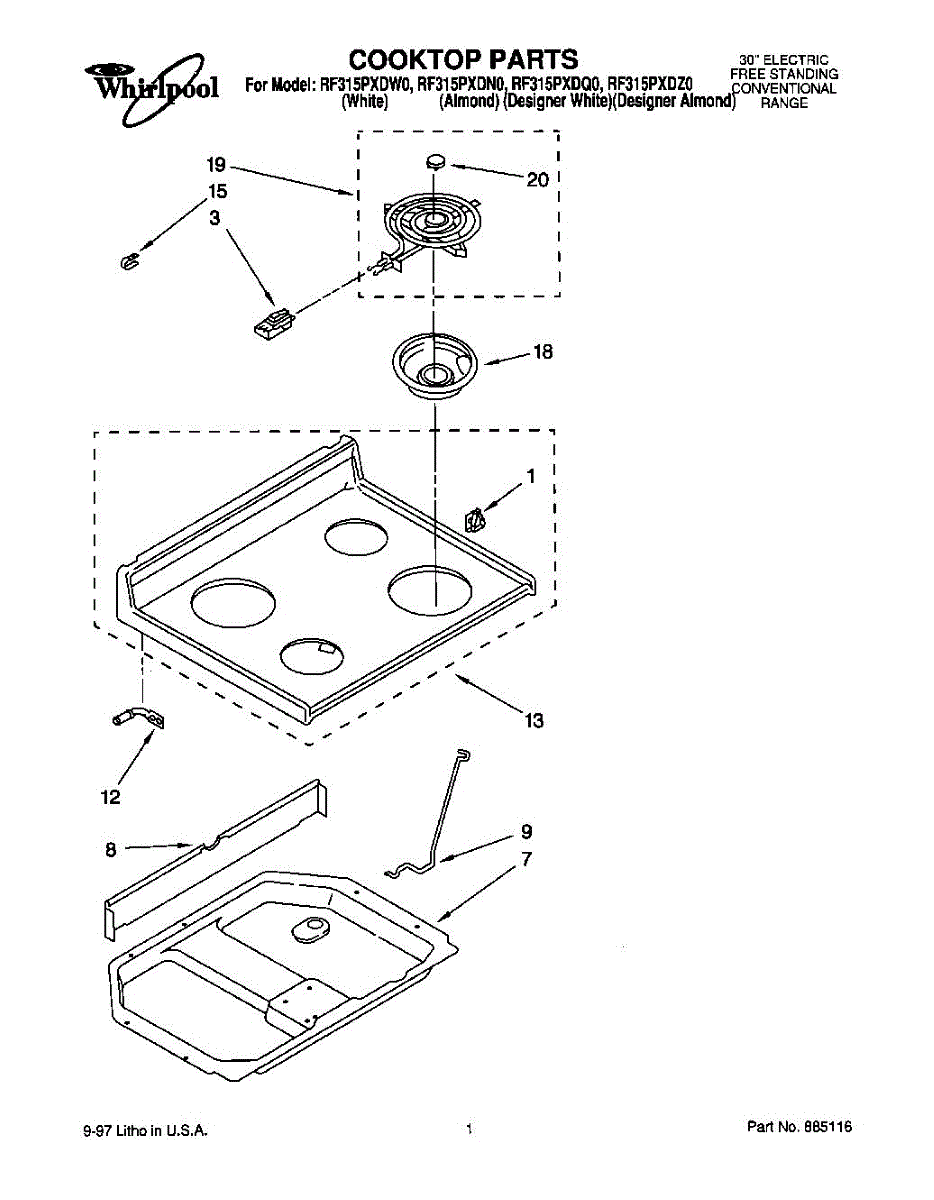

Parts for Whirlpool RF315PXDN0: 01 - Cooktop, Literature Parts

Replacement fastening nut that secures components to threaded studs or bolts on your range. Needed when original nut is missing, worn, or stripped.

This machine screw secures appliance panels and components for reliable operation and alignment. A simple replacement that restores proper fit and prevents rattles or loose parts. What it does

• Fastens panels, brackets, or components to restore secure attachment
• Stops squeaks, rattles, or vibration caused by loose fasteners
• Replaces worn, stripped, or missing screws to maintain safety and function
• Matches OEM threading and head style for correct fit when specified

• One machine screw

• Use the correct driver size to avoid stripping the head
• Do not overtighten; stop when snug to prevent damage to threads or parts
• Disconnect power and move the appliance to a safe, stable position before working near electrical components
• Ensure proper torque and consider thread engagement length

Factory rivet fastener secures panels, brackets, and trim on cooktops and ranges. Replace worn, missing, or drilled-out rivets to restore alignment.

Size: 6-32 x 9/32 inch.

Metal mounting bracket that secures the receptacle kit to your range. Replace this structural bracket if it's bent, broken, or missing during installation.

10 - 16 x 1/2

Specs: 10-16 x 1/2 inch.

Specs: 10-16 x 1/2 inch.

Removable drip pan installs beneath range burners to catch spills and food debris. Replace when cracked, warped, or heavily stained for a cleaner cooktop.

Drip pan installs beneath burner elements to catch spills and crumbs. Replace if cracked, rusted, stained, or worn. Keeps your stovetop clean.

The Drip Pan (LG) is an OEM replacement part for Whirlpool ranges and ovens. It is a durable metal tray designed to catch any spills, drips, or boil-overs that may occur during the cooking process, helping to keep the oven cavity clean and preventing potential messes or smoke from burnt-on spills.

Symptoms of needing to replace the drip pan include:

• Warping or discoloration from excessive heat exposure
• Cracks or breaks in the pan material
• Difficulty sliding the pan in and out of its designated position

Causes of a drip pan failure can include general wear and tear from repeated use and high temperatures, physical damage from impact or abrasion, or corrosion or deterioration due to exposure to acidic food spills or cleaning agents.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For 6-inch drip bowl order W10196406RW

Shallow metal pan that sits below burner elements to catch grease and food spills. Replace when cracked, rusted, discolored, or warped for easier cleanup.

Burner won't heat or heats unevenly? This 6 inch surface element restores consistent cooking temperatures. Simple plug-in replacement takes minutes.

Surface element not heating or won't turn on? This 8-inch coil burner fits ranges and cooktops. Simple plug-in replacement takes under 5 minutes.

This part has been discontinued and is no longer available.
