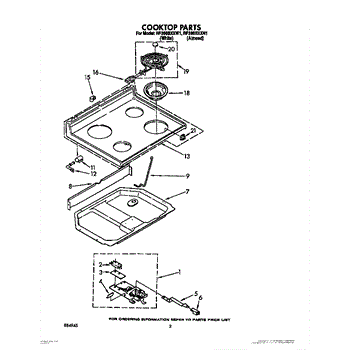

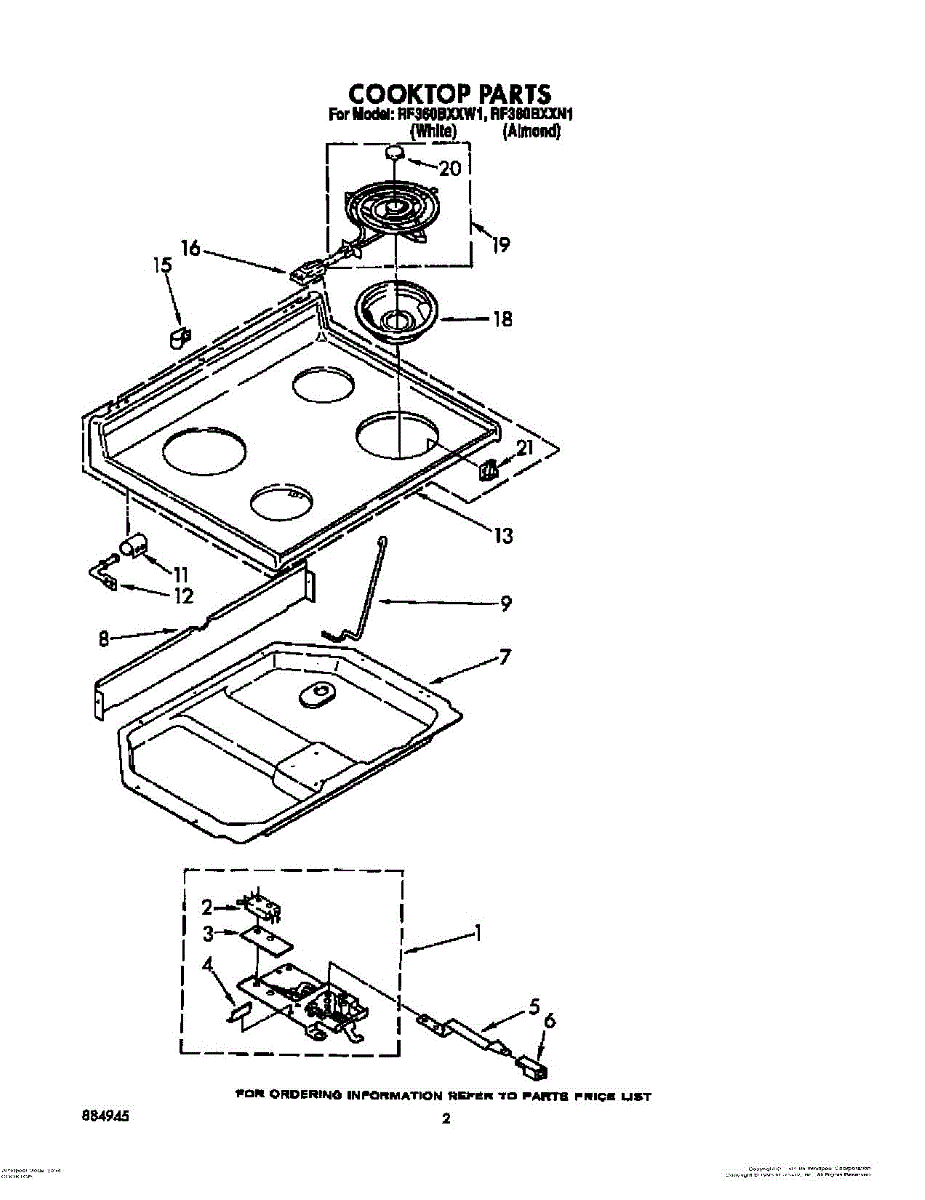

Parts for Whirlpool RF360BXXW1: 02 - Cooktop Parts

Specs: 10-16 x 1/2 inch.

Specs: 6 x 3/8B

Color: Black. No longer available in white

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

10 - 16 x 1/2

Specs: 10-16 x 1/2 inch.

Size: 6-32 x 9/32 inch.

This is a metal bracket only, for receptacle kit, which includes this bracket, order 330031.

The Drip Pan (LG) is an OEM replacement part for Whirlpool ranges and ovens. It is a durable metal tray designed to catch any spills, drips, or boil-overs that may occur during the cooking process, helping to keep the oven cavity clean and preventing potential messes or smoke from burnt-on spills.

Symptoms of needing to replace the drip pan include:

• Warping or discoloration from excessive heat exposure
• Cracks or breaks in the pan material
• Difficulty sliding the pan in and out of its designated position

Causes of a drip pan failure can include general wear and tear from repeated use and high temperatures, physical damage from impact or abrasion, or corrosion or deterioration due to exposure to acidic food spills or cleaning agents.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For 6-inch drip bowl order W10196406RW

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

The 6 Inch Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This component is essential for providing consistent, controlled heat to cookware on the stovetop.

Symptoms of a bad 6 Inch Small Surface Element include:

• Lack of heat production, with the element failing to warm up at all.
• Inconsistent heating, where the element may fluctuate in temperature or only partially heat.
• Visible damage such as blistering, bubbling, or cracks on the element's surface.
• A tripped circuit breaker when the element is turned on, indicating a short.

Causes of a bad surface element can include prolonged use leading to element burnout, electrical faults such as faulty wiring or internal failures, and physical damage from impact or heavy cookware being dropped on the element.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

8-inch element is part number WP660533.

The 8-inch large Surface Element is an OEM replacement part for Whirlpool induction ranges. It serves as an integral independent heating zone to boil, sauté or simmer large pots quickly.

Symptoms of a bad surface element include:

• Inability to power on or heat evenly across the surface
• Slow inconsistent heating or hot/cold zones developing
• Parts of the coil visibly cracked or disconnected
• Tripped circuit breakers upon heat-up that don't reset

Causes stem from normal thermal stress fatigue of coiled elements exceeding thousands of temperature cycles daily. Continuous high wattage energy may cause microscopic metal deterioration developing over a decade plus of use.

This genuine Whirlpool replacement part is compatible with Kenmore, Roper and Jenn-Air ranges.

For matching 6-inch element order WP660532.

This part has been discontinued and is no longer available.

This is a replacement fastening nut used to secure components on compatible Whirlpool appliances. It provides a simple, reliable way to restore proper mechanical retention where a nut is missing or worn. What it does:

• Secures mating parts to threaded studs or bolts to prevent movement or separation
• Restores proper fit when a nut is missing, damaged or stripped
• Helps eliminate rattling, looseness or alignment issues caused by a failed fastener
• Works as a basic mechanical replacement; fit and thread type should be checked before ordering

• Disconnect power and water and follow appliance safety procedures before servicing
• Use the correct socket or wrench size to avoid rounding the nut
• Hand-start threads to avoid cross-threading; tighten snugly but avoid over-torquing

This machine screw secures appliance panels and components for reliable operation and alignment. A simple replacement that restores proper fit and prevents rattles or loose parts. What it does

• Fastens panels, brackets, or components to restore secure attachment
• Stops squeaks, rattles, or vibration caused by loose fasteners
• Replaces worn, stripped, or missing screws to maintain safety and function
• Matches OEM threading and head style for correct fit when specified

• One machine screw

• Use the correct driver size to avoid stripping the head
• Do not overtighten; stop when snug to prevent damage to threads or parts
• Disconnect power and move the appliance to a safe, stable position before working near electrical components
• Ensure proper torque and consider thread engagement length

This factory fastener is a rivet used to secure panels, brackets, and trim within your appliance. Replacing a worn or missing rivet restores a tight, rattle-free fit and keeps components aligned for reliable operation.

• Fastens two components where a durable, vibration-resistant connection is needed
• Replaces broken, loose, or missing rivets to restore proper attachment
• Helps eliminate rattles, vibration, and looseness
• Supports correct alignment of doors, panels, and brackets

• Disconnect power and shut off water/gas before servicing.
• Support the panel or part being fastened to prevent bending or cracking.
• Removing an old rivet typically involves drilling out the head with the correct bit; avoid enlarging the hole.
• Install the new rivet with the appropriate rivet tool per your service manual and holes are aligned.
