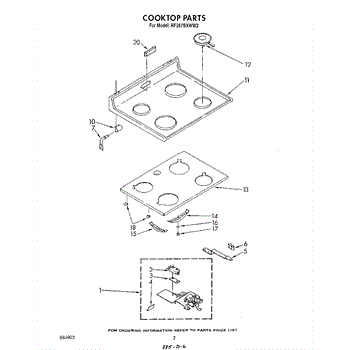

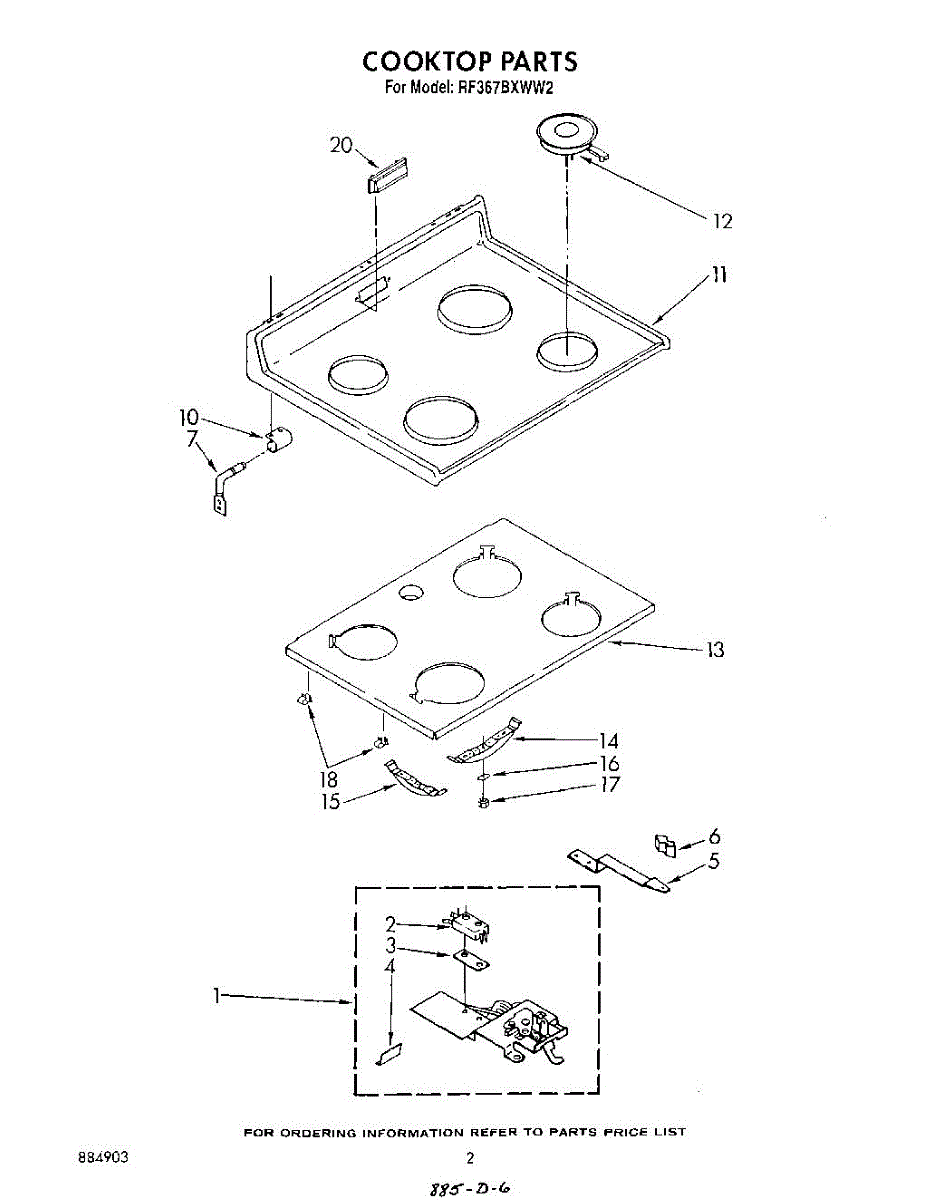

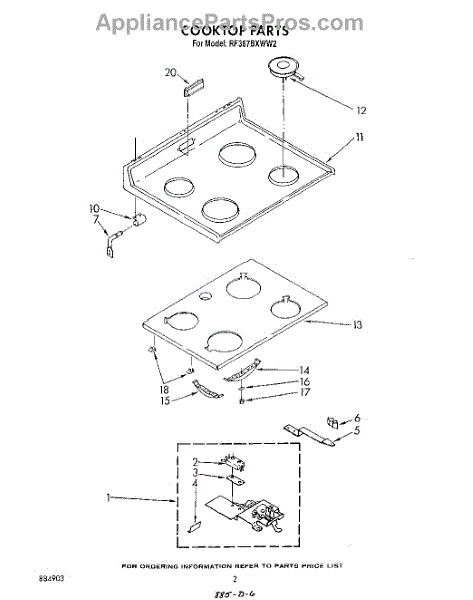

Parts for Whirlpool RF367BXWW2: 02 - Cooktop Parts

Specs: 10-16 x 1/2 inch.

Specs: 6 x 3/8B

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

Color: Black. No longer available in white

Specs: 10-16 x 1/2 inch.

This surface element supplies heat to an electric range or cooktop burner. When it fails, the burner may not heat or may heat inconsistently. Replacing the element restores steady, reliable cooking performance.

• Converts electrical energy into heat for the cooking zone
• Works with the surface control (infinite switch) to regulate temperature
• Common symptoms: burner won't heat, intermittent or uneven heating, visible breaks/blistering, burnt/melted terminals
• A failed element will not glow or reach set temperature when energized

• Disconnect power at the breaker before servicing and allow the cooktop to cool completely
• If your model uses a plug-in coil style: remove the drip pan, pull the element straight out of the receptacle, and inspect/replace a heat-damaged receptacle as needed
• If your model uses an under-glass radiant style: lift the cooktop, transfer any clips/limiters from the old element, and route wires exactly as original
• After reassembly, test the burner at a low setting to ensure proper operation

This 8-inch surface element restores reliable heating on an electric range or cooktop. Replace a failed burner to bring the cooking zone back to proper operation and consistent cooking performance. What it does:

• Provides heat for the 8-inch burner position on an electric range/cooktop
• Replaces an open or damaged element that no longer heats properly
• Can help resolve no-heat, slow/uneven heating, or intermittent heating issues
• Supports accurate temperature cycling when the element is functioning correctly

• 1 8-inch surface element

• Disconnect power to the appliance before servicing
• Allow the cooktop/range to cool completely before access
• Note wire locations and mounting/retaining hardware to transfer and reconnect exactly as found
• Handle the element carefully; avoid stressing the coil and ensure all electrical connections are secure before reassembly
