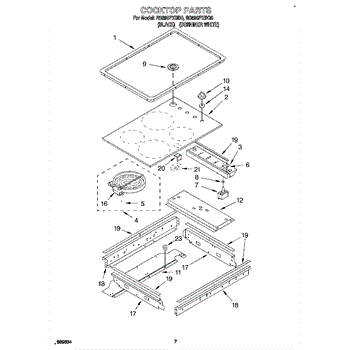

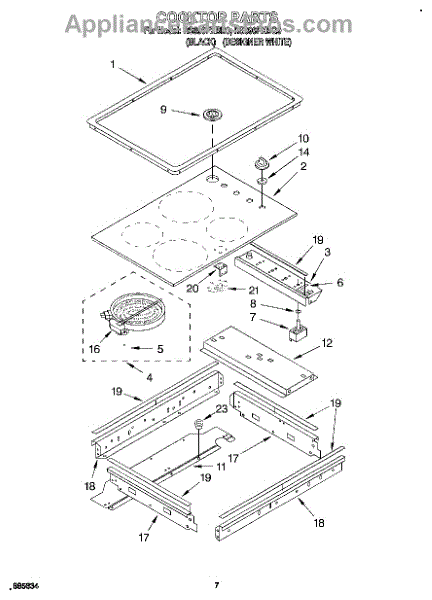

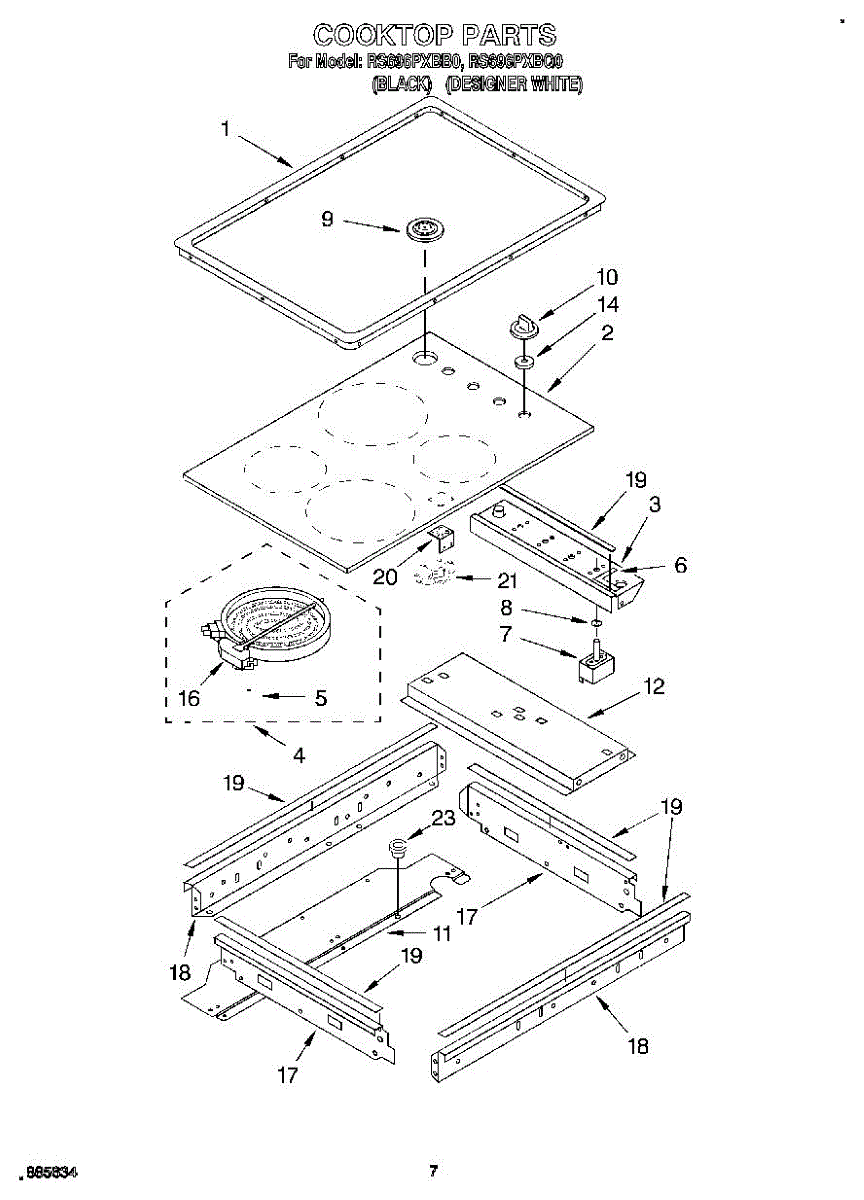

Parts for Whirlpool RS696PXBB0: 05 - Cooktop Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

2100 watt. Includes Temp. Limiter

1400 watt. Includes Temp. Limiter

1700 watt. Includes Temp. Limiter

2400 watt. Includes Temp. Limiter

Size: 6-32 x 3/8 inch.

The Infinite Switch is an OEM part for Whirlpool cooktops and ranges, designed to control the temperature of the burners. This critical component allows for the precise adjustment of heat levels, providing the flexibility needed for various cooking tasks, from simmering sauces to boiling water.

Causes of these symptoms can vary from electrical issues within the switch, such as faulty contacts or internal components, to physical damage from wear and tear or overheating. It's essential to address these issues promptly to maintain the safety and functionality of your cooktop or range.

Symptoms of a bad Infinite Switch include:

• Burners not heating to the set temperature
• Inability to adjust the heat level of the burner, resulting in it being stuck on high, low, or off
• The burner not turning on at all

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This white control knob attaches to a surface burner's infinite switch. It turns the element on/off and selects heat levels; replacing a worn or broken knob restores smooth, accurate control of the surface burner.

• Attaches to the surface burner's infinite switch to control heat settings
• Restores on/off and temperature selection when the original knob is damaged or missing
• Common symptoms: knob cracked, stripped, loose/wobbly, or missing

• Turn all controls off and disconnect power to prevent accidental activation
• Pull the old knob straight off the switch shaft—do not pry sideways
• Align the new knob with the switch shaft and press firmly until fully seated
• Test the control through the full range of settings

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

2100 watt

2400 watt

1400watt

1700 watt

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
