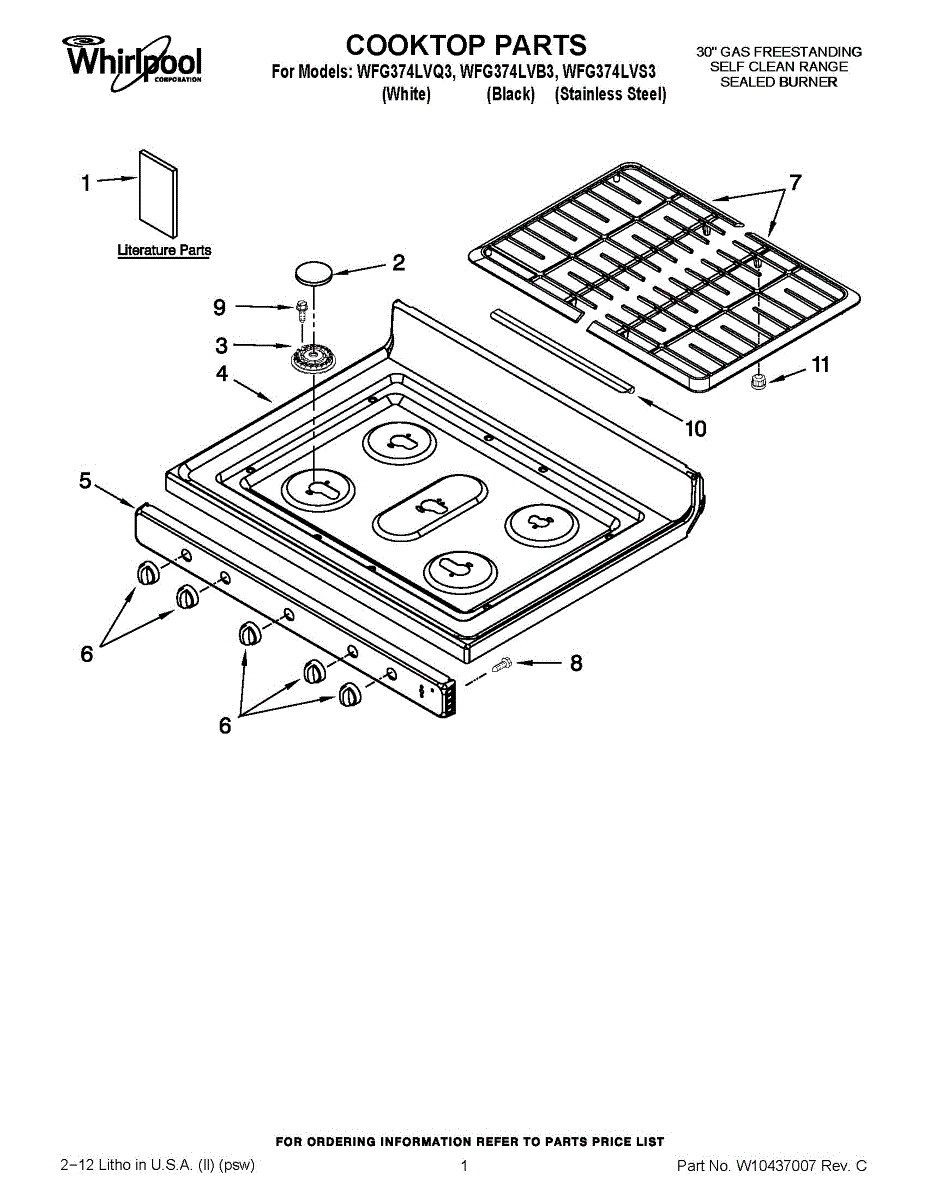

Parts for Whirlpool WFG374LVB3: 01 - Cooktop Parts

Color: Black. Kit includes five burner caps. For the burner cap kit in grey use part number WPW10183372.

The Burner Cap Kit is an OEM replacement part for Whirlpool ranges. It is a kit that contains replacement burner caps for the range's gas burners. These burner caps play a vital role in distributing heat evenly across pots and pans placed on the gas burners. Color: Grey. Kit includes five burner caps. For the burner cap kit in black use part number WPW10183374.

Causes of a bad burner cap kit include wear and tear over time from heat exposure, accidental damage from pots and pans, or issues with the mounting hardware that secures the caps.

Symptoms of bad burner caps can include:

• Uneven or inefficient heating from the burners
• Discolored, cracked, or missing burner caps
• Flames not contained within burner cap openings
• Over extensive use, burner caps can deteriorate or become misshapen.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Color: Black

Color: White

Color: White power burner knob

Color: White simmer knob

The Knob(wht) is an OEM part for Whirlpool ranges and ovens. This white knob is designed to blend seamlessly with the appliance's aesthetic while providing a durable solution for controlling the temperature and functions of your range or oven. The knob is an essential interface between the user and the appliance, ensuring precise adjustments can be made to the cooking settings.

Causes for replacement often include prolonged use leading to wear and tear, accidental damage, or exposure to heat and cleaning chemicals that can degrade the material over time.

Symptoms of a bad Knob include:

• Difficulty in turning or adjusting the knob
• Cracks or breaks in the knob itself
• Fading or wear of the indicator marks

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black   simmer knob.

Color: Black   power burner knob

The Burner Knob is an OEM part designed for Whirlpool ranges. It fits onto the burner control valve, allowing you to adjust the flame level and temperature while cooking.

Color: Black

Burner knobs can suffer damage or malfunction due to regular use, accidental impacts, or heat exposure over time. These conditions can cause the knob to crack, become loose, or stop rotating smoothly.

Symptoms of a faulty burner knob include:

• Difficulty adjusting the burner flame level
• Knob slipping or not turning smoothly
• Knob falling off or feeling loose
• Burner not responding accurately to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Grate Pad is an OEM replacement part for  Whirlpool gas ranges. This set of 4 pads is designed to fit securely underneath the grates above the burner pans. The grate pad works to protect the grates from scratches and prolong their service life. It also helps distribute heat evenly across cookware during cooking.

Causes of a bad grate pad can include soiling or staining that is not removable through normal cleaning. Exposure to high heat over many years could cause cracks or brittleness in the material.

Symptoms include:

• Scratches or pits appearing on the grate surface
• Warping of the pad shape makes secure fitting difficult
• The pad deteriorating or flaking off in pieces

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other gas ranges
