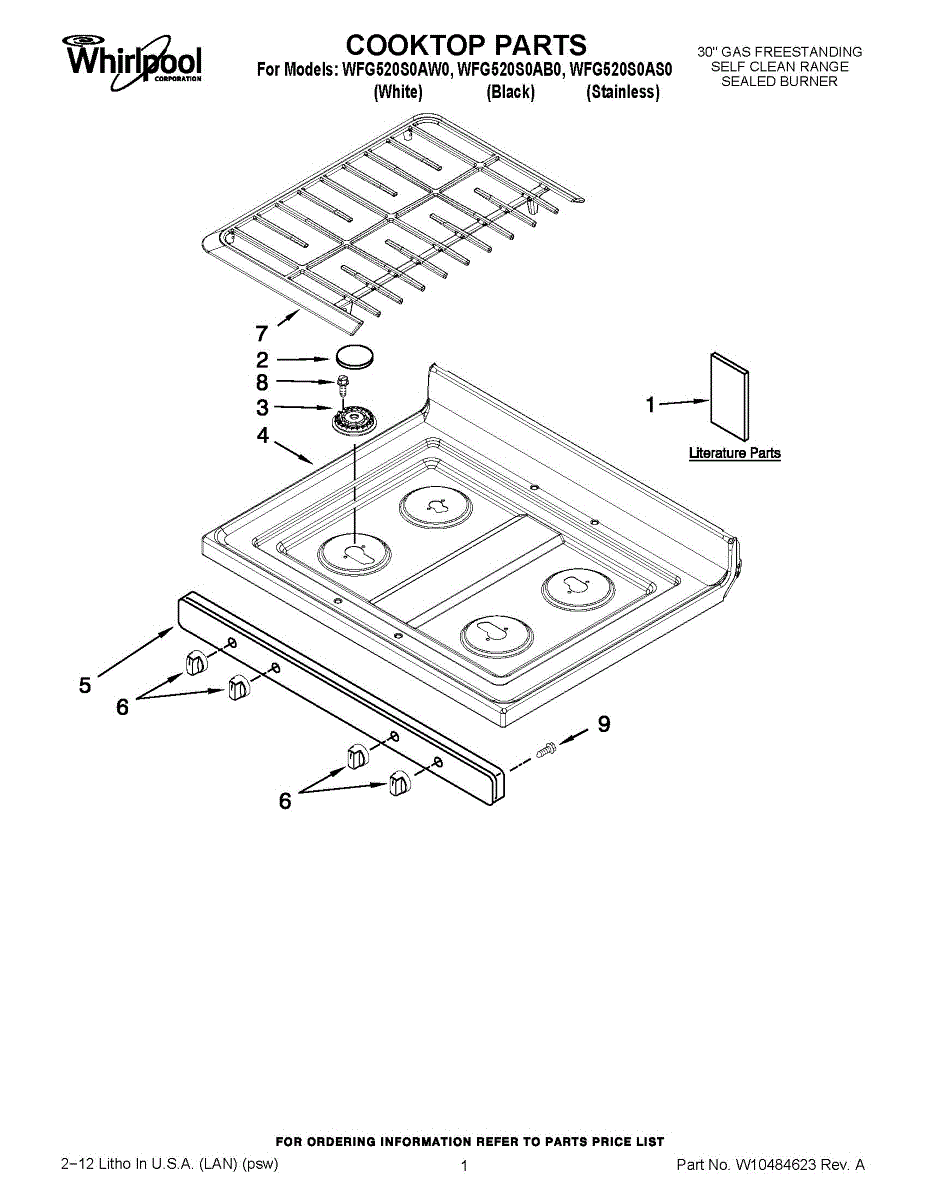

Parts for Whirlpool WFG520S0AB0: 01 - Cooktop Parts

Black burner caps sit atop gas range burner heads to shape the flame. Replace cracked, worn, or missing caps to restore even cooking and a clean look.

Burner head sits on the base and distributes gas through precision ports for even flame. Replace if cracked, clogged, or corroded for proper ignition.

Auxiliary burner head for gas ranges and cooktops. Mounts over the orifice to distribute gas through precision ports. Replace if clogged or damaged.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Replace your gas range cooktop if the surface is cracked, chipped, or damaged. This cooktop installs on top of the range cabinet as the main cooking surface.

Replace your gas range's cooktop surface if cracked, chipped, stained, or damaged. This porcelain-enamel cooking surface installs on top of your range.

This is a white plastic control knob designed for a range cooktop surface burner. It attaches to the burner valve stem and allows you to adjust the flame or heat level. Replace this knob if it is cracked, discolored, loose on the stem, or if the printed markings have worn off, making it difficult to set the correct heat setting.

Replacement control knob for gas range burners. Installs on the control panel to adjust flame and heat settings. Order if your knob is broken, cracked, or missing.

This is a set of black cast iron or porcelain-coated burner grates that sit on top of a gas range cooktop, providing a stable surface for pots and pans over the burners. The grates distribute heat and support cookware during cooking. Replace these grates if they are cracked, chipped, warped, or if the porcelain coating has worn away, causing uneven pot placement or a poor appearance.

Torx screw secures burner assemblies, igniters, and internal components in gas cooktops and ranges. Replace rusted, stripped, or broken screws.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
