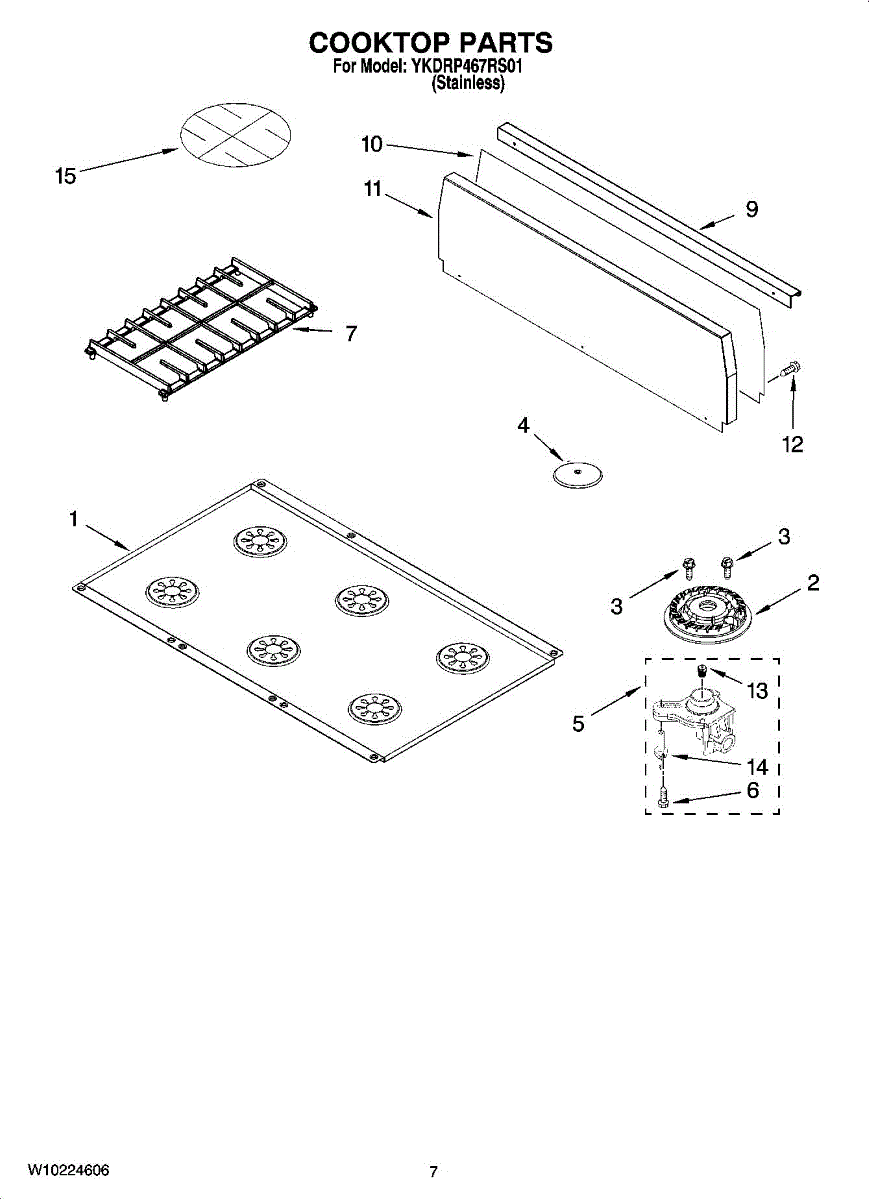

Parts for Whirlpool YKDRP467RS01: 06 - Cooktop Parts

Location: Left front. 14,000 BTU.

Replacement burner head for gas cooktops. Distributes gas evenly through ports for consistent flame. Replace if cracked, damaged, or worn from spills.

Torx screw secures burner assemblies, igniters, and internal components in gas cooktops and ranges. Replace rusted, stripped, or broken screws.

Color: Coal matte black. 14,000 BTU.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

This orifice holder secures the gas orifice to the burner tube, keeping the orifice aligned for a steady, correctly routed gas flow to the cooktop burner. It helps restore consistent ignition and flame performance. What it does:

• Holds the gas orifice in place at the burner tube end for proper gas delivery
• Ensures the orifice stays aligned so the burner lights reliably and burns evenly
• Can address symptoms like uneven or weak flames or burners that fail to light
• Works as the mounting point between the orifice and the burner assembly

What's included:

• One orifice holder

Install notes:

• Turn off the gas supply and electrical power to the appliance before starting work
• Remove the cooktop or burner assembly as needed to access the orifice holder
• Inspect the orifice for damage or clogging and replace with the correct orifice size if required

The surface burner orifice holder is a brass or metal fitting that threads into the gas valve and holds the orifice, which is the small precisely sized opening that controls how much gas flows to a cooktop burner. Together with the orifice, it regulates flame size and ensures proper combustion. Replace this part if a burner produces an uneven, weak, or oversized flame, or if the holder is damaged, corroded, or leaking gas at the burner connection.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Color: Black.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

Location: Right front.

Gas burner orifice for cooktops and ranges. Controls gas flow to the burner. Replace if damaged, missing, or when converting between fuel types.

Fix burners that won't click or ignite without turning on another burner. This spark electrode creates the spark needed to light gas burners. DIY repair.
