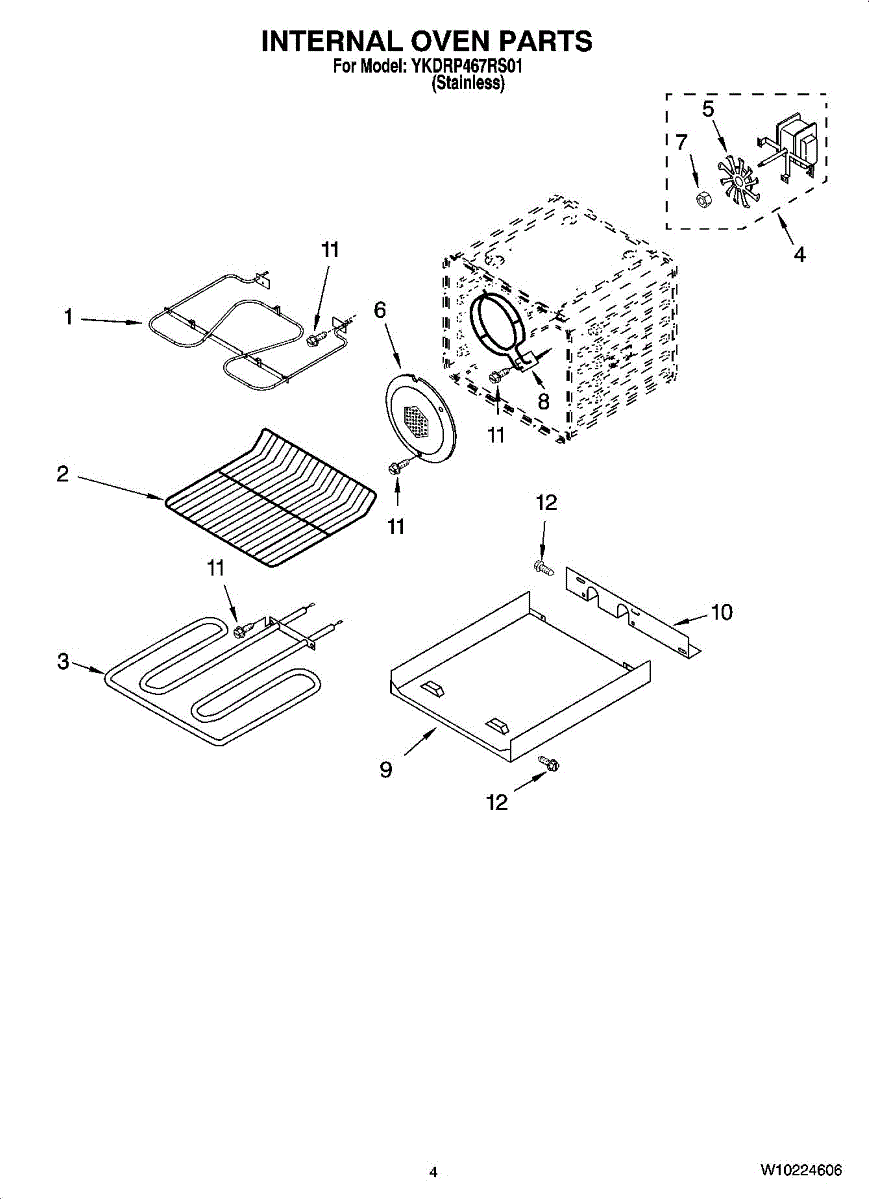

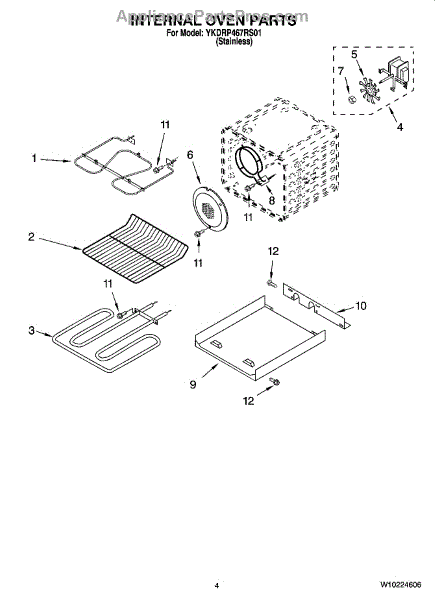

Parts for Whirlpool YKDRP467RS01: 03 - Internal Oven Parts

Broil element provides the oven's upper heating for broiling and surface browning. Replacing a failed broil element restores broil performance so foods brown evenly and the oven properly completes broil cycles. What it does:

• Produces the high, direct heat used for broiling and top-surface browning.
• Restores heat in the oven's upper cavity when the broil setting is selected.
• Common fix when food doesn't brown, the element doesn't glow, or the broil cycle delivers little heat.
• Works with the oven's broil control and thermostat to achieve required broiling temperatures.

• Disconnect power to the appliance at the breaker before starting any repair.
• Remove oven racks and access the element mounting screws or rear terminal cover as required by your model.
• Handle the element carefully and avoid touching terminals; ensure connections are tight and insulated.
• Replace damaged mounting hardware or connectors before re-energizing the oven.

This heating element is located at the bottom of your oven and provides the heat for baking. It glows red when activated and maintains consistent temperature throughout the cooking cycle. Replace this element if your oven won't heat up, bakes unevenly, or if you see visible damage like cracks or breaks in the coil.

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

Fix rattling or noisy oven fan with this convection fan blade. Restores proper airflow for even baking temperatures. Mounts directly on motor shaft.

Replace your oven's cooling fan cover if it's cracked, broken, or missing. This protective cover installs over the cooling fan assembly to shield internal components.

This is a convection heating element for an oven, typically a circular or loop-shaped element located at the rear wall of the oven cavity near the convection fan. It provides even heat distribution when using the convection cooking mode. Replace this element if convection baking produces uneven results, the element shows visible damage or burn-through spots, or the convection mode fails to heat at all.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.
