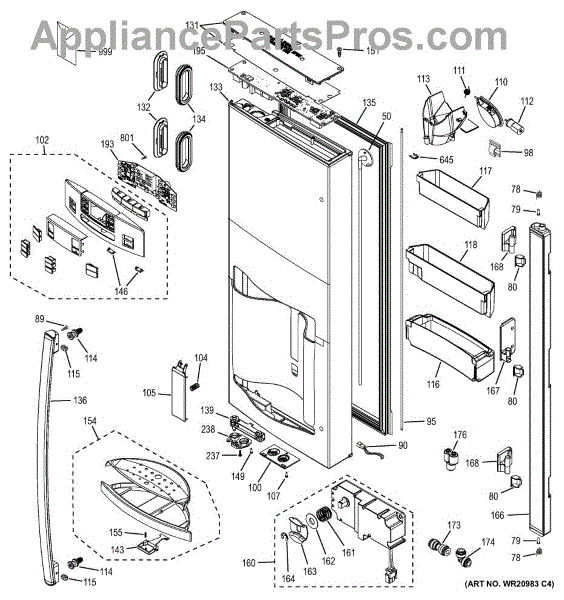

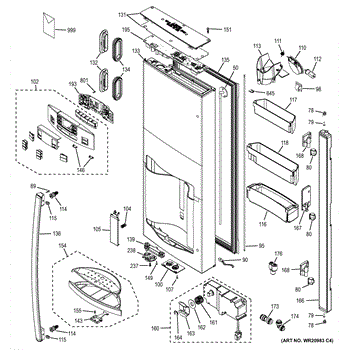

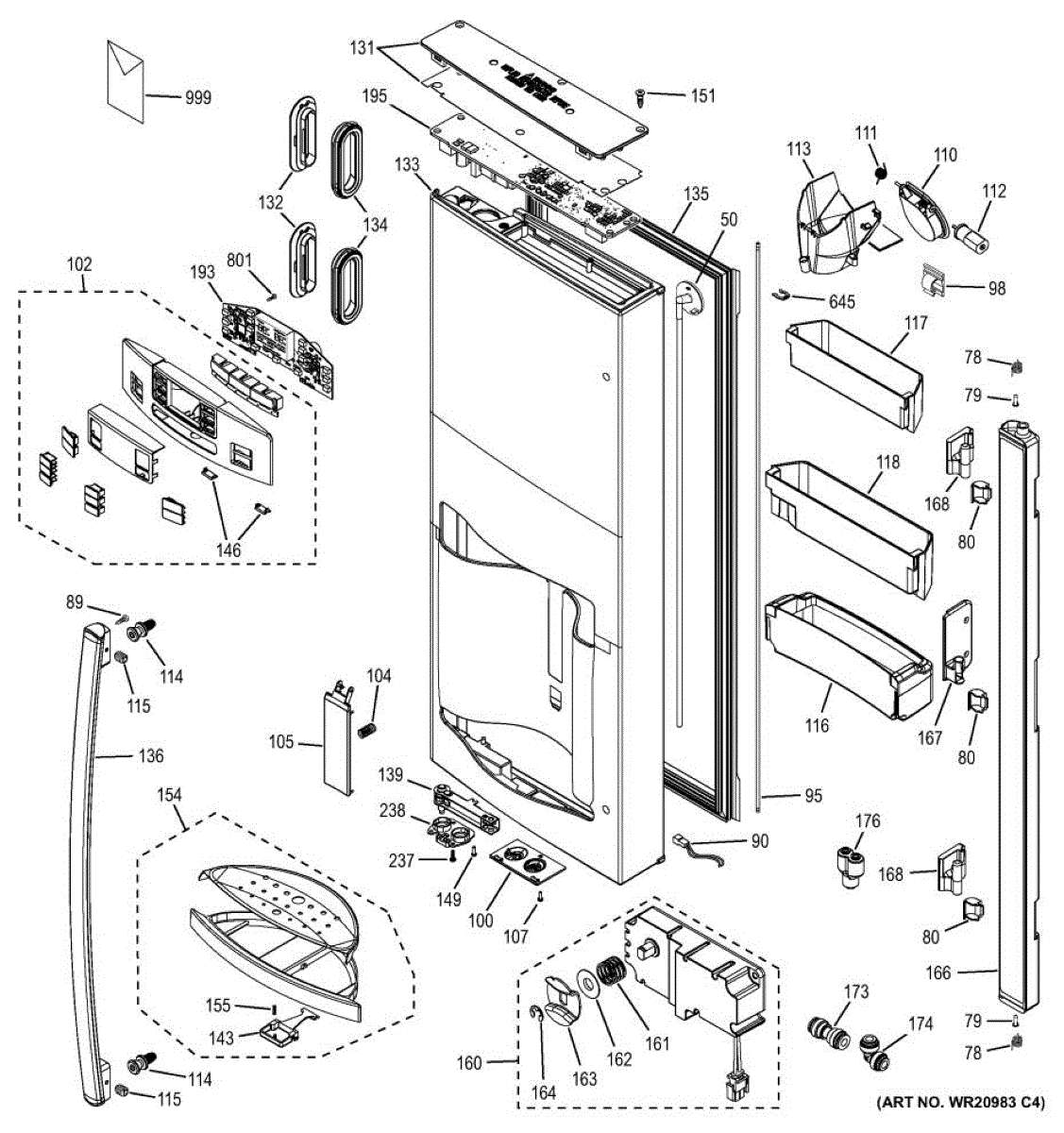

Parts for Ge DFE29JSDASS: 01 - Dispenser Door Parts

The Flapper Door Spring is an OEM part for GE refrigerators. It ensures the proper operation of the ice dispenser's flapper door by providing the necessary tension for the door to open and close correctly. This helps in maintaining the internal temperature and preventing warm air from entering the freezer.

You should replace the flapper door spring if it becomes worn out or damaged. Over time, the spring can lose its tension due to constant use, become bent or broken from mishandling, or suffer from rust and corrosion.

Symptoms of a bad flapper door spring include:

• The ice dispenser flapper door not closing properly
• Warm air entering the freezer compartment
• Increased frost buildup around the ice chute
• Unusual noises when the ice dispenser is used

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Display Assembly is an OEM replacement part for GE refrigerators. It is the user interface component that displays important information, such as temperature settings, operational modes, and any error codes or notifications. NOTE: Control board is NOT included. Must be ordered separately.

Symptoms of a faulty refrigerator display assembly include:

• No display or a blank screen
• Erratic or flickering display
• Difficulty reading or interpreting the information on the display

Causes of a bad display assembly can include electrical malfunctions, physical damage from impact or moisture exposure, or simply normal wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This small return spring provides the tension needed for a lever, latch, or flap mechanism in select refrigerators, helping the component move smoothly and snap back to its correct resting position after use.

• Restores proper tension so the linked mechanism operates smoothly and returns to neutral
• Helps doors, latches, or levers close or engage consistently
• Typical failure signs: weak or missing spring force, parts that don't spring back, poor closure, or rattling
• Replacing a fatigued spring can improve feel and reliability of the mechanism

• Disconnect power; turn off the water supply if working near dispenser or ice components
• Note spring orientation and take reference photos before removal
• Use needle-nose pliers and control stored tension to avoid injury
• Inspect related clips, pins, or brackets and replace if worn

The Dispenser Actuator is an OEM part for GE refrigerators. This part activates the dispenser mechanism, allowing for the controlled release of ice or water when engaged.

Causes of a bad dispenser actuator can include mechanical wear and tear, damage from repeated use, or issues with the electrical connections that trigger the actuator.

Symptoms of a bad dispenser actuator include:

• The dispenser not responding when pressed
• Inconsistent or intermittent dispensing of ice or water
• A loose or wobbly actuator lever
• Unusual noises when attempting to use the dispenser

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This duct door assembly is the refrigerator's air damper door. It opens and closes to control cold-air flow from the freezer into the fresh-food compartment, helping maintain stable temperatures and reduce warm spots or localized frosting.

• Regulates airflow between freezer and refrigerator compartments
• Helps the unit reach and maintain set temperatures
• Seals the duct when closed to limit moisture and frost migration
• Also called an air diffuser/damper door; failure may show as poor airflow, fridge too warm, items freezing near the vent, or clicking from the damper area

• Disconnect power to the refrigerator before servicing
• Access the air duct/diffuser in the fresh-food section and remove its cover as needed
• Note the door's orientation; transfer any reusable seals or clips from the original if applicable
• After installation, the door moves freely and the vent path is unobstructed

This Duct Door Spring returns the dispenser ice chute door to the closed position and helps maintain a tight seal at the dispenser opening, reducing warm-air leaks, frost buildup, and melting or clumping ice.

• Provides the return tension for the dispenser duct/ice chute door after dispensing
• Helps keep cold air in and warm air out to limit frost and condensation at the dispenser
• Can reduce frost in the ice chute or ice clumping caused by air leaks

• Disconnect power to the refrigerator before servicing the dispenser
• Access the dispenser assembly; remove front panel/trim as required by your model
• Note spring orientation and engage it correctly on the duct door and pivot
• After installation, verify the door moves freely and seals fully before reassembly

The Motor Duct Door is an OEM part for GE refrigerators. It is the cover that houses the evaporator fan motor and ductwork in the refrigerator. The motor and ductwork circulate cold air throughout the unit to maintain even temperatures for food storage.

Causes of a bad motor duct door can include failed seals that compromise cooling performance or damage to the door and hinges that prevent proper opening and closing.

Symptoms of a bad motor duct door include:

• Warm or lukewarm air inside the refrigerator sections
• Improper airflow causes warmer or colder spots
• Difficulty opening or closing the duct door

Replacing with this genuine GE OEM part allows for optimal air circulation throughout the refrigerator. This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fastener Door Handle is an OEM component for GE refrigerators. This door handle provides a comfortable grip for accessing refrigerator shelves and bins. It attaches securely to the refrigerator door through durable metal fasteners.

Causes for a bad door handle could be cracks, damage, or stripped fastener holes resulting in a loose or detached handle. Regularly gripping and lifting may also cause normal wear over time.

Symptoms of a failing door handle include:

• The handle detaching completely from the door
• Looseness making the handle wobbly or unstable to hold
• Sharp edges or broken parts posing a safety risk

This OEM GE handle is also compatible with Hotpoint, RCA, and select Kenmore refrigerator models.

The Set Screw is an OEM part for GE refrigerators. The set screw fits into the handle assembly, ensuring a tight and stable connection to the refrigerator door. This set screw is essential for preventing the door handle from becoming loose or coming off, which can affect the ease of opening and closing the refrigerator door.

Causes of a malfunctioning Set Screw can vary. Normal wear and tear is a common issue, causing the screw to strip or loosen over time. Incorrect installation is another factor.

Symptoms of a bad Set Screw include:

• A loose refrigerator door handle, which may wobble or detach partially from the door.
• Difficulty in opening or closing the refrigerator door due to a lack of secure grip.
• The need to frequently retighten the door handle.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the top-left refrigerator door bin used on models with in-door ice. It restores secure storage and organization on the door so smaller items stay put when you open and close the refrigerator. What it does:

• Mounts on the top-left door position to hold and organize items near the in-door ice area
• Replaces a cracked, warped, or missing bin
• Helps prevent items from tipping or falling during door movement
• Addresses issues where the original bin won't stay seated or interferes with door closing

• 1 door bin

• Compare to your original to confirm the top-left position and mounting style before installing
• Remove contents; align the bin's tabs/hooks with the door slots and press firmly until fully seated
• Do not force; if working near the dispenser/ice system, power off the refrigerator and shut off water as needed

The Ice Door Bin is an OEM replacement part for GE side-by-side refrigerators. It consists of a detachable ice storage bin along with the hinged door that provides access. This component plays an important role in containing and supplying ice from the icemaker.

Causes of a bad ice door bin can include damage to the plastic material over time from repeated openings/closings. The internal ice scoop mechanism may become stuck or obstructed. Hinge or mounting components may become loose.

Symptoms of a bad ice door bin include:

• Difficulty opening or closing the ice door
• Ice cubes scattering out of the bin when accessed
• Inability to contain or guide ice for easy removal
• Leaks that allow water to pool underneath

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement fresh food door gasket that seals the refrigerator compartment to keep cold air in and moisture out. Restores proper door sealing to help reduce frost buildup, condensation, and uneven temperatures from a worn seal. What it does:

• Creates an airtight seal around the fresh food door to help maintain consistent internal temperatures.
• Keeps warm, humid air from entering the fresh food compartment, reducing frost and ice buildup.
• Helps prevent water pooling and door-edge condensation caused by a failing seal.
• Can improve cooling performance when the original gasket is cracked, torn, or no longer flexible.

• Unplug the refrigerator or switch off power at the breaker before beginning work to avoid electrical hazards.
• Remove food and shelves as needed for access; clean and dry the door frame surface before installing the new gasket.
• Warm the gasket (room temperature or gentle warm water) to increase flexibility for easier alignment; press firmly into the channel to seat evenly.
• If the gasket requires screws or adhesive, follow the OEM instructions.

8-18 hi/lo 5/8

Ice bucket and motor kit replaces a worn or cracked ice bin and its drive motor so your refrigerator can collect and advance ice properly. Restores ice storage and rotation for reliable dispensing. What it does:

• Holds and stores produced ice in the freezer's ice compartment.
• Drive motor rotates the bucket to advance ice toward the dispenser or ice chute.
• Replaces a cracked or damaged bin that leaks or chips ice.
• Helps stop symptoms such as a non-turning bucket, ice not dispensing, or unusual motor noise.

• Disconnect power to the appliance before starting any repair.
• Handle the bin and motor carefully to avoid damaging mounting tabs and electrical connections.
• Use basic hand tools; follow the OEM service manual or exploded parts diagram for correct removal and reassembly.
• After installation, reconnect power and cycle the ice maker to verify proper rotation and ice delivery.

This articulating mullion assembly is the folding center strip for the fresh food section. It mounts to one refrigerator door and swings over the center gap to complete the door seal, helping maintain temperature and reduce condensation.

• Folds over the gap between doors to create a reliable air seal
• Helps keep cold air in and warm air out for consistent cooling
• Replaces a broken, cracked, or misaligned flipper that won't fold or latch properly
• Common symptoms: moisture or frost between doors, doors not closing/sealing, or temperature fluctuations near the door opening

• Disconnect power before servicing.
• Open the doors, remove any covers/screws securing the mullion, and note orientation for reassembly.
• Transfer any reusable trims/caps from the old mullion to the new assembly if required.
• Verify smooth folding action and full gasket contact before restoring power.

The User Interface and Display Board is an OEM replacement part for GE refrigerators. This board controls the user interface functions including digital inputs, lighting, and display graphics.

Symptoms of a bad User Interface PCB assembly can include:

• Flickering, dimming, or non-functional control panel lights and display
• Faulty or unresponsive control buttons and touch inputs
• Disrupted communication between control functions and cooling system performance

Causes of a bad PCB assembly often stem from normal component degradation over time under heavy and repeated use. Other causes can be related to power surges or fluctuations that may damage electronic circuitry.

This OEM part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator door board profile is an OEM replacement part for GE refrigerator doors. It is the electronics responsible for operating door functions like illumination, alarm systems, temperature displays, and sealed system sensors.

Causes of a bad control board can include moisture penetration corroding circuits over time, cracks or breaks from impact, or malfunctions in electronic components.

Symptoms of a bad control board include:

• Lights or displays failing to illuminate as intended
• Inability to adjust the temperature or access diagnostic controls
• Alarms or audio components malfunctioning
• Disruptions to the refrigeration cycle from sensor faults

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge-mounted refrigerator door stop limits how far the door swings open, protecting the cabinet and nearby walls from impact. Replace a cracked or missing stop to restore a controlled, factory door swing and prevent overextension.

• Mounts on the door hinge to control the door's opening range
• Helps prevent the door or handle from striking adjacent walls or cabinets
• Common symptoms: door opens past its normal range, broken/missing stop, visible wear at the hinge stop
• Often needed after an impact or when the original stop cracks from fatigue

• Disconnect power; turn off water to the door if applicable
• Support the door before loosening hinge fasteners; door removal may be required on some models
• Install the stop on the correct hinge location (right or left as required) and tighten hardware securely
• Verify door swing and clearance before fully loading shelves
