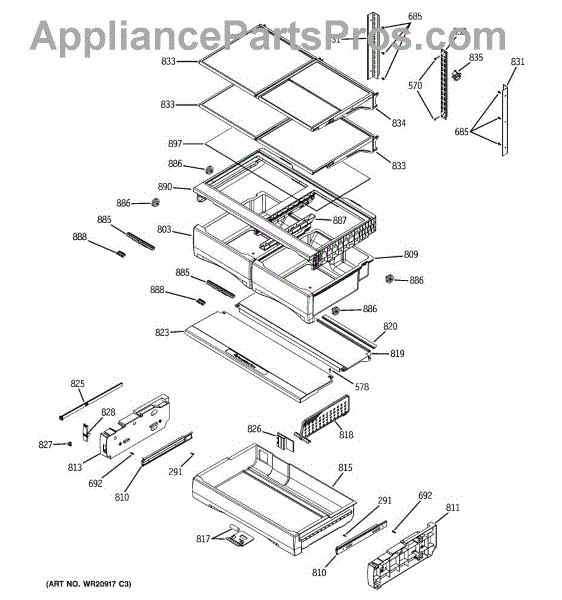

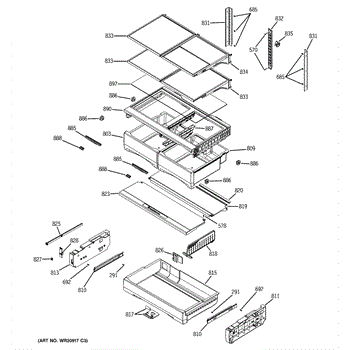

Parts for Ge DFE29JSDASS: 09 - Fresh Food Shelves Parts

This SCR is a solid-state switching module that controls on/off power flow in select appliance circuits. Replacing a failed SCR helps stop intermittent operation and restores reliable switching for affected motors or heating elements. What it does:

• Regulates electrical switching in the control circuit to turn motors or heaters on and off.
• Used where a solid-state switch is required for smooth, repeatable control.
• Symptoms of a failing SCR: appliance won't start, runs intermittently, hums without operating, or a controlled circuit does not respond.
• Restores proper switching when the original SCR is shorted, open, or erratic.

• Disconnect power to the appliance before beginning service; follow lockout/tagout procedures.
• Handle as an electronic component—avoid static discharge and protect the spade terminals from bending or contamination.
• Ensure correct orientation and secure mounting; reconnect wiring exactly as shown on the appliance wiring diagram.

8-18 CA HX 1/2 S

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

This left-side vegetable pan is the replacement food-storage tray that holds produce and fits into the refrigerator crisper area for organized storage. It restores proper support and containment for fruits and vegetables. What it does:

• Provides a stable tray for storing fruits and vegetables in the crisper compartment
• Replaces cracked, warped, or broken pans that can let produce sit unevenly or fall through
• Helps keep items contained and easier to organize when the drawer is removed
• Works with the refrigerator's crisper assembly to maintain normal storage function

• One left-side vegetable pan

• Remove food and any loose components before installing to avoid damage or injury
• Slide the pan into the left crisper slot until it seats; ensure proper alignment with drawer rails
• Handle glass or plastic panels carefully to avoid chips or cracks

This right-hand vegetable pan assembly replaces a cracked or damaged crisper pan so produce stays supported and drawers slide smoothly. It restores the refrigerator's storage area for fruits and vegetables. What it does:

• Supports and contains produce in the right-side crisper area to prevent items from falling into lower compartments.
• Provides a flat, stable surface so the associated drawer slides and seats correctly.
• Stops leaks or pooling caused by cracks or breaks in the original pan.
• Helps eliminate drawer binding or uneven alignment when the pan is damaged.

• Remove food and the crisper drawer before replacing the pan; reinstall drawer carefully to ensure proper seating.
• No special tools typically required; slide or snap the pan into the existing tracks per the fridge's hardware layout.
• Inspect surrounding rails and stops for damage; replace any broken hardware before installing the new pan.
• Handle edges carefully and recycle the old part according to local regulations.

This replacement meat pan assembly provides a removable, easy-to-clean pan for storing deli and meat items and for catching drips to help keep the refrigerator interior sanitary and organized. What it does

• Holds deli/meat items and helps contain juices to reduce mess and cross-contamination.
• Replaces a cracked, warped, missing, or leaking meat pan that no longer seals or sits correctly.
• Restores proper fit on the shelf track so the pan slides in and out smoothly.
• Helps reduce odors and makes cleanup faster by keeping spills contained.

• Remove food and shelves from the area before installing to avoid spills.
• Slide the pan into the existing shelf track until it seats; most installs require no tools.
• Inspect supporting rails or brackets for damage and replace if worn to ensure proper fit.
• Follow basic food-safety cleaning before first use; disconnect power to appliances only if required per your model's service instructions.

This replacement meat pan divider fits inside the deli/meat pan drawer to help separate foods and keep the drawer organized. It restores the original partition function for proper food separation. What it does:

• Replaces a cracked, warped or missing divider to restore separation between deli items
• Keeps meats and cheeses organized and helps reduce contact between different foods
• Helps maintain intended drawer layout so items sit securely and don't shift
• Fits into the factory meat/deli pan track for a stable partition

• Remove food and the deli/meat pan before installing to avoid spills
• Slide the divider into the existing pan grooves until it seats; no special tools required
• Inspect pan tracks for damage before installing; replace any broken components
• Handle carefully to avoid sharp edges and follow refrigerator power-off and food-safety guidance when doing repairs

The Shelf Assembly is an OEM component for GE side-by-side refrigerators. Adjustable and positioned on tracks inside fresh food cabinets, it provides flexible storage organization. Reliable shelving depends on a functioning assembly.

Symptoms of a defective shelf assembly can involve:

• Shelves no longer slide smoothly along mounting rails
• Warped or sagging surfaces inhibiting balanced item placement
• Brittle, cracked, or missing retaining clips

Causes include years of wear from repeated loading/unloading weakening mounting mechanisms, moisture exposure compromising the integrity of plastic compounds, or damage due to accidental dropping during cleaning.

Replacing with this genuine GE shelf assembly ensures sturdy, sliding shelving optimized for years of organized food storage. Compatible replacements include Hotpoint, RCA, and Kenmore brands seeking to restore functionality and useful lifespan.


Restore flexible storage with this refrigerator tuckaway shelf assembly. It provides a sturdy surface that can retract to make space for tall items, keeping the fresh food compartment organized and accessible.

• Provides a stable storage surface in the refrigerator compartment
• Tuckaway design retracts to accommodate tall containers and pitchers
• Replaces a shelf that is cracked, broken, missing, or won't stay level
• Restores smooth retract/extend operation when the mechanism is damaged or jammed

• Disconnect power and remove items from the area before starting
• Handle carefully; components can be fragile. Wear cut-resistant gloves if replacing broken parts
• Slide the rear of the shelf into the side-wall rails, then lower the front until fully seated
• The tuckaway feature moves smoothly and the shelf sits level before reloading

Vegetable bin top frame that supports and aligns the crisper/vegetable drawer while maintaining a sealed opening to help preserve produce. Replacing a worn or cracked frame restores proper drawer fit and reduces gaps that trap moisture. What it does:

• Supports and aligns the crisper/vegetable drawer for smooth insertion and removal.
• Replaces cracked, warped or broken frames that can cause drawer sagging, sticking, or poor seating.
• Helps reduce air leakage and moisture buildup that contribute to premature spoilage of produce.
• Matches original-equipment fit and function to restore correct drawer alignment and sealing.

• Unplug the refrigerator or disconnect power before starting any service.
• Remove contents and the crisper drawer before replacing the frame to avoid damage.
• Basic hand tools may be required; handle edges carefully to avoid cuts or damage to surrounding trim.

The Vegetable Pan Glass Cover is an OEM part for GE refrigerators. It serves as a cover for the vegetable pan, helping to maintain optimal humidity levels and freshness for stored produce by providing a sealed environment.

You should replace this glass cover if it becomes damaged or worn out. Common causes of a bad vegetable pan glass cover include cracks or breaks from heavy loads or accidental impacts, as well as scratches or wear from regular use.

Symptoms of a bad vegetable pan glass cover include:

• Cracks or shattered glass
• Difficulty fitting the cover properly over the pan
• Visible damage or missing pieces
• Reduced effectiveness in keeping produce fresh

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
