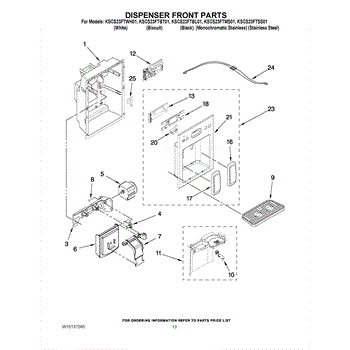

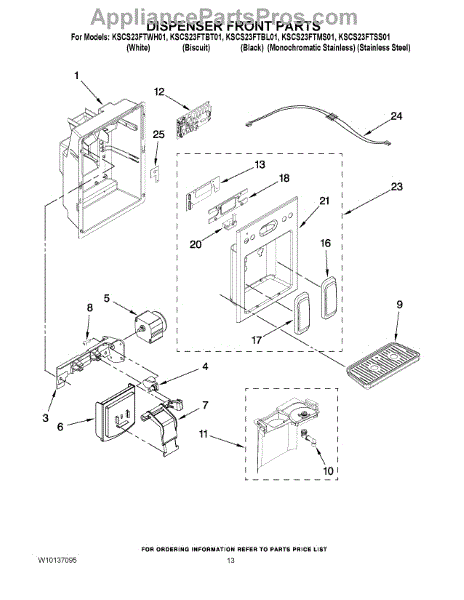

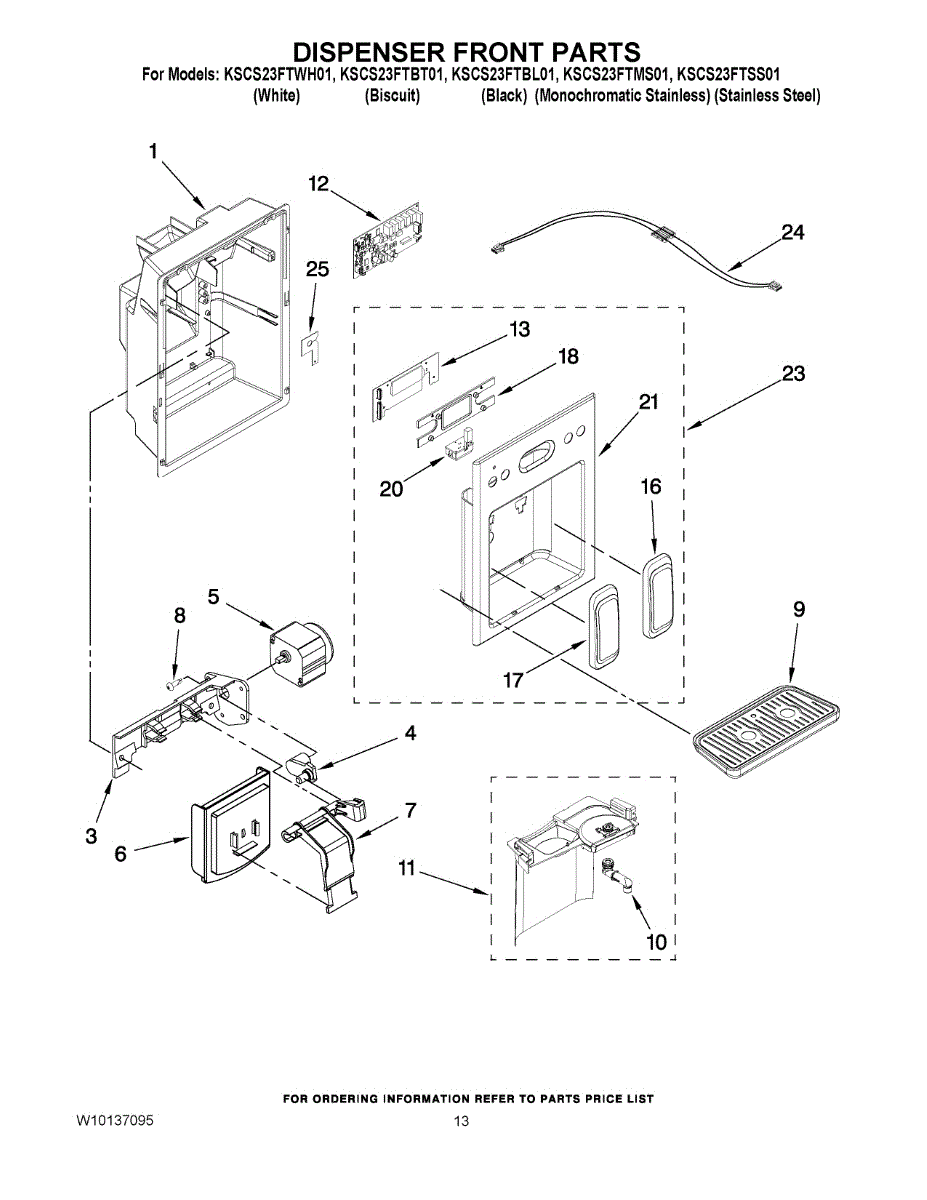

Parts for Kitchenaid KSCS23FTBT01: 08 - Dispenser Front Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

This mounting bracket secures the ice maker motor assembly to the freezer housing so the motor stays aligned for reliable ice production. Replacing a damaged bracket restores proper motor positioning and reduces unwanted movement. What it does:

• Secures the ice maker motor to the freezer housing to maintain correct alignment.
• Prevents motor wobble or misalignment that can cause noisy operation or incomplete ice ejection.
• Helps ensure the motor drives the ice maker gears properly for consistent ice production.
• Commonly replaced when the bracket is cracked, bent, or missing mounting points.

• Always disconnect power to the appliance before servicing.
• Access the ice maker per the service manual; remove the ice maker or access panel as needed to reach the bracket.
• Reuse original mounting hardware unless new hardware is explicitly included; align bracket so the motor turns freely without binding.

This door bracket connector links the door bracket to its mating linkage in select refrigerator door assemblies. Replacing a worn or broken connector restores a solid connection so the door operates smoothly and stays properly aligned. What it does:

• Couples the door bracket to the hinge/actuator linkage to maintain alignment
• Helps ensure smooth door opening and closing
• Supports proper door sealing to reduce gaps or misalignment
• Replace if cracked, broken, or missing; common symptoms include a loose, clicking, or misaligned door

• Disconnect power before servicing; support the door as needed to prevent strain on hinges
• Remove the relevant bracket/cover to access the connector; note the connector's orientation
• Transfer and reuse existing screws/fasteners
• After installation, check door alignment and gasket contact all around

Ice dispenser door won't open or ice won't drop? This refrigerator ice dispenser motor powers the chute door mechanism. Moderate DIY repair, 30-45 minutes.

Ice falling out of dispenser or chute door won't close? This door chute directs ice flow and seals properly. Typical 30-minute DIY fix for dispensers.

Fix ice melting in the bin or ice chute door not closing properly. This dispenser door support bracket mounts the flapper for a proper seal. 20-30 min repair.

Screw for control panel.

Includes cover part number 2305219

Color: White

Replaces a cracked, worn, or unresponsive dispenser pad on your refrigerator door. Installs in the front dispenser housing for water and ice.

Replacement actuator pad for refrigerator water and ice dispensers. Snaps into dispenser panel. Replace if cracked, broken, or tabs are damaged.

Replaces a cracked, worn, or unresponsive dispenser pad on your refrigerator door. Installs in the front dispenser housing for water and ice.

Replacement actuator pad for refrigerator water and ice dispensers. Snaps into dispenser panel. Replace if cracked, broken, or tabs are damaged.

Control panel indicator light for refrigerators. Replace when dim, flickering, or non-illuminating to restore status feedback. Verify fit with your model.

Secures interior panels, trims, and components in your refrigerator. Replace when clips break to eliminate rattles and restore proper alignment. Confirm fit with your model number before ordering.
