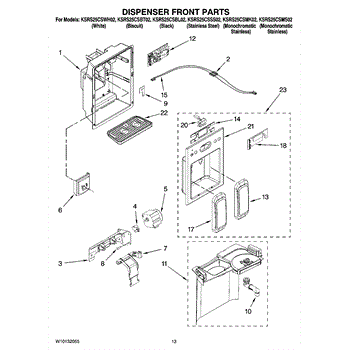

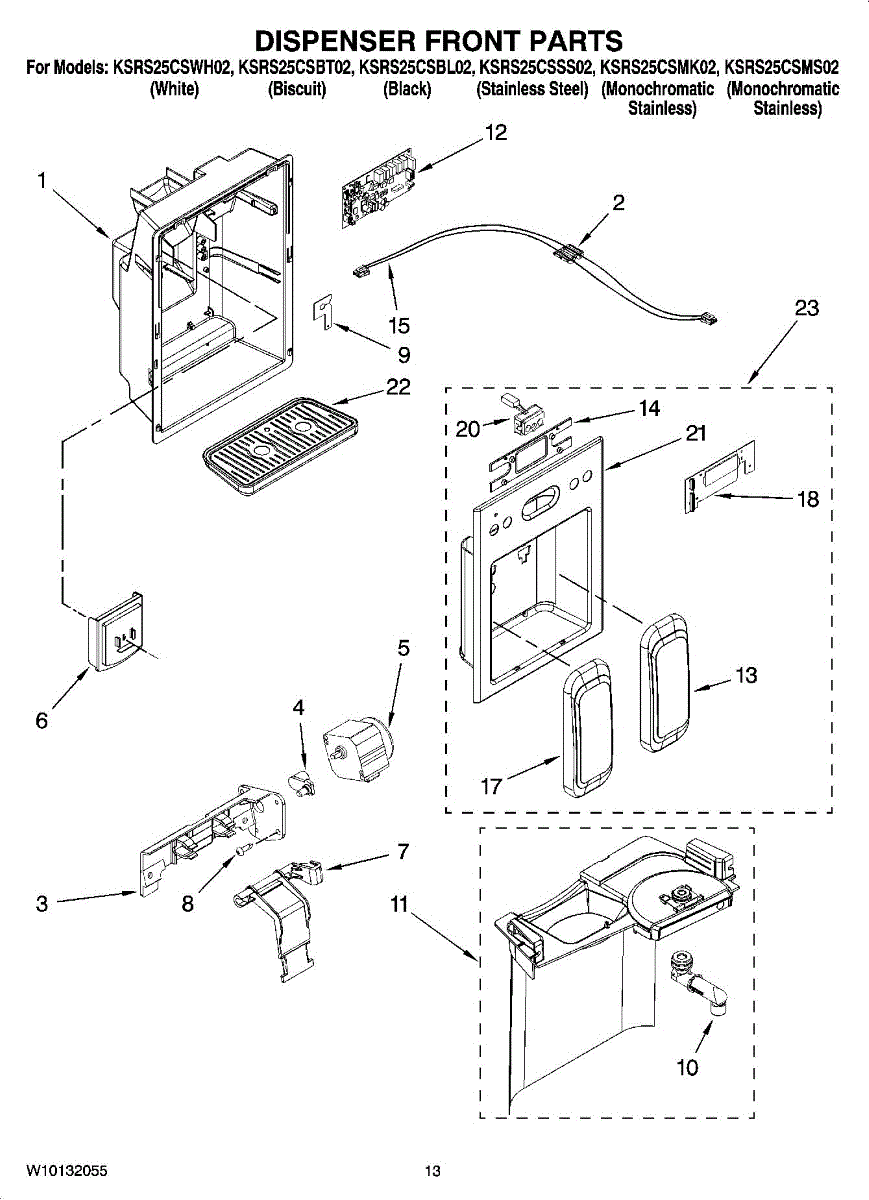

Parts for Kitchenaid KSRS25CSSS02: 08 - Dispenser Front Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This mounting bracket secures the ice maker motor assembly to the freezer housing so the motor stays aligned for reliable ice production. Replacing a damaged bracket restores proper motor positioning and reduces unwanted movement. What it does:

• Secures the ice maker motor to the freezer housing to maintain correct alignment.
• Prevents motor wobble or misalignment that can cause noisy operation or incomplete ice ejection.
• Helps ensure the motor drives the ice maker gears properly for consistent ice production.
• Commonly replaced when the bracket is cracked, bent, or missing mounting points.

• Always disconnect power to the appliance before servicing.
• Access the ice maker per the service manual; remove the ice maker or access panel as needed to reach the bracket.
• Reuse original mounting hardware unless new hardware is explicitly included; align bracket so the motor turns freely without binding.

This door bracket connector links the door bracket to its mating linkage in select refrigerator door assemblies. Replacing a worn or broken connector restores a solid connection so the door operates smoothly and stays properly aligned. What it does:

• Couples the door bracket to the hinge/actuator linkage to maintain alignment
• Helps ensure smooth door opening and closing
• Supports proper door sealing to reduce gaps or misalignment
• Replace if cracked, broken, or missing; common symptoms include a loose, clicking, or misaligned door

• Disconnect power before servicing; support the door as needed to prevent strain on hinges
• Remove the relevant bracket/cover to access the connector; note the connector's orientation
• Transfer and reuse existing screws/fasteners
• After installation, check door alignment and gasket contact all around

The Ice Dispenser Motor is an OEM part for Whirlpool refrigerators. This part powers the mechanism that dispenses ice from the ice maker to the user, ensuring smooth and efficient ice dispensing.

Causes of a bad ice dispenser motor can include wear and tear over time, electrical issues, or physical damage to the motor components.

Symptoms of a bad ice dispenser motor include:

• Ice dispenser not working
• Unusual noises coming from the dispenser area
• Ice not dispensing properly or at all
• The dispenser motor running but not dispensing ice

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Chute is an OEM part for Whirlpool refrigerators. This part directs ice from the ice maker into the ice bucket or dispenser chute. The door chute ensures a smooth and controlled flow of ice, preventing spills and maintaining the efficiency of the ice dispensing system.

Common issues include cracks, warping, or blockages that can obstruct the flow of ice and affect the dispenser's performance.

Symptoms of a bad door chute include:

• Ice not dispensing properly
• Ice jamming or clogging in the chute
• Leaks or drips around the ice dispenser area
• The door chute not sealing correctly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part is the dispenser ice door support. It mounts and aligns the ice chute flapper (ice door) in the freezer door so it pivots and seals correctly, helping reduce warm air leaks, frost, and ice clumping. What it does:

• Provides the pivot/mount for the dispenser ice chute door (flapper)
• Keeps the ice chute door aligned to help maintain a proper seal
• Wear or broken tabs may cause the flapper to stick open/closed
• May lead to frost in the chute, condensation, air leaks, or clumping ice

• 1 ice door support

• Unplug the refrigerator and remove the ice bin before servicing
• Remove dispenser trim/control to access the chute assembly
• Note spring and flapper orientation; transfer the door, seal, spring, and any hardware to the new support
• Verify smooth flapper movement and full seal before reassembly and restoring power

Screw for control panel.

This small mounting retainer secures interior panels and components so covers, trims, or small assemblies stay aligned and stable. Replacing a broken clip restores fit and reduces rattles or loose panels for a neater appliance appearance. What it does:

• Holds trim, panel, or small component in place to maintain proper alignment
• Prevents vibration-related noise by keeping parts securely seated
• Replaces a worn, cracked, or lost factory clip to restore original fit
• Works where the original snap-in retainer or mounting tab is used

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access may require removing an exterior panel or trim; keep fasteners organized
• Use appropriate tools and gentle prying to avoid damaging surrounding parts

This replacement electronic control board restores the appliance's main control functions and user interface so cycles, timing and selections respond correctly. Use this board to address control failures and restore normal operation. What it does:

• Manages cycle selection, timing and electronic commands for the appliance
• Controls user interface elements such as buttons and display responses
• Common failure symptoms: unresponsive controls, cycles that won't start or complete, or intermittent/incorrect cycle behavior
• Restores electrical control when the existing board is diagnosed as faulty

• Disconnect power before starting work to avoid shock or damage
• Photograph wiring and connector locations before disconnecting to ensure correct reassembly
• Handle the board by its edges and avoid touching components; observe ESD precautions where possible
• Reconnect all harnesses securely, reassemble panels, restore power and run a test cycle to repair

Color: White

Used on the black and aluminum models

This genuine replacement pad provides the specified cushion or contact surface in your appliance. Replacing a worn, flattened, or missing pad restores proper fit, helps quiet operation, and protects adjacent parts from rubbing and premature wear.

• Provides the designed cushion/spacing or contact surface between components
• Helps dampen vibration and reduce rattles or squeaks in the area of use
• Protects finishes by preventing metal-to-metal or plastic-to-metal contact
• Restores proper alignment or smooth actuation where a pad is specified
• Common signs it's due: missing pieces, cracking, compression, residue, or new noises from that location

• Disconnect power (and water, if applicable) before servicing
• Access the pad location per your model diagram; note original placement and orientation
• Clean the mounting surface; if adhesive-backed, peel liner and press firmly; if clip- or friction-fit, seat fully
• Reassemble and test for proper fit, quiet operation, and smooth function

Used on the black and aluminum models

This genuine replacement pad provides the specified cushion or contact surface in your appliance. Replacing a worn, flattened, or missing pad restores proper fit, helps quiet operation, and protects adjacent parts from rubbing and premature wear.

• Provides the designed cushion/spacing or contact surface between components
• Helps dampen vibration and reduce rattles or squeaks in the area of use
• Protects finishes by preventing metal-to-metal or plastic-to-metal contact
• Restores proper alignment or smooth actuation where a pad is specified
• Common signs it's due: missing pieces, cracking, compression, residue, or new noises from that location

• Disconnect power (and water, if applicable) before servicing
• Access the pad location per your model diagram; note original placement and orientation
• Clean the mounting surface; if adhesive-backed, peel liner and press firmly; if clip- or friction-fit, seat fully
• Reassemble and test for proper fit, quiet operation, and smooth function

Includes cover part number 2305219
