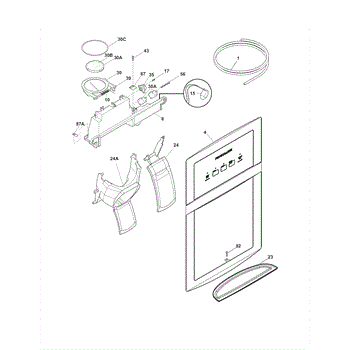

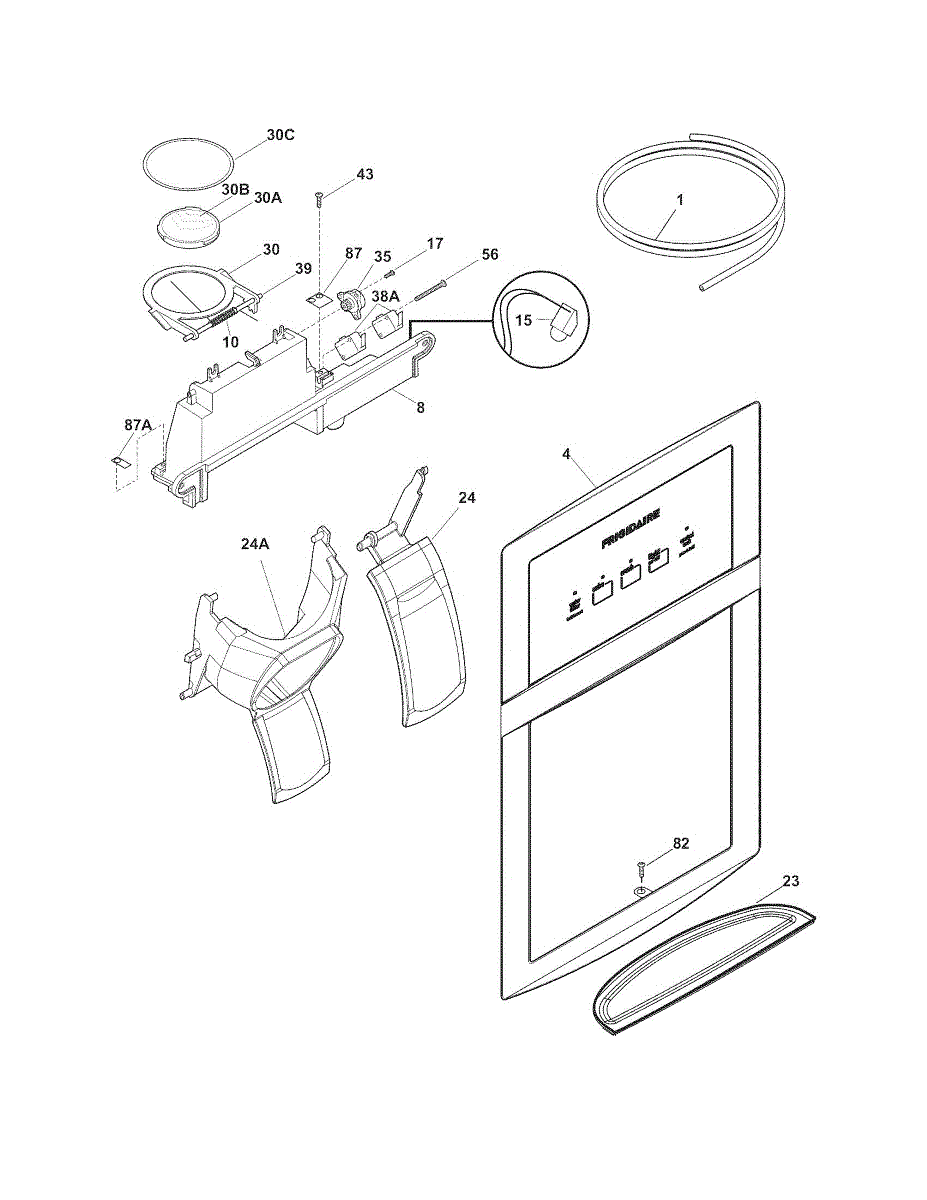

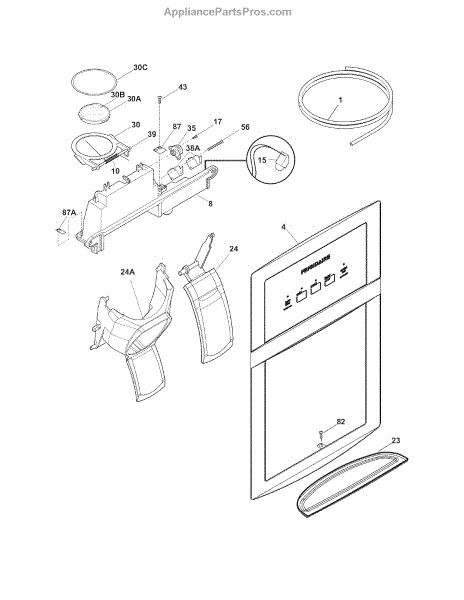

Parts for Crosley CRSH268MS7: Dispenser Parts

Water supply tube that routes water through your refrigerator to the ice maker and dispenser. Replace if cracked, leaking, or damaged during moving.

Fix a refrigerator that won't cool, runs constantly, or has no display with this electronic control board. Moderate difficulty repair for side-by-side models.

Torsion spring that returns the dispenser ice chute door to closed position. Replace if broken, weak, or missing to restore proper door closure.

Replace your refrigerator's dispenser wiring harness if damaged, frayed, or worn. Connects dispenser board to controls in side-by-side models.

Single mounting screw for securing refrigerator panels, brackets, and trim pieces. Replaces worn, stripped, or missing screws to restore proper fit.

Plastic drip tray that installs beneath your refrigerator's water and ice dispenser. Replace if cracked, stained, or missing to catch spills and drips.

Replacement drip tray that sits beneath your refrigerator's ice and water dispenser. Catches drips and spills to keep the area clean and dry.

This assembly includes the dispenser actuator lever and ice chute funnel located behind the dispenser opening on the front of the refrigerator. It directs ice from the ice maker into your glass and activates the dispenser mechanism when pressed. Replace this part if the dispenser lever is broken, the ice chute is cracked or missing, or ice is not dispensing properly when the lever is engaged.

Insulating foam that installs on the ice chute door to prevent warm air and moisture around the dispenser. Replace if compressed, cracked, or missing.

Rubber ice dispenser door center seals the ice chute on your refrigerator. Replace if cracked, worn, missing, or not sealing properly to stop frost buildup.

Rubber seal for the ice dispenser door on side-by-side refrigerators. Replaces cracked, worn, or missing seals that allow warm air into the freezer.

This is the ice chute door assembly that covers the dispenser opening on the front of the refrigerator. It acts as a flap that opens when ice or water is dispensed and closes afterward to prevent warm air from entering the freezer compartment. Replace this part if the chute door is cracked, stuck, or no longer sealing properly - symptoms include frost buildup inside the dispenser area or ice melting and refreezing around the chute.

Replace your refrigerator's dispenser wiring harness if damaged, frayed, or worn. Connects dispenser board to controls in side-by-side models.

Fix a dispenser that won't stop running water or ice, or won't dispense at all. This switch controls water and ice flow. Moderate DIY repair.

This door hinge pin forms the pivot for the refrigerator door hinge, keeping the door supported and aligned. Replacing a worn or missing pin restores smooth door movement and consistent sealing.

• Acts as the hinge's pivot shaft to support the door
• Helps maintain door alignment so the gasket can seal properly
• Reduces wobble and scraping at the hinge point
• Typical failure symptoms: door sagging, misalignment, poor closing, or a loose/wobbly hinge

• Unplug the refrigerator and remove items from the door to reduce weight.
• Support the door; remove hinge cover and screws, then lift the door off the hinge.
• Replace the hinge pin in the hinge bracket; transfer any existing spacers/bushings as designed.
• Reinstall and align the door; tighten hardware and verify smooth operation and seal contact.

Secures the micro switch in your refrigerator's ice dispenser assembly. Replace if screw is rusted, stripped, or missing to properly mount the switch.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

Bearing plate for refrigerators. Provides structural support for rotating components. Replace if cracked, warped, or damaged to restore stability.

Bearing plate for side-by-side refrigerators. Mounts and supports rotating components. Replace if cracked, worn, or broken to restore stability.

Secures the grille on your refrigerator. Replace if broken, loose, or missing to ensure proper grille attachment. Confirm fit with your model number.

Replace your refrigerator's light lens cover when cracked, yellowed, or missing to restore proper interior lighting. Confirm fit with your model number.

Water tube routes water from the supply to the dispenser or ice maker. Replace if cracked, leaking, or accidentally cut during door removal or service.

Replacement water tube for side-by-side refrigerators. Routes water between filter and valve. Replace if cracked, kinked, brittle, or leaking.

Seals internal refrigerator components to prevent air leaks and moisture intrusion. Replace when worn to maintain proper airflow and temperature control.

This refrigerator electronic control board manages key cooling and defrost functions. Replacing a failed board helps restore accurate temperature regulation and responsive operation so the appliance runs as designed.

• Regulates compressor and fan operation based on temperature sensor inputs
• Controls the automatic defrost cycle to prevent frost buildup
• Coordinates signals to the user controls/display and other components
• Common failure symptoms: not cooling or intermittent cooling, unit won't run, excessive frost/ice, unresponsive or erratic controls

• Disconnect power to the appliance before service
• Use anti-static precautions; handle the board by the edges only
• Photograph wiring; move connectors one at a time to the matching terminals on the new board
• Ensure all connectors are fully seated before reassembly and testing

Replaces cracked, leaking, or melted ice maker fill tube that carries water from the supply line to the ice mold. Installs in the freezer compartment.
