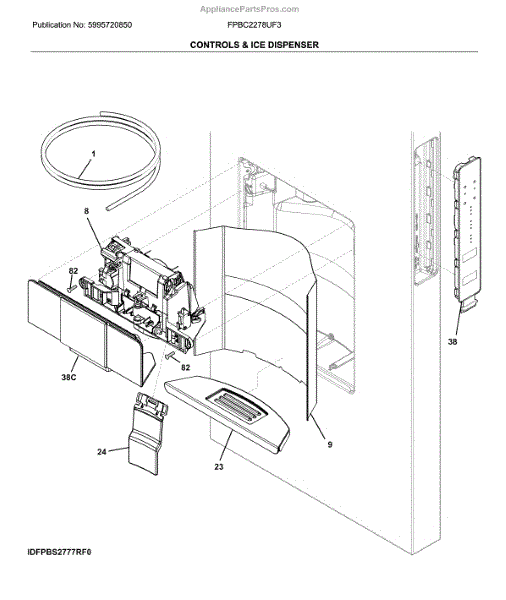

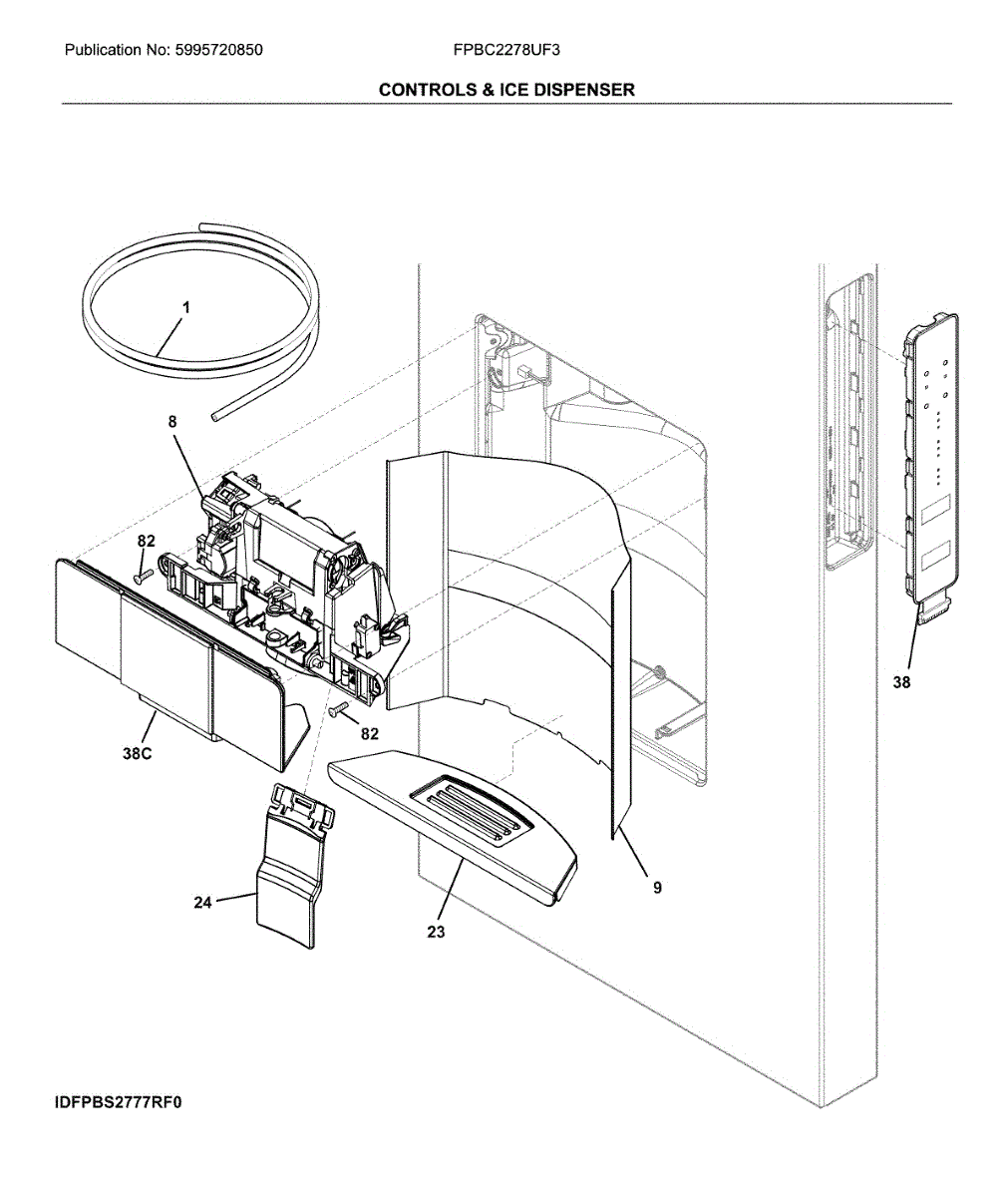

Parts for Frigidaire FPBC2278UF3: Dispenser Parts

Replacement water tube that carries water to your refrigerator's dispenser and ice maker. Restores proper water flow and helps stop leaks or poor dispenser/ice maker performance when the original tube is damaged or clogged. What it does:

• Directs water from the inlet/fill valve to the dispenser and/or ice maker.
• Replaces cracked, split, or clogged tubing that can cause leaks or reduced water flow.
• Helps address symptoms such as visible leaks, no water from the dispenser, or an ice maker that won't fill.
• Fits inline with existing fittings and clamps.

• Shut off the refrigerator power and water supply before beginning work.
• Remove necessary panels or shelving for access; handle tubing and fittings carefully to avoid damage.
• Inspect and replace any worn clamps, gaskets, or fittings.
• After installation, restore water and power, check all connections for leaks, and run the dispenser/ice maker to confirm proper operation.

The ICE AND WATER DISPENSER MODULE is an OEM part for Frigidaire refrigerators. It is an integrated system that automatically dispenses ice and filtered water through the refrigerator door without opening it.

Causes of a faulty dispenser module can include mineral or sediment buildup inhibiting components like water valves or ice delivery mechanisms over time. Electronic control boards may also fail.

Symptoms of a bad dispenser module include:

• Inability to dispense ice or water when requested
• Spills, leaks, or drips occurring around the dispenser area
• "Ice jamming" where ice fails to drop properly into the bucket
• Display of error codes on control panels

This OEM Frigidaire replacement dispenser module features precision components designed to reliably deliver ice and water on demand. Replacing a defective module restores these convenient automatic functions.

It is also compatible with counter-depth French door models by KitchenAid, Maytag, Jenn-Air, and select Kenmore-branded refrigerators.

Color: Stainless

This actuator is the small mechanical link that engages an internal switch or mechanism in your appliance. Replacing a worn or broken actuator restores positive engagement so the related feature responds reliably when pressed or driven.

• Transfers motion from a lever/button or solenoid to the switch, door, or flap it controls
• Common symptoms: feature will not activate, lever feels loose or sticks, intermittent response, or visible cracks/missing tab
• Restores proper travel and consistent switch engagement
• Direct replacement matches the original actuator used in the assembly

• Disconnect power before servicing; shut off water if working near any dispenser plumbing
• Access the relevant control, dispenser, or latch housing
• Note and transfer any springs/clips in the same orientation to the new part
• After reassembly, verify smooth movement and correct switch activation before full use

This user interface control panel assembly lets you operate your appliance's settings and displays status information so you can select cycles, adjust temperatures, and see error indicators. Replaces a failed or unresponsive front control panel to restore normal user control. What it does:

• Houses touchpads/buttons and the display used to select cycles, set temps, and start or cancel operations
• Sends user inputs to the main control board so the appliance responds to commands
• Restores visible status indicators and error codes when a damaged or non-working panel is replaced
• Common symptom: unresponsive or missing button function, unreadable display, or incorrect displayed settings

• One user interface / control panel assembly as pictured

• Disconnect power to the appliance before beginning work to avoid shock or damage
• Access may require removing exterior trim or top panel; handle the display and ribbon cable with care
• Match connector orientation and secure any brackets or screws; avoid forcing connectors
• If other control issues persist after replacement, test the main control board and wiring harness

The Dispenser Control Board is an OEM part for Frigidaire refrigerators. It regulates dispensing functions for options like filtered water and ice.

Causes of failure involve typical wear over extended periods of powering integrated circuits. Electrical faults or power fluctuations have the potential to damage sensitive components too.

Symptoms of a bad control board include:

• Water dispenser not working or responding properly
• Ice maker not producing ice as expected
• Error messages relating to dispensing features
• Responsiveness issues with any dispensing controls

This OEM Frigidaire replacement is also compatible with some Electrolux, Maytag, and Kenmore refrigerator models too.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This water inlet tube routes water from the inlet valve to the ice maker and dispenser, restoring proper water flow and helping prevent leaks. Use when the original tube is cracked, split, or blocking water delivery. What it does:

• Directs water from the refrigerator inlet valve to the ice maker and dispenser assembly.
• Restores normal water flow if the original tube is crushed, cracked, or blocked.
• Helps stop leaks associated with damaged or deteriorated inlet tubing.
• Common symptoms: no water to ice maker or dispenser, slow dispenser flow, or visible leaking beneath the fridge.

• Disconnect electrical power and shut off the household water supply before starting.
• Handle tubing carefully and avoid sharp bends or kinks when routing.
• Check and reuse or replace any associated fittings, clips, or seals as needed for a secure, leak-free connection.

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
