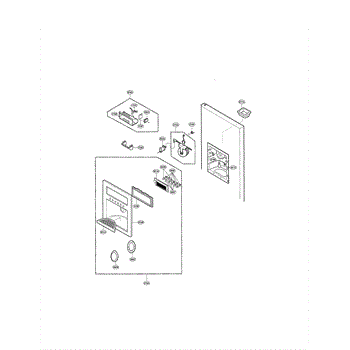

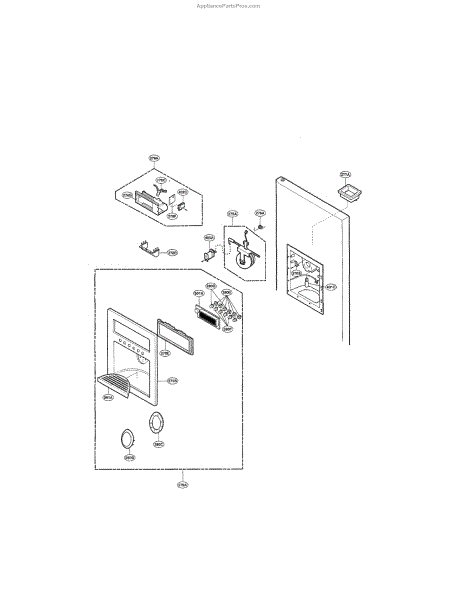

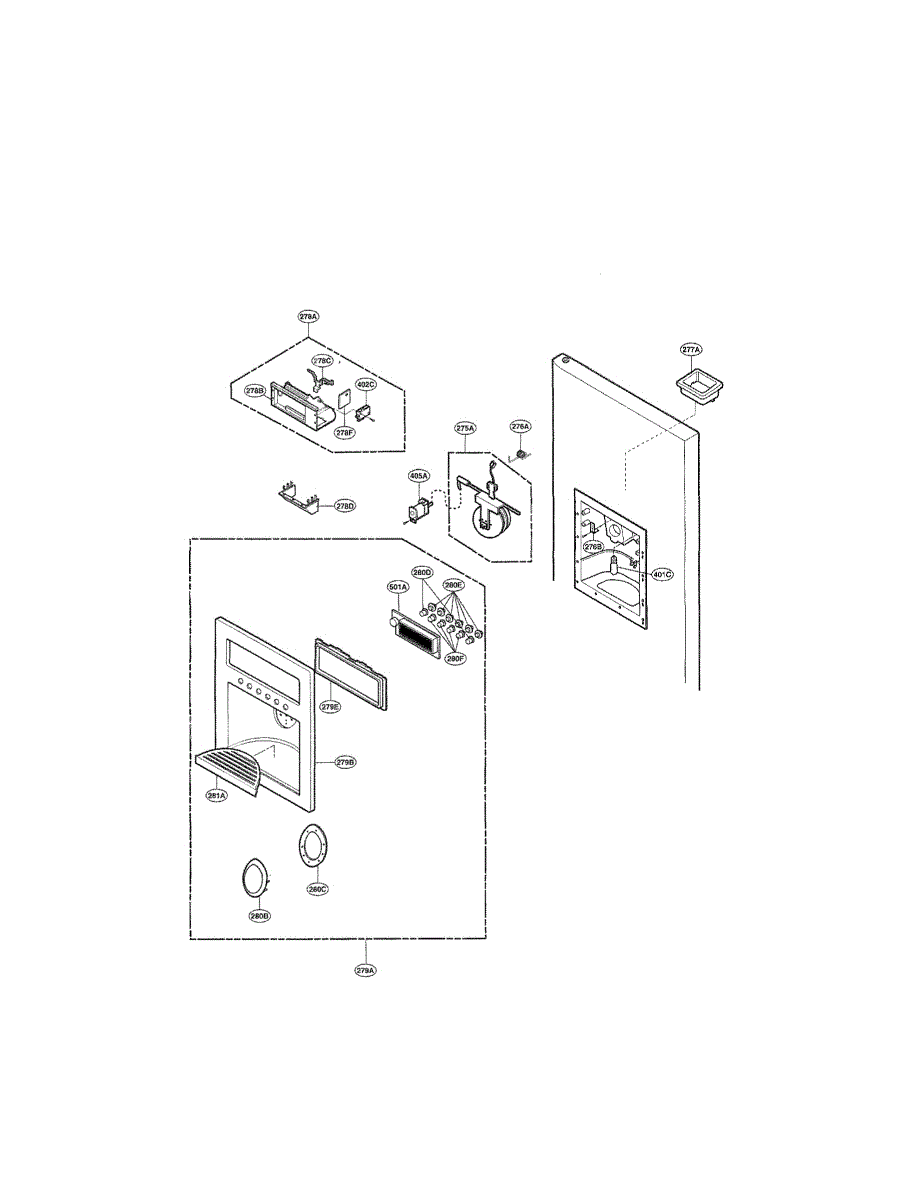

Parts for Lg LRSC21935TT: Dispenser Parts

The Ice Chute Door is an OEM part for LG refrigerators. It is located in the ice dispenser area on the front of the refrigerator. It opens and closes automatically when ice is dispensed, ensuring a controlled release of ice cubes or crushed ice into the user's glass or container. The door helps to prevent frost buildup, maintain proper insulation, and protect the ice inside the dispenser.

Causes of a faulty ice chute door can include wear and tear over time, damage due to regular use or accidental impact, or a malfunctioning door motor or solenoid.

Symptoms of a bad ice chute door may include:

• Difficulty in dispensing ice
• Frost or condensation forming around the ice chute area
• The door not opening or closing smoothly or completely

This OEM LG part can also be used on Kenmore/Sears appliances.

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

This replacement funnel assembly directs dispensed contents safely and cleanly from the appliance outlet into a cup or container, helping restore proper flow and prevent spills. It's a direct-fit component used in the dispenser area. What it does:

• Channels dispensed water/ice/solution from the dispenser outlet to the cup or container
• Prevents drips and misdirected flow that can cause pooling or messes
• Helps reduce ice jams or blockages in the dispenser path
• Restores correct alignment and sealing of the dispenser outlet

• Disconnect power (and water line if applicable) before beginning any work.
• Replace only with the exact part number; align tabs and snaps carefully to avoid damage.
• Typical tools: screwdriver or nut driver may be needed to remove fasteners; avoid overtightening.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

The Ice Funnel is an OEM replacement part for LG refrigerators. It is a component located within the ice maker assembly that guides freshly made ice cubes from the mold out into the storage bin. The precisely formed ice funnel ensures ice cubes are directed efficiently into the bin, preventing jams or blockages.

Causes of a bad ice funnel can include cracks or breaks that disrupt proper ice flow. Damage may occur over multiple ice harvests due to repeated pressure.

Symptoms include:

• Ice cubes getting stuck within the funnel rather than dispensing into the bin
• An accumulation of ice fragments inside the funnel
• Reduced ice production or incomplete cubes

Due to manufacturer changes, this part will not fit older models, you must also order the funnel frame part number 3210JA0006S.

This replacement is also compatible with models by Sears/Kenmore.

Dispenser cover only. Electronic Board and Touch Panel not included.

Color: silver. Measures about 9-1/2 inches wide by 5 inches deep.

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

The Ice Door Solenoid Assembly is an OEM replacement part for LG refrigerators. This assembly controls the opening and closing of the ice door, which allows ice to be dispensed from the freezer to the exterior of the appliance. When you request ice, the solenoid activates, opening the ice door and permitting ice to pass through.

Symptoms of a bad Ice Door Solenoid Assembly include:

• Ice door not opening or closing properly
• Failure to dispense ice
• Ice accumulating or jamming at the dispenser

Causes for a malfunctioning Ice Door Solenoid Assembly can include electrical issues such as faulty wiring, wear and tear from frequent use, or mechanical problems affecting the solenoid's ability to move the ice door.

This OEM LG part is also compatible with Sears/Kenmore models.

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.
