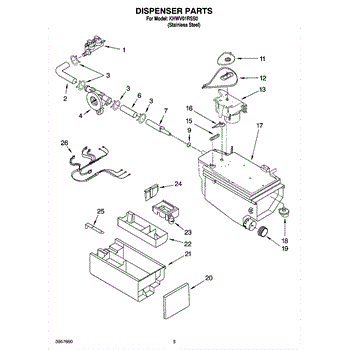

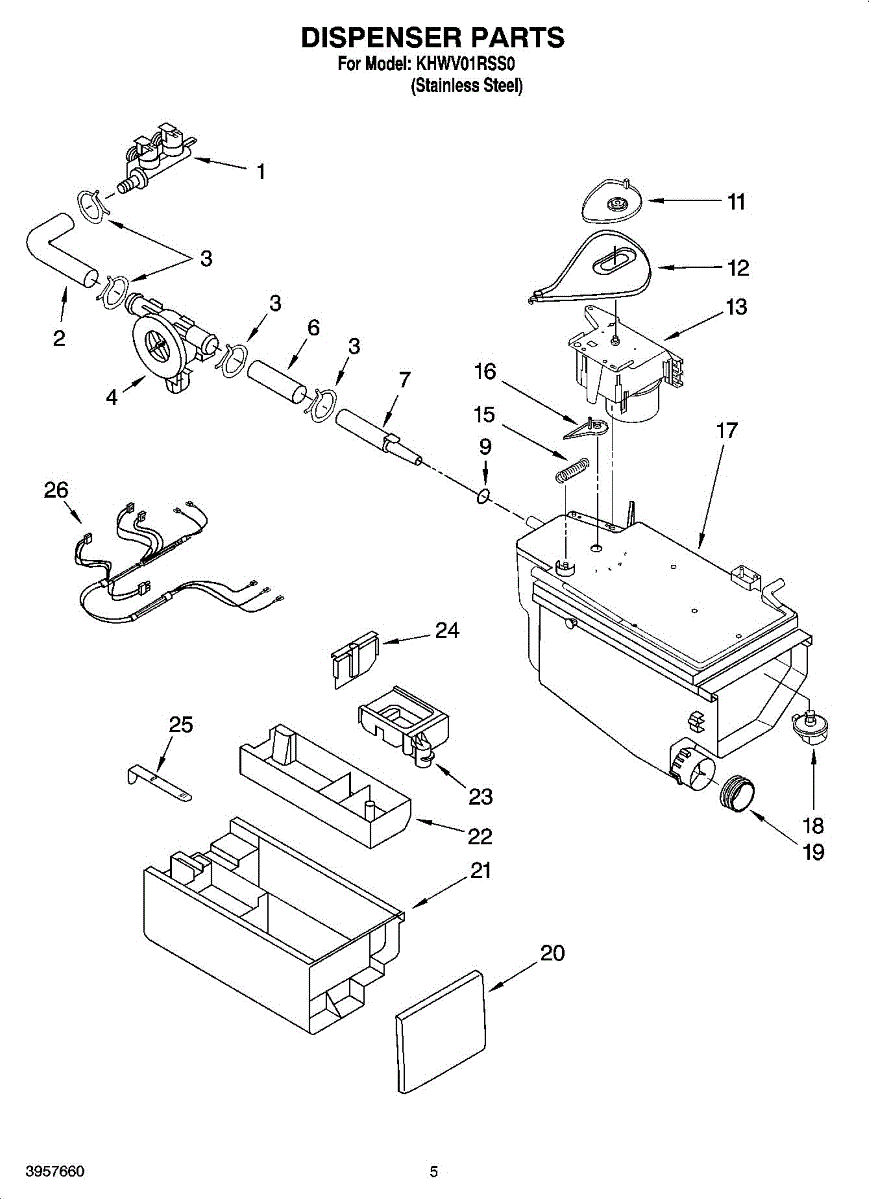

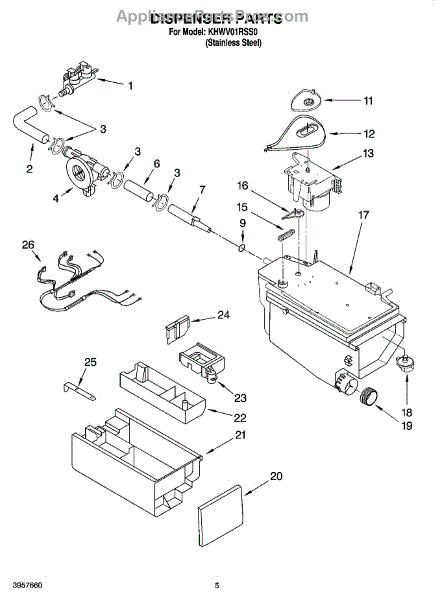

Parts for Kitchenaid KHWV01RSS0: 04 - Dispenser Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Water Valve is an OEM part for Whirlpool washing machines. It controls the flow of water into the washer during the fill cycles, ensuring that the machine gets the correct amount of hot and cold water for washing and rinsing clothes. This valve is essential for the proper functioning of the washing machine.

You should replace the water valve if it becomes faulty. Causes of a bad water valve can include mineral buildup from hard water, electrical issues, or wear and tear from regular use. A malfunctioning valve can lead to issues such as inadequate water flow, leaking, or the washer not filling properly.

Symptoms of a bad water valve include:

• The washer not filling with water or filling slowly
• Water leaks around the valve area
• Inconsistent water temperature during fill cycles
• The washer not advancing through cycles due to improper water levels

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This L-shaped flowmeter hose is part of the washer's water inlet circuit. It routes water through the flow sensor and maintains a tight, leak-free connection, helping the machine fill accurately and operate as designed.

• Channels incoming water through the flowmeter for correct fill measurement
• Maintains a secure, leak-resistant connection within the fill system
• Typical failure signs: water dripping during fill, visible cracking/hardening, loose fit, or kinks restricting flow
• A damaged or leaking hose can contribute to inaccurate fill sensing or fill-related errors

• Disconnect power and shut off both water supplies before servicing
• Note routing/orientation; transfer existing clamps or install new ones if needed
• Fully seat hose on each fitting and secure clamps without over-tightening
• Restore water and power, then run a fill to check all connections for leaks

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

The Water Inlet Flow Meter is an OEM part for Whirlpool washing machines. It is responsible for monitoring and regulating the flow of water entering the washing machine during the fill cycle, ensuring the correct amount of water is added for efficient and effective cleaning.

Causes of a faulty Water Inlet Flow Meter include sediment buildup, physical damage, or electrical issues with the meter's sensors or connections.

Symptoms of a bad Water Inlet Flow Meter include:

• Incorrect water levels in the wash tub
• Washing machine not filling properly with water
• Error codes related to water inlet flow or water level issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This water distribution lever directs spray to the correct wash zones so your dishwasher cleans dishes evenly. It replaces a worn or broken lever to restore proper water routing and reliable wash performance. What it does

• Routes incoming spray water between spray arms or wash zones for correct coverage
• Can prevent weak or uneven cleaning caused by a broken or stuck lever
• Stops water from being sent to the wrong zone when the lever is damaged
• Works as the mechanical linkage that changes water flow path during cycles

• One water distribution lever

• Turn off power to the appliance before starting any repair
• Shut off the water supply and drain remaining water from the unit if applicable
• Basic mechanical replacement—remove access panels and mounting fasteners; align and secure the new lever

This dispenser switch is the small electrical switch behind the dispenser lever/paddle. When pressed, it signals the control to dispense, helping restore a responsive lever feel and consistent ice or water dispensing.

• Detects lever/paddle movement and closes the circuit to start dispensing
• Helps fix: no ice or water when the lever is pressed
• Helps fix: must press very hard or hold the lever "just right"
• Helps fix: intermittent operation or a stuck-on dispenser due to a failing switch

• Disconnect power before servicing; turn off water supply if working near water lines
• Access the switch behind the dispenser panel/escutcheon; carefully release trim and tabs as designed for your model
• Note wire positions; move connectors to the new switch in the same locations (NO/NC/COM as applicable)
• Before reassembly, verify a positive "click" and confirm the switch changes continuity when actuated

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This distribution nozzle directs water from the dishwasher's supply to the spray arm to maintain an even spray pattern during cycles. Replacing a damaged or clogged nozzle helps restore proper spray coverage and cleaning performance. What it does:

• Directs and focuses water flow to the spray arm for consistent wash coverage.
• Prevents weak or uneven spraying that can cause poor cleaning results.
• A cracked, clogged, or worn nozzle can reduce water pressure or divert spray.
• Works as part of the dishwasher's water distribution/manifold system.

• Disconnect power and water supply before beginning any service.
• Access typically through the lower tub area after removing the lower spray arm and/or access panels.
• Inspect mating surfaces for debris and ensure the nozzle seats fully to prevent leaks.

This replacement seal restores a watertight connection in your washer to help prevent leaks and moisture damage. It replaces a worn, cracked, or flattened original seal so components stay tightly sealed during use.

• Creates a compression barrier between mating parts to contain wash water
• Helps stop drips and seepage during fill, wash, or drain
• Can address water leaks, moisture under the unit, or musty odors from trapped water
• Replaces seals that are brittle, torn, or misshapen

• Disconnect power and turn off water supply before servicing
• Access the seal location per your model's service information and note orientation
• Clean grooves and mating surfaces; seat the new seal evenly (a light film of water or mild soap can aid installation)
• Reassemble and run a short cycle to check for leaks

The Detergent Drawer is an OEM part for Whirlpool washing machines. It is responsible for holding and dispensing detergent and fabric softener during the wash cycle. The drawer ensures that the right amount of detergent is released at the appropriate time for optimal cleaning performance.

Causes of a bad detergent drawer can include clogging or residue buildup, damage to the drawer or its tracks, or malfunctioning mechanisms that prevent the proper dispensing of detergent. Over time, these issues can lead to inefficient cleaning and potential damage to your washing machine.

Symptoms of a bad detergent drawer include:

• Detergent not dispensing properly
• Residue left in the drawer after the cycle
• Difficulty sliding the drawer in or out
• Leaks or spills from the drawer area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Washer Detergent Container is an OEM replacement part for Whirlpool washers. It fits securely inside the dispenser drawer and is compartmentalized to hold detergent, fabric softener, and bleach. This container ensures the proper distribution of each cleaning agent during the wash cycle for optimal cleaning performance.

Over time, the detergent container may deteriorate due to exposure to chemicals, high temperatures, or buildup of residue, leading to potential leaks, blockages, or compromised distribution of cleaning agents.

Color: White

Symptoms of a faulty Washer Detergent Container include:

• Leaks from the dispenser drawer
• Clogged or restricted compartments
• Inconsistent or improper dispensing of detergent, fabric softener, or bleach

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drawer hook is the retainer that keeps an appliance drawer securely seated while still allowing easy release for cleaning or service. Replacing a worn or broken hook restores smooth, reliable drawer operation.

• Secures the drawer in its housing so it stays closed during use
• Acts as the catch/release point for removing the drawer when needed
• Helps maintain proper alignment for smooth opening and closing
• Common symptoms: drawer won't stay closed, pops open or falls out, won't latch, or the hook is visibly cracked/missing

• Disconnect power before servicing
• Fully open and remove the drawer to access the hook area
• Align the new hook with the slots/tabs and snap or seat it into place
• Avoid forcing components; refer to the service manual for model-specific steps
