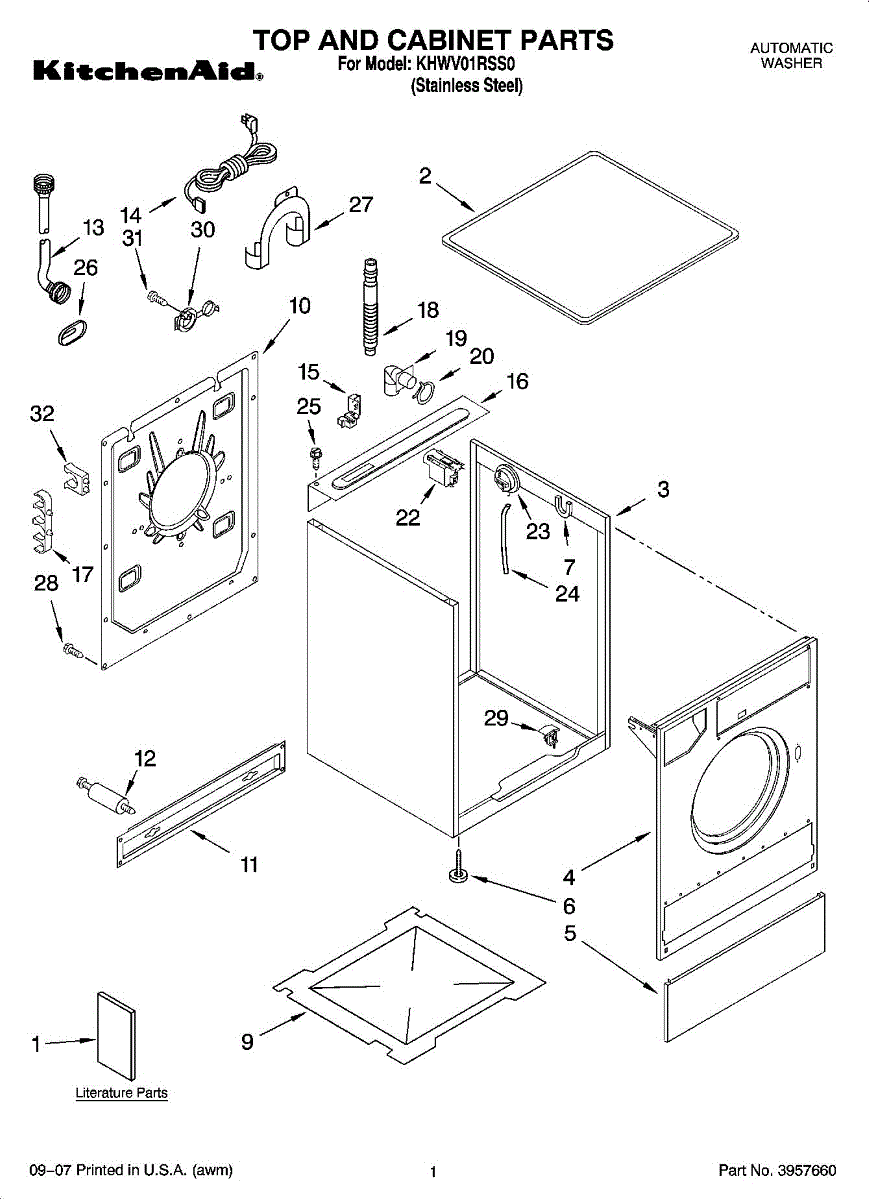

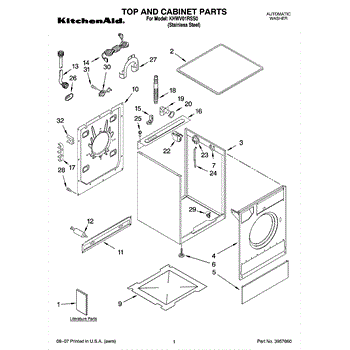

Parts for Kitchenaid KHWV01RSS0: 01 - Top And Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This is a leveling foot for a washing machine. A leveling foot is located at the bottom of the washing machine and can be adjusted so that the washing machine sits level on the floor, even if the floor itself is not level. There is one leveling foot included in this pack. A new leveling foot may be needed if the original is broken or stripped. If it won't hold a position, then the leveling foot will need to be replaced. These are very simple to replace, with the exception of needing to reach underneath the unit. These screw into the bottom of the washing machine. Never perform care and maintenance on an appliance that is powered on.This is a genuine Whirlpool part and is sourced directly from the manufacturer. It is sold individually. This specific leveling foot is compatible with washing machines manufactured by Whirlpool, KitchenAid, and Maytag.

This spring bracket secures the washer's suspension spring to the cabinet, helping support and stabilize the tub during spin. Replacing a bent or broken bracket restores proper suspension alignment and reduces vibration, banging, and off-balance interruptions.

• Anchors a suspension spring to the cabinet/frame to support the tub
• Helps control tub movement and absorb spin forces during spin cycles
• Helps with symptoms such as excessive vibration or banging, frequent out-of-balance stops, tub sagging/leaning, or visible damage at the spring mount

• Disconnect power; turn off water supply and move the washer for safe access
• Support the tub and carefully relieve spring tension; wear gloves and eye protection
• Transfer the suspension spring to the new bracket and secure with existing fasteners
• Run a test spin to check for vibration

Includes all four shipping bolts.

This power cord is the replacement electrical lead that supplies mains power to the appliance, restoring safe, reliable operation when the original cord is damaged or worn. What it does

• Delivers AC power from the wall outlet to the appliance's internal wiring and controls.
• Replaces frayed, cut, melted, or otherwise damaged cords that can cause intermittent power or safety hazards.
• Helps eliminate issues like no power, intermittent power loss, or visible cord insulation damage.
• Restores a secure connection at the appliance strain-relief and terminal block when installed correctly.

• One replacement power cord.

• Always disconnect power at the circuit breaker or unplug the appliance before installing.
• Inspect terminal block and strain-relief; replace any damaged hardware and secure the cord per the appliance wiring diagram.
• Follow the appliance manufacturer's wiring diagram for correct conductor routing and grounding.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This outer drain hose routes wastewater from your washer to the household standpipe or sink. Replacing a cracked, kinked, or clogged hose restores proper draining and helps reduce leaks at the back of the appliance.

• Carries discharge water from the drain pump outlet to the home drain connection
• Damage such as splits, pinholes, or hardening can cause leaks during the drain cycle
• Kinks or blockages can lead to slow or no draining and water left in the tub
• Visible wear, brittleness, or recurring drain errors are common signs the hose needs replacement

• Disconnect power and turn off water supply before servicing
• Pull the washer forward to access; keep towels or a pan ready for residual water
• Detach the old hose from the pump/outlet and household drain; transfer and reuse clamps or brackets as required by your model
• Route the new hose without kinks, secure all connections, follow your model's manual for drain placement, then run a test drain and check for leaks

This electrical connector links wiring within the appliance's harness, restoring a secure, reliable connection for proper operation. Use it to replace a damaged or corroded connector that's causing intermittent power or component failures.

• Creates a solid electrical connection between harness leads
• Helps resolve issues like intermittent operation, no power to a component, or visible heat damage at a connection point
• Maintains correct current flow and reduces risk of arcing at loose terminals
• Designed to fit the specified harness location per model

• Disconnect power and shut off utilities before servicing
• Match wire colors/positions and transfer one lead at a time to avoid miswiring
• Ensure terminals are fully seated and the connection is snug
• Inspect surrounding wiring for heat damage or corrosion and address as needed

This hose clamp secures a flexible hose to its fitting to help prevent leaks and hose blow-offs during operation. Replace a rusted, stripped, or distorted clamp to restore a tight, reliable seal at the connection point.

• Applies clamping force around a hose to hold it on a barb or stub fitting
• Commonly used on washer drain and tub-to-pump hose connections
• Helps stop drips at the joint and prevents the hose from slipping off
• Typical failure signs: leaking at the connection, clamp won't tighten, visible rust, broken/warped band

• Unplug the appliance and turn off water supply; expect some residual water
• Seat the hose fully on the fitting; place the clamp just behind the bead/barb
• Tighten until snug and secure; do not overtighten to avoid damaging the hose
• Run a short test cycle and recheck for leaks at the connection

This RFI noise filter conditions the AC power entering your microwave, reducing electrical interference and helping protect and stabilize the control and power circuits. Replace it if the unit is dead or trips a breaker when starting.

• Filters radio-frequency/electromagnetic noise on the incoming AC line
• Helps stabilize power to the control, relays, lights, and fans
• Failure may cause no display or intermittent loss of power
• A shorted filter may blow the line fuse or trip the household breaker when plugged in or when Start is pressed

• Disconnect power by unplugging the microwave or switching off the dedicated circuit breaker
• For over-the-range units, remove the microwave from the wall to safely access internal components
• Label and transfer wires to matching terminals; mount the filter securely and route wiring away from sharp edges

The Pressure Switch is an OEM part for Whirlpool washing machines. This component is crucial for monitoring and controlling the water level within the washer, ensuring it fills to the appropriate level for each cycle.

Common causes of a bad pressure switch include electrical faults, wear and tear from regular use, or damage due to exposure to water and detergent. These issues can prevent the switch from accurately detecting and regulating water levels.

Symptoms of a bad pressure switch include:

• Washer overfilling or underfilling
• Inconsistent water levels during cycles
• Error codes related to water level issues
• The washer not progressing through cycles properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Level Pressure Switch Hose is an OEM replacement part for Whirlpool washing machines. This hose connects to the water level pressure switch, transmitting pressure changes as the tub fills and drains. It ensures the washing machine accurately gauges the water level, preventing overfilling or insufficient water during cycles.

Causes for a malfunctioning Water Level Pressure Switch Hose can include clogs, kinks, or wear and tear over time that affects its ability to transmit pressure changes effectively.

Symptoms of a bad Water Level Pressure Switch Hose include:

• The washing machine overfilling or not filling enough
• Inaccurate water level readings leading to inefficient wash cycles
• Water not draining properly, indicating a pressure transmission issue
• Visible damage or wear to the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This transport cover secures internal components during shipping and service to prevent movement and damage. It helps keep parts aligned and reduces noise caused by loose components while the appliance is being moved. What it does:

• Holds internal components in place during transport to prevent shifting or impact damage
• Reduces rattles and vibration caused by unsecured parts
• Protects delicate assemblies from knocks during delivery or handling
• Helps maintain alignment of components until the appliance is installed

• One transport cover

• Disconnect power and water before servicing the appliance
• Remove all shipping brackets and covers per the owner's manual before normal operation
• Use manufacturer-specified fasteners and torque; do not force or modify the part

A U-bend retainer designed to secure a U-shaped heating element or tubing in place, preventing movement and vibration for reliable operation. Fits as the replacement hold-down clip used on compatible Whirlpool HVAC and appliance assemblies. What it does:

• Secures U-shaped element or tubing to the appliance frame or mounting bracket
• Prevents rubbing or vibration that can lead to wear or noisy operation
• Helps maintain proper spacing and alignment of the element for consistent performance
• Used where a compact, U-shaped clamp is required to hold components safely

• One U-bend retainer clip as shown

• Inspect the surrounding area and replaced part for damage before installing
• Use basic hand tools; align clip over the U-bend and fasten to the designated mounting point
• Disconnect power and allow components to cool before attempting repair
• Replace with the exact OEM fasteners

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This Marquardt ground switch completes the appliance's ground connection so controls and safety systems have a proper reference. Replace a failed ground switch to restore reliable grounding and help eliminate related electrical faults. What it does:

• Provides the ground connection path used by controls and safety circuits.
• Replaced when continuity tests fail or when appliances have intermittent power, control errors, or nuisance breaker trips.
• Restores correct electrical grounding to help reduce fault conditions and erratic control behavior.
• Matches the original switch form and electrical connector layout for a direct replacement.

• Disconnect all power (unplug appliance and/or shut off breaker) before beginning service.
• Photograph or label wiring and connector positions before removal; transfer connectors to the new switch exactly.
• Inspect connectors and wiring for damage; replace any frayed or heat-damaged wiring.
