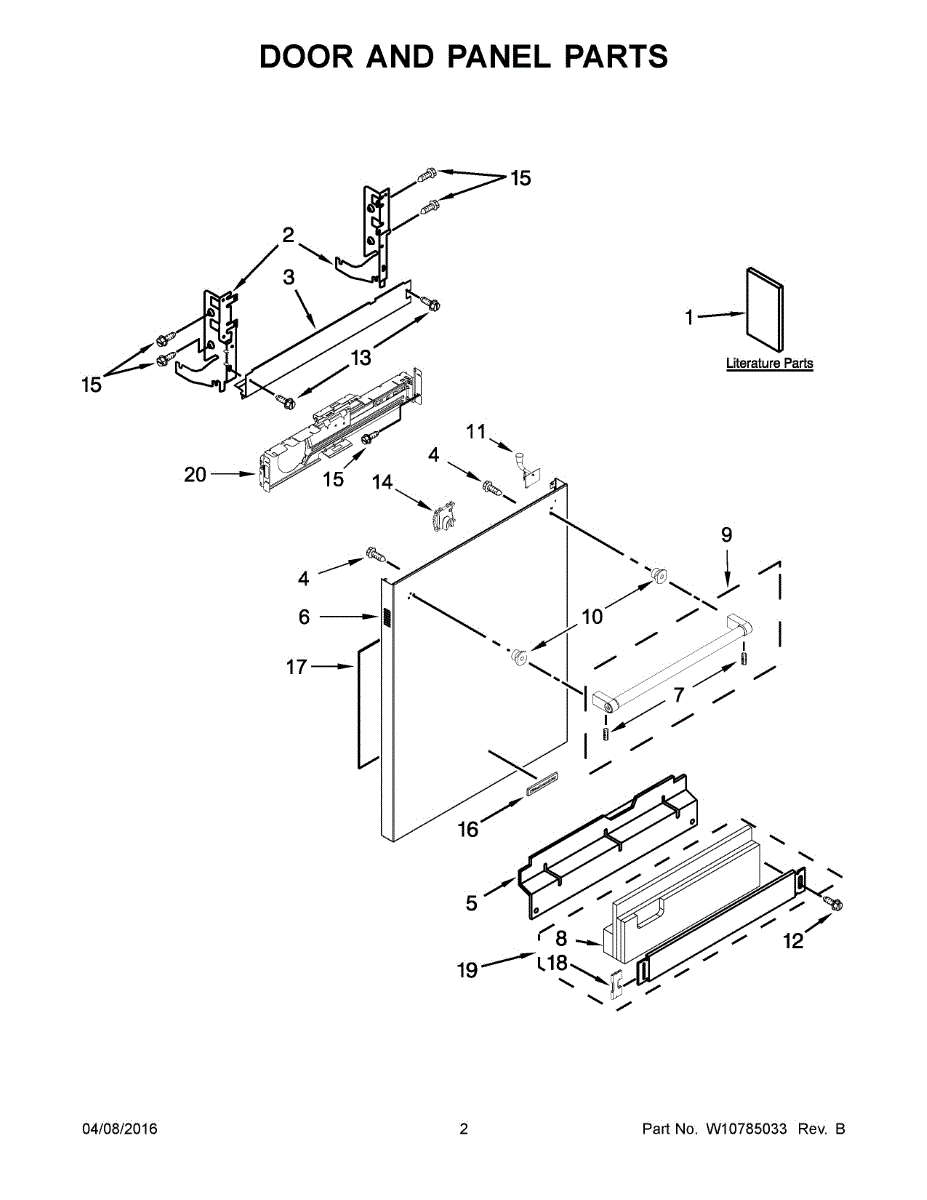

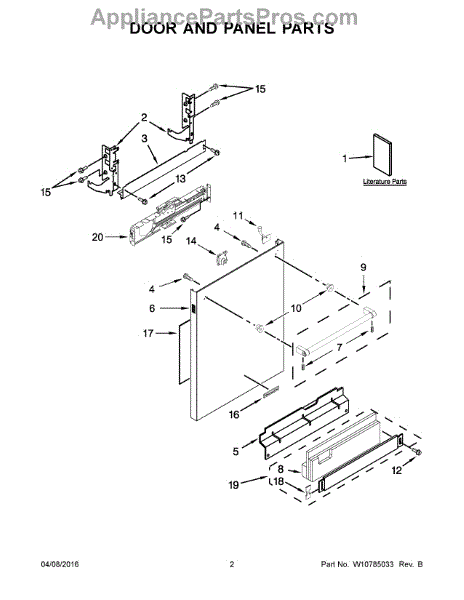

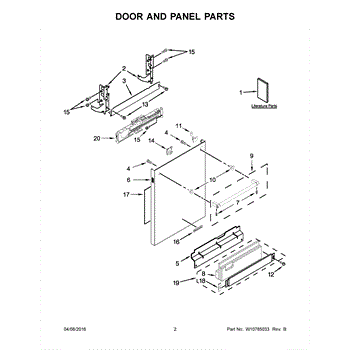

Parts for Kitchenaid KDTM404EBS0: 02 - Door And Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Hinge Assembly is an OEM part for Whirlpool dishwashers. This hinge assembly is responsible for attaching the dishwasher door to the main body, allowing it to open and close smoothly while maintaining a proper seal when shut.

Causes of a bad door hinge assembly can include regular wear and tear, damage from excessive force or accidental impacts, and corrosion from exposure to moisture and detergents.

Symptoms of a bad door hinge assembly include:

• The dishwasher door not closing properly or staying open
• Difficulty opening or closing the dishwasher door
• A misaligned dishwasher door
• Unusual noises or resistance when moving the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Hinge (RH) is an OEM replacement part for Whirlpool dishwashers. This hinge is installed on the right-hand side of the dishwasher door, allowing it to open and close smoothly while maintaining the proper tension and alignment. The hinge plays a crucial role in ensuring the door seals securely during operation, preventing leaks and enabling efficient cleaning performance.

Common causes include regular use leading to wear and tear, accidental impacts, or exposure to moisture, which can contribute to rust or corrosion.

Symptoms of a bad door hinge include:

• The dishwasher door not closing completely
• Difficulty opening or closing the door
• A sagging or misaligned door
• Unusual noises when moving the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This OEM screw secures appliance panels and components to keep parts aligned and reduce vibration. It's a simple replacement fastener used where original mounting screws have stripped, backed out, or been lost. What it does:

• Fastens panels, brackets, or small components to the appliance frame
• Restores secure fit to stop rattling or loose trim
• Replaces missing or stripped screws that prevent proper assembly
• Works as a direct hardware replacement when the OEM screw is required

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug — do not over-torque to prevent thread damage
• Replace only like-for-like fasteners in the same location for proper fit
• If access requires disassembly, unplug the appliance and follow manufacturer safety instructions

This replacement panel restores your appliance's original look while shielding internal components. Install a new panel to replace a dented, cracked, or missing piece and keep the assembly secure, aligned, and protected.

• Covers and protects internal parts while restoring the exterior finish and fit
• Provides the designed mounting surface for trim/handles; helps maintain alignment
• Replace when the panel is dented, cracked, warped, rusted, or mounting tabs are broken
• Helps resolve loose or rattling panels and visible gaps or misalignment

• Disconnect power; turn off water or gas supply if applicable
• Wear gloves and protect finished surfaces; handle carefully to avoid bending or scratching
• Transfer and reuse original screws, clips, insulation, and trim as directed by your service manual
• Fit and alignment before fully tightening fasteners

This control panel is the exterior interface for your appliance's controls, restoring a clean, functional surface for buttons and displays. It replaces damaged, cracked, or worn panels to improve usability and appearance. What it does:

• Serves as the user-facing console that holds buttons, switches, and display openings.
• Restores a secure mounting surface for control components and trims cosmetic damage.
• Can resolve issues where broken or warped panels prevent button operation or proper sealing.
• Matches OEM fit to maintain correct alignment with control assemblies.

• Disconnect power to the appliance before beginning any repair to avoid shock or injury.
• Handle panels carefully; edges and trim pieces can be sharp or fragile.
• Remove any trim or bezels and disconnect wiring harnesses only as needed to access mounting fasteners.

Color: Black

Color: Stainless

This factory screw secures components in your appliance to keep them properly mounted and stable during operation. Replacing a missing or damaged screw restores a tight fit and helps prevent vibration, noise, or loosening parts.

• Fastens panels, brackets, or trim to maintain correct alignment
• Can address rattling, vibration, or loose/misaligned parts where this screw is used
• Helps prevent wear from movement caused by missing or stripped hardware

• Unplug power and shut off utilities before service
• Note original screw location and orientation; replace like-for-like
• Do not overtighten—start by hand to avoid cross-threading
• Address threads before installing the new screw

The Insulation Shield is an OEM part for Whirlpool dishwashers. This insulation shield is responsible for reducing heat loss and noise during the dishwashing cycle.

Causes of a damaged insulation shield can be wear and tear over time, or potential warping or cracking of the insulation material.

Symptoms of a bad insulation shield include:

• Increased noise levels during operation
• Slow or inefficient heating of water
• Higher energy costs due to heat loss
• Dishes not getting fully clean or dry

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This stud is a small mounting fastener that provides a secure anchor point for attaching appliance components. Replacing a worn or missing stud restores a tight, aligned fit and helps prevent looseness, rattles, or shifting.

• Provides a fixed, threaded anchor for mounting a handle, bracket, or panel
• Helps keep parts aligned and secure during normal operation
• Common replacement for studs that are stripped, bent, broken, or missing
• Symptoms can include a loose or wobbly component, difficulty tightening, or visible damage/corrosion

• Disconnect power and, if applicable, shut off water or gas before servicing
• Wear cut-resistant gloves and handle panels carefully
• Hand-start threads to avoid cross-threading; tighten snugly without over-torquing
• Reinstall any covers or related hardware in their original positions

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Color: White. Screw for lower toe panel. For black screw use WP302868, for biscuit use 3400865.

Color: Black. Screw for lower toe panel. For Biscuit screw use 3400865, for white screw use WP3400836.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This is a replacement fastening nut used to secure appliance components and mounting hardware. It restores a solid connection so panels, brackets, or assemblies stay properly attached and function safely. What it does:

• Secures threaded shafts, studs, or bolts to hold parts in place
• Prevents loosening that can cause rattling, misalignment, or detached panels
• Restores proper mounting for brackets, trim pieces, and small assemblies
• Works wherever the correct threaded nut is required for a secure fit

• Turn off power to the appliance and unplug before servicing
• Hand-start threads to avoid cross-threading, then tighten with appropriate hand tool

This machine screw secures panels, brackets, and other components inside your appliance. Replacing a missing or damaged fastener restores a solid fit, reduces vibration and rattling, and helps keep assemblies properly aligned for reliable performance.

• 10-32 machine-thread fastener for mounting and securing internal parts and panels
• Helps maintain alignment and structural integrity of assembled components
• Replaces missing, stripped, or damaged hardware
• Reduces rattling, vibration, or loosening from worn fasteners

• Disconnect power; shut off gas or water supplies before servicing
• Match thread and length to the original fastener used in that location
• Start by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse original washers or clips if present and in good condition

The Nameplate is an OEM part for Whirlpool appliances. It serves as an identification label, typically displaying the brand name and model number, providing a clean and professional appearance for the appliance.

You should replace this nameplate if it becomes damaged or worn out. Common causes of a bad nameplate include wear and tear from regular cleaning, exposure to moisture or heat that can cause peeling or fading, and accidental impact that can lead to cracks or detachment.

Symptoms of a bad nameplate include:

• Fading or illegible text
• Peeling or detaching from the appliance surface
• Visible cracks or damage
• The nameplatae being completely missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This insulation pad installs in the factory location to isolate and cushion components or panels. It helps reduce vibration and limit unwanted heat transfer, supporting quieter operation and proper performance where the original pad was installed.

• Provides a thermal and acoustic barrier between parts or panels
• Helps minimize vibration and rattling noises
• Restores proper spacing/cushioning when the original pad is missing or deteriorated
• Replace if the pad is brittle, compressed, contaminated, or falling off
• Common signs include increased noise or rattles and localized hot spots or condensation

• Disconnect power (and gas/water, if applicable) before servicing
• Allow hot or cold surfaces to return to a safe temperature
• Note the original pad's location/orientation; remove old pad and clean the surface
• Install the new pad in the same spot without over-compressing; secure per the original method and verify clearances

A small metal clip that secures the appliance's ground wire to the chassis. Restores a reliable ground connection to reduce loose or arcing contacts and help prevent intermittent electrical faults. What it does:

• Secures the ground wire to the appliance frame to maintain a solid earth connection.
• Prevents a loose ground that can cause arcing, intermittent power issues, or visible sparking at the connection.
• Holds the wire in place through normal vibration and movement so terminals stay tight and stable.
• Replaces damaged, bent, or missing grounding fasteners to restore safe electrical continuity.

• Disconnect power at the breaker or unplug the appliance before inspecting or replacing the clip.
• Use proper hand tools to remove and reinstall the screw or fastener that holds the clip—do not overtighten.
• Ensure the ground wire is routed and stripped correctly; replace wiring if insulation or conductor is damaged.

Color: Black - Part has been changed to an Access Panel Kit - The toe panel is no longer used.

This control bracket secures the console or control housing to the appliance, keeping the control panel stable and properly aligned for reliable operation. Replaces a damaged or missing bracket to restore secure mounting and prevent panel movement. What it does:

• Mounts the control console to the appliance frame to prevent wobbling or sagging
• Keeps control buttons and switches aligned for consistent user operation
• Helps stop rattling or vibration noise caused by a loose control housing
• Supports wiring and components behind the console to reduce strain on connectors

• Always unplug the appliance or disconnect power before beginning service
• Remove the console or access panel per service instructions to reach mounting points
• Use appropriate screwdrivers or nut drivers; keep original hardware unless damaged
• Align bracket and tighten screws evenly; avoid overtightening to prevent stripping
