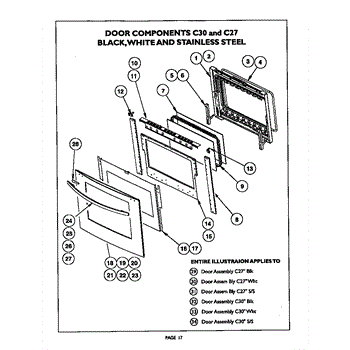

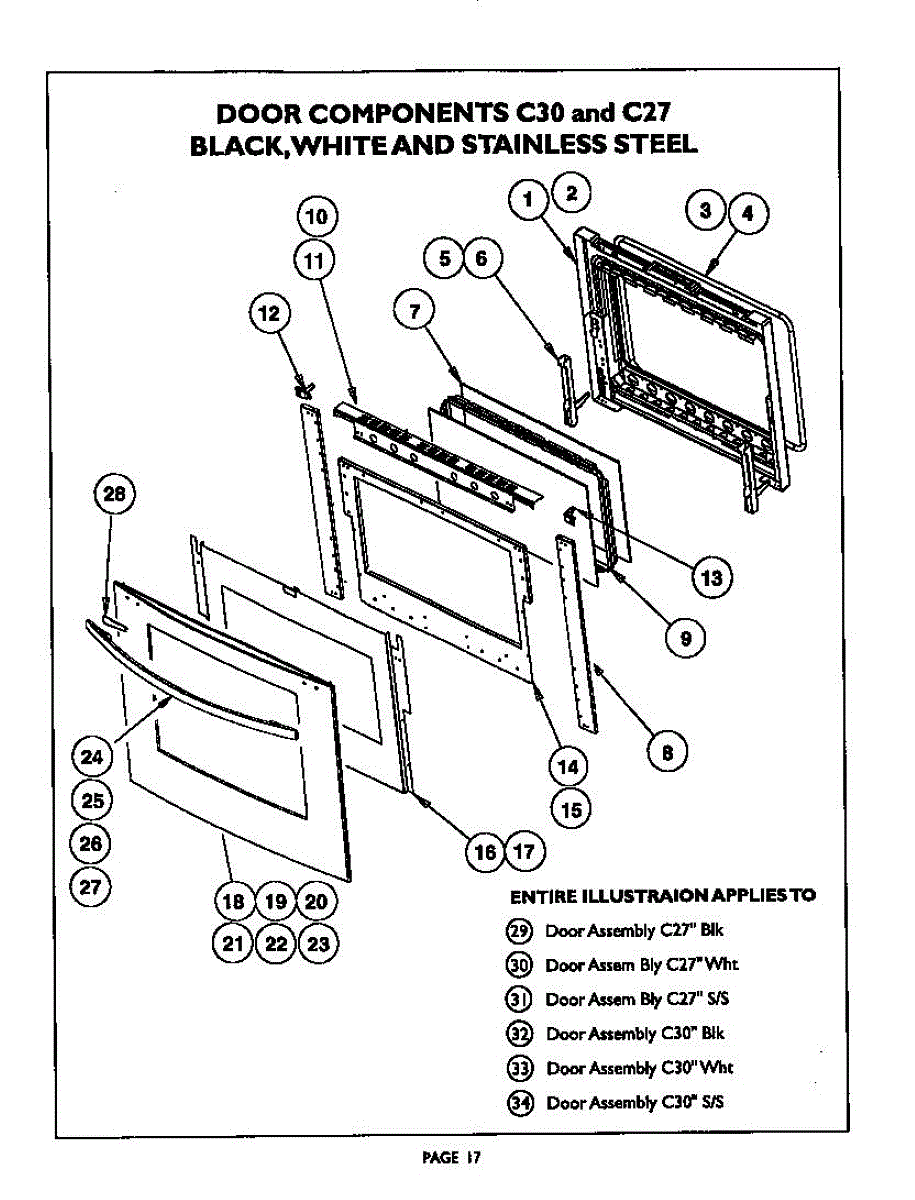

Parts for Thermador C302US: Door Components, C30 And C27 Parts

Inner door panel for electric wall ovens and ranges. Replaces cracked, damaged, or discolored interior door trim. Installs on the inside of the oven door.

This a Thermador oven door hinge.

Replacement inner glass panel for oven doors. Installs between door layers. Needed when original glass is cracked, chipped, or shattered from impact.

Inner window spacer for electric wall ovens. Installs between oven door glass panels. Replace if cracked, broken, or missing to maintain proper gap.

This left-side door end cap replaces the damaged or worn trim piece at the edge of the appliance door, restoring a finished appearance and helping keep the door seal and adjacent trim aligned. Fits the factory left-hand end position and matches original black finish. What it does:

• Covers and protects the outer edge of the door where the hinge/trim meets the panel
• Restores finished look and helps prevent dirt or moisture intrusion at the door edge
• Replaces cracked, broken or missing left-side end cap that can snag or catch
• Matches the original part shape and mounting points for a direct fit

• Intended for left-side door end position only; confirm left/right before ordering
• Basic trim removal and reinstallation required; keep fasteners and clips for reuse if possible
• Power off and unplug the appliance before performing any door repairs to avoid injury
• Inspect adjacent trim and fasteners during install; replace any damaged clips for secure fit

Black door insulation cover for 27-inch wall ovens. Replaces cracked, worn, or missing covers that expose door insulation and affect appearance.

This black door baffle is the replacement trim piece that restores the door's finished appearance and proper fit. It helps keep the door edge covered and maintains correct alignment for smooth opening and closing. What it does:

• Covers and protects the door edge for a clean, finished look
• Restores proper fit and alignment of the door assembly
• Reduces rattling or vibration caused by a loose or damaged baffle
• Helps keep debris out of the door cavity and hinge area

• One black door baffle

• Disconnect power and water before beginning any repair
• Installation typically requires removing the inner door panel or trim; retain fasteners for reassembly
• Handle panels carefully to avoid scratching the finish; align tabs before seating the baffle

This replacement door handle restores a secure, easy-grip opening for compatible appliances and keeps the exterior looking finished. Designed to match the original fit and appearance in black C27 size. What it does:

• Provides a solid grip to open and close the appliance door
• Replaces a cracked, loose, or cosmetically damaged handle
• Restores proper clearance and alignment for the door front
• Helps prevent accidental drops or slippage when opening

• Remove power or unplug appliance before starting any repair when applicable
• Use appropriate hand tools and keep fasteners for reuse unless replacement fasteners are supplied
• Handle mounting may require removing the door trim or screws—refer to your model-specific service instructions

Flexible conduit cable that protects electrical wiring in your oven. Replaces cracked, damaged, or worn conduit. Installs between junction box and unit.

A 1/2 in. 90° connector used to join the appliance water inlet to the household supply, restoring a secure right-angle connection and helping prevent kinks or strain at the hose junction. What it does:

• Creates a sealed right-angle connection between the appliance water inlet and supply line
• Restores proper water flow when the previous connector is damaged or leaking
• Reduces strain and hose kinking at the inlet fitting
• Commonly replaced to stop visible leaks or water drips at the connection

• Turn off the water supply and disconnect power to the appliance before installing
• Use appropriate thread sealant or tape where required by the appliance manufacturer
• Hand-start threads to avoid cross-threading; tighten with a wrench until snug — do not overtighten

This part has been discontinued by the manufacturer and is no longer available.

Phillips pan head mounting screw for cooktops and ranges. Replace this zinc-coated fastener if lost, stripped, or corroded during appliance repair.

Wire harness for wall oven lower door latch assembly. Connects latch mechanism to control system. Replace if wires are damaged, frayed, or connectors broken.

Fix a blank or flickering oven display with this display signal harness. Connects the control board to the display panel. Moderate DIY repair.

Communication signal wire harness for wall ovens and ranges. Connects control boards to transmit data signals. Replace if wires are frayed or damaged.

Wire harness that connects to your wall oven's door latch assembly. Replace if the harness is damaged, wires are frayed, or connectors are broken.
