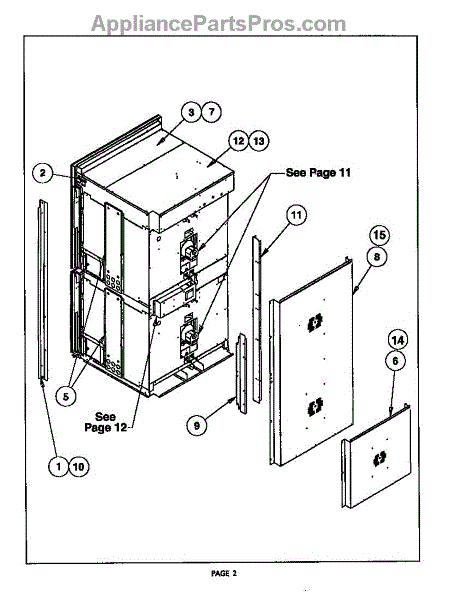

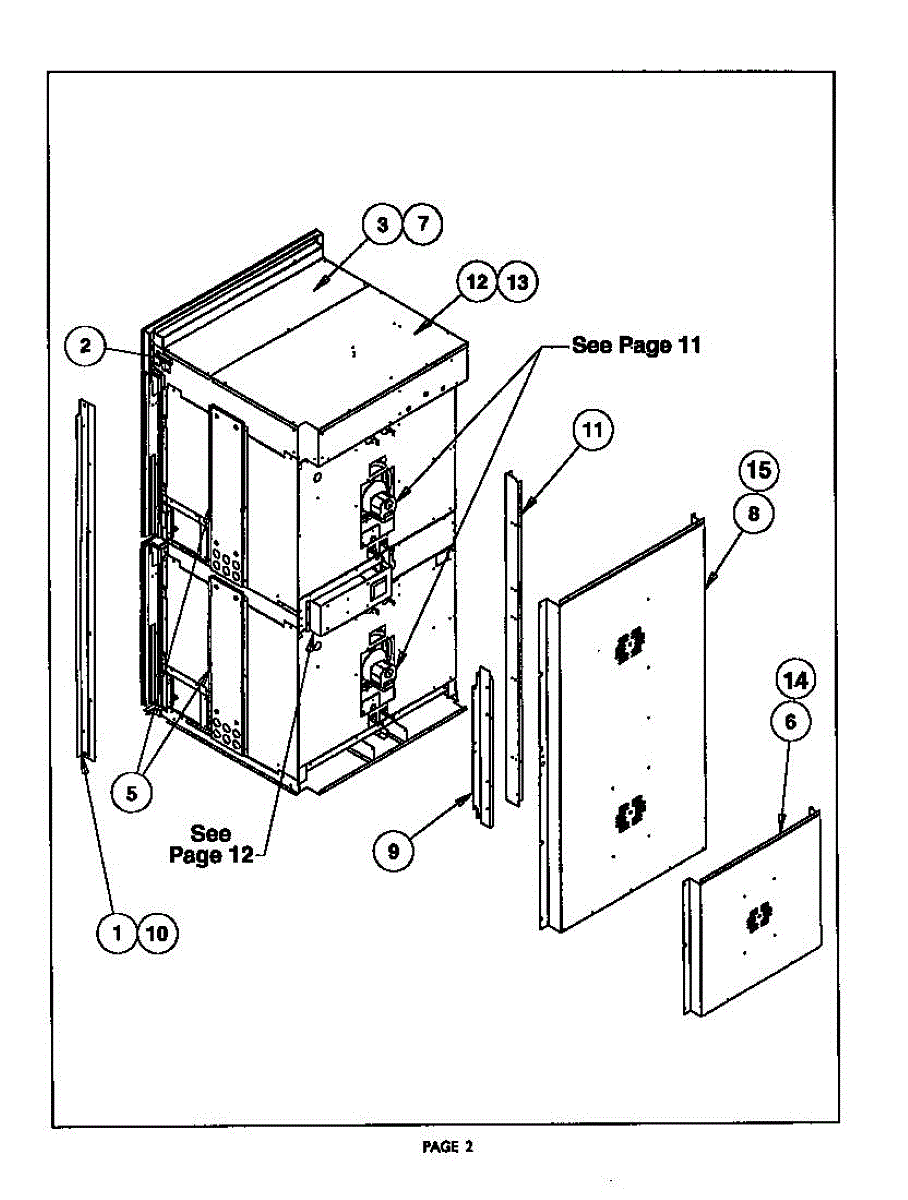

Parts for Thermador C302US: Oven Back Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Lower top cover panel for 30-inch wall ovens. Replaces cracked, damaged, or missing covers. Installs on top of lower oven compartment for a finished look.

This back cover protects the appliance's rear access area and helps keep wiring and components shielded from debris. It's a direct-replacement exterior panel that restores the unit's protective enclosure and appearance. What it does:

• Shields internal wiring and components at the appliance rear
• Helps prevent dust, spills, and debris from entering service areas
• Restores a secure rear enclosure after repair or panel removal
• Reduces snagging or accidental contact with internal parts

• Disconnect power and any water/gas supply before servicing
• Handle panel edges carefully; wear gloves to avoid cuts
• Reuse existing fasteners when present or replace with OEM-specified hardware
• Ensure full coverage

A 1/2 in. 90° connector used to join the appliance water inlet to the household supply, restoring a secure right-angle connection and helping prevent kinks or strain at the hose junction. What it does:

• Creates a sealed right-angle connection between the appliance water inlet and supply line
• Restores proper water flow when the previous connector is damaged or leaking
• Reduces strain and hose kinking at the inlet fitting
• Commonly replaced to stop visible leaks or water drips at the connection

• Turn off the water supply and disconnect power to the appliance before installing
• Use appropriate thread sealant or tape where required by the appliance manufacturer
• Hand-start threads to avoid cross-threading; tighten with a wrench until snug — do not overtighten

This part has been discontinued by the manufacturer and is no longer available.

Flexible conduit cable that protects electrical wiring in your oven. Replaces cracked, damaged, or worn conduit. Installs between junction box and unit.

Phillips pan head mounting screw for cooktops and ranges. Replace this zinc-coated fastener if lost, stripped, or corroded during appliance repair.

Wire harness for wall oven lower door latch assembly. Connects latch mechanism to control system. Replace if wires are damaged, frayed, or connectors broken.

Fix a blank or flickering oven display with this display signal harness. Connects the control board to the display panel. Moderate DIY repair.

Communication signal wire harness for wall ovens and ranges. Connects control boards to transmit data signals. Replace if wires are frayed or damaged.

Wire harness that connects to your wall oven's door latch assembly. Replace if the harness is damaged, wires are frayed, or connectors are broken.
