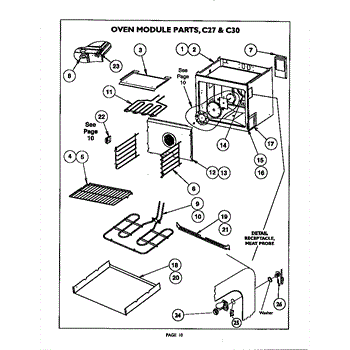

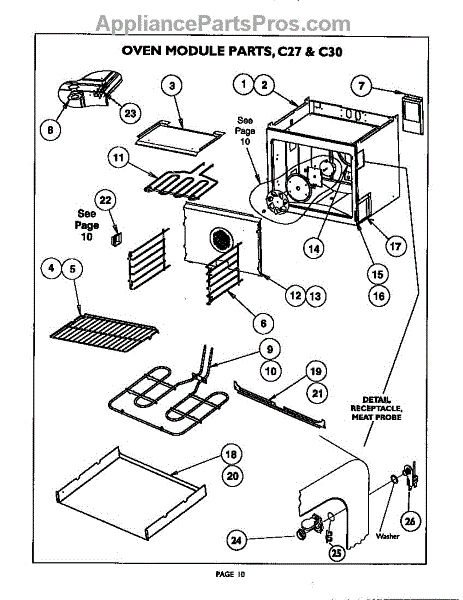

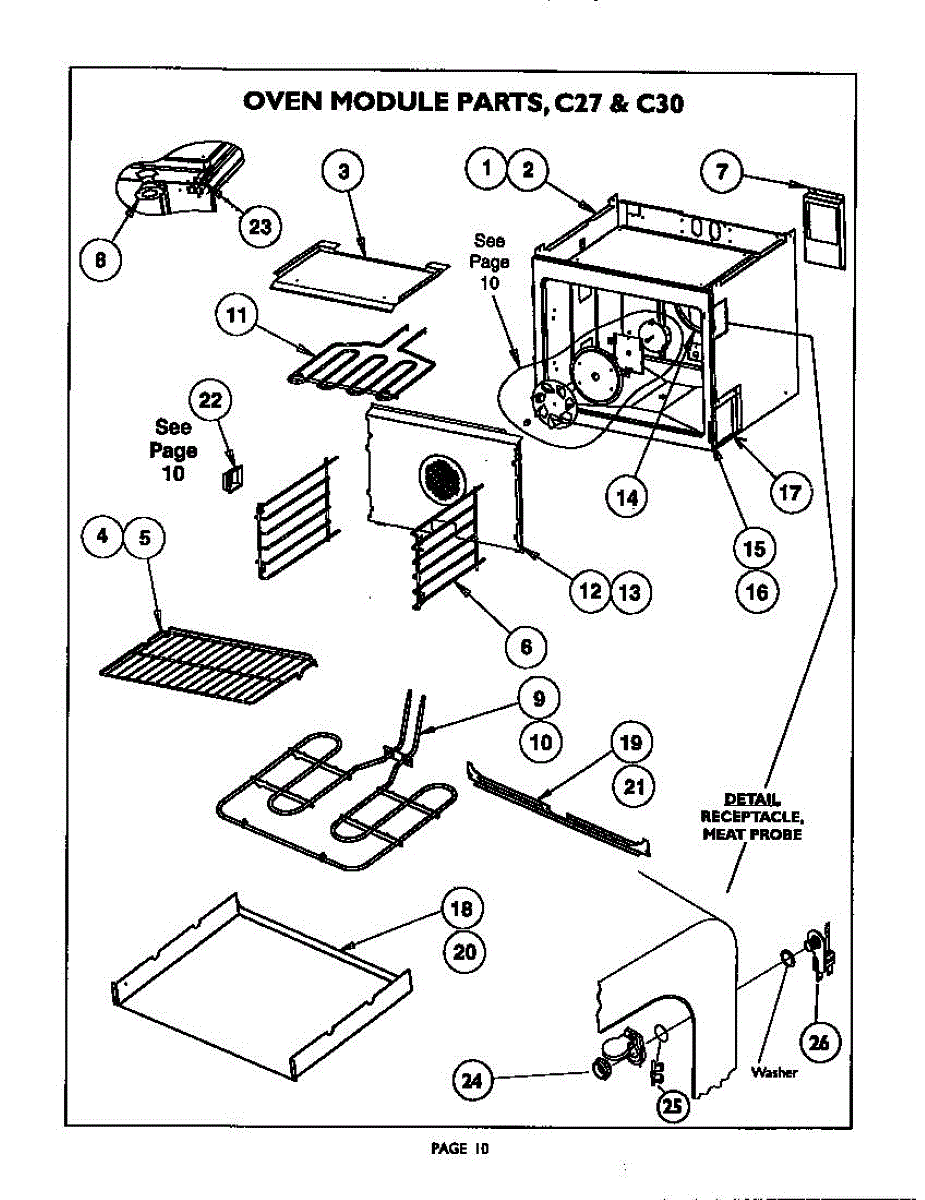

Parts for Thermador C302US: Oven Modules C27 And C30 Parts

This part has been discontinued by the manufacturer and is no longer available.

This catalyst is a dishwasher replacement component that helps maintain cleaning performance by promoting proper detergent action during the wash cycle. Use when cleaning results decline or persistent film/spotting appears after runs. What it does:

• Promotes the chemical action of detergent for more effective soil removal
• Helps reduce cloudy film, spots, and residue left on dishes
• Works as part of the dishwasher's wash system to support normal cleaning cycles
• Fits into the appliance at the factory-designated location and interfaces with existing components

• Disconnect power (and water supply if required) before starting service
• Handle part carefully and reinstall using the original mounting hardware
• Do not modify the part; use only as designed to ensure proper function

This tubular bake element is the lower heating element for electric ovens, restoring oven bake heat and even cooking performance. It replaces a damaged or non-heating element to get your oven back to regular baking temperature. What it does:

• Produces the primary radiant heat from the bottom of the oven for baking and roasting
• Common symptom: oven won't reach or hold set bake temperature
• Common symptom: visible breaks, blistering, or arcing on the element surface
• Common symptom: uneven baking or loss of heat from the bottom of the cavity

• One bake (lower) element

• Disconnect power at the breaker or unplug the range before any work
• Access typically requires removing the oven floor or lower access panel and unscrewing the element terminals
• Inspect wiring and terminal connections for heat damage; replace or repair as needed

This welded 30-inch convection baffle directs oven airflow for even heat distribution and stable convection performance. It restores correct air circulation so baked goods roast and bake more evenly and the fan runs quietly. What it does:

• Channels convection fan airflow across the oven cavity for consistent temperatures
• Helps prevent hot/cold spots that cause uneven baking or roasting
• Keeps the convection fan from contacting internal components and reduces vibration/rattling
• Restores designed airflow after damage, bending, or corrosion

• Disconnect power to the appliance before starting any work; follow lockout/tagout procedures if available
• Use gloves to avoid sharp sheet-metal edges and protect finishes
• Removal may require accessing the oven cavity or back panel and loosening fasteners; support any panels while removing/replacing the baffle
• Check alignment and fastener torque so the baffle does not contact the convection fan during operation

Restore fast, even convection cooking with this rear convection heating element. It supplies a ring of heat around the fan at the back of the oven so temperatures rise and hold properly in convection bake and roast modes.

• Provides heat around the convection fan for uniform air circulation and even results
• Common symptoms: no heat or very slow preheat in convection modes
• Fan runs but temperature does not rise in convection
• Visible damage or a break in the element

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely.
• Remove racks; access and remove the element's mounting screws from inside the oven (procedure varies by model).
• Pull the element forward carefully; label and transfer wires one at a time so they don't slip back into the cavity.
• Reuse existing hardware; ensure terminals are tight, reassemble, and test a convection cycle.

This socket is an electrical connector used to join wiring or plug-in components, restoring a secure connection for reliable appliance operation. It replaces a worn or damaged socket to help prevent intermittent power or component failure. What it does:

• Provides a secure electrical connection between wiring and the appliance component
• Restores proper contact when a loose, corroded, or broken socket causes intermittent operation
• Helps prevent arcing or poor connections that can lead to component failure
• Used where a plug-in or push-fit electrical connection is required

• One socket

• Disconnect power to the appliance before inspecting or replacing the socket
• Replace only with the exact socket type specified for your appliance

A 1/2 in. 90° connector used to join the appliance water inlet to the household supply, restoring a secure right-angle connection and helping prevent kinks or strain at the hose junction. What it does:

• Creates a sealed right-angle connection between the appliance water inlet and supply line
• Restores proper water flow when the previous connector is damaged or leaking
• Reduces strain and hose kinking at the inlet fitting
• Commonly replaced to stop visible leaks or water drips at the connection

• Turn off the water supply and disconnect power to the appliance before installing
• Use appropriate thread sealant or tape where required by the appliance manufacturer
• Hand-start threads to avoid cross-threading; tighten with a wrench until snug — do not overtighten

This part has been discontinued by the manufacturer and is no longer available.
