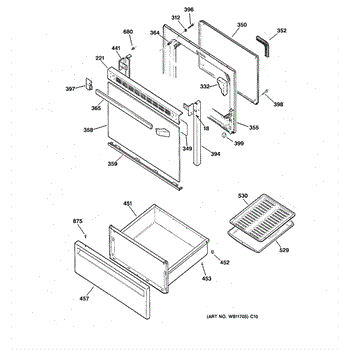

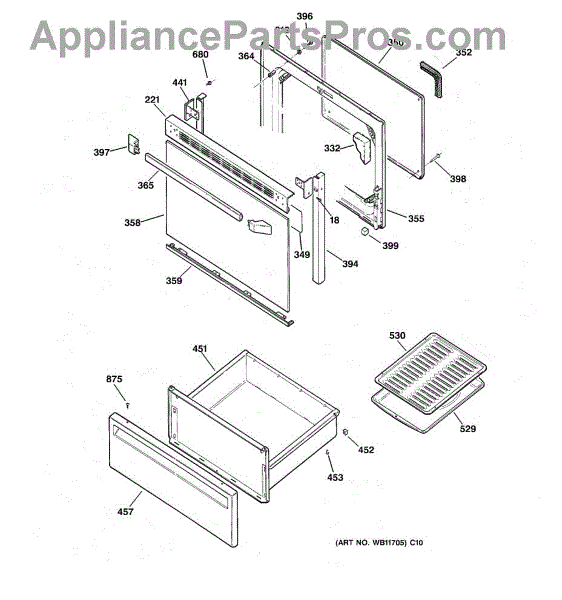

Parts for Ge JBP21WB1: 03 - Door & Drawer Parts

Includes 12 washers.

The Oven Door Gasket is an OEM replacement part for GE ranges and wall ovens. It provides a secure seal around the oven door to contain heat within the cooking cavity. The gasket is essential for efficient operation as it helps maintain optimal cooking temperatures.

Causes of a bad door gasket can include heat damage over time, warping from repeated door openings and closings, or accidental tears and ruptures.

Symptoms of a bad oven door gasket include:

• Excessive heat loss around the door area
• Inconsistent or inefficient cooking performance
• The door not sealing properly, allowing heat to escape
• Rust or corrosion on interior door parts

This OEM GE part is compatible with GE, Hotpoint, Monogram, and certain Kenmore wall oven models.

Outer oven door glass. Color: White

The Bottom Door Trim is an OEM part for GE ranges. It serves as a finishing touch, providing a seamless transition between the bottom of the oven door and the base or kick plate area.

Causes of a damaged Bottom Door Trim range from impacts during cleaning or moving the range, to general wear and tear over years of use. Exposure to high heat or spills can also contribute to the deterioration of the trim.

Symptoms of a bad Bottom Door Trim can include:

• Cracked or broken trim pieces
• Missing sections of trim
• Loose or misaligned trim
• Faded or discolored trim material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models

The Handle is an OEM part compatible with GE ovens and ranges. It is the component that allows you to open and close the oven door or range oven easily and securely. The handle measures 21 inches in length.

Over time, the handle can become loose, wobbly, or even detach due to repeated use or accidental impact. Causes of a bad handle include excessive force or mishandling, wear and tear on the mounting hardware, or simply aging and deterioration of the materials.

Symptoms of a faulty handle include:

• Loose or wobbly handle that feels unstable when operating
• Difficulty opening or closing the oven door smoothly
• Visible cracks, breaks, or damage to the handle itself
• Missing or loose mounting screws or brackets

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 10-16 Pl Pnt 2.5 S Screw is an OEM replacement part for GE ranges.

Causes of damaged or worn oven door screws include repeated exposure to high-temperature fluctuations during cooking cycles. This repeated heating and cooling puts repetitive stresses on fasteners over time.

Symptoms of bad oven door screws include:

• Loosened or detached door assemblies that will not seal properly
• Misaligned controls or glass panels suffering fitment issues
• Potential burns or cuts from accidental door detachment while in use

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Door Handle Endcap is an OEM part for GE ovens. This part serves as the finishing touch on either end of the oven door handle, providing not only a clean and polished look but also a secure connection point for the handle itself.

Signs that it's time to replace an oven door handle endcap include visible damage or cracks, the endcap becoming loose or detached, or difficulty in securing the oven door handle properly.

Symptoms of a bad Oven Door Handle Endcap include:

• The oven door handle feels loose or wobbly
• Visible damage to the endcap, such as cracks or breaks
• The endcap does not securely attach to the oven door or handle
• Difficulty in opening or closing the oven door due to a compromised handle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. This is the left side door endcap. For right side use WB7X7187.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style

Black. 8-18 AB HXW 3/8
